| Prod Model: |
jlf-SP-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
250 Liters |
| Collector: |
25 Heat Pipe Tube |
| Tube Size: |
58*1800mm or Optional |
| Package: |
Cartons with Foam |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CCC |
| Max. Capacity: |
250liters |
Product Description
Advantage:
Competitive price, good quality
CE,ISO9001,CCC certificate
5 years warranty
After sales solution

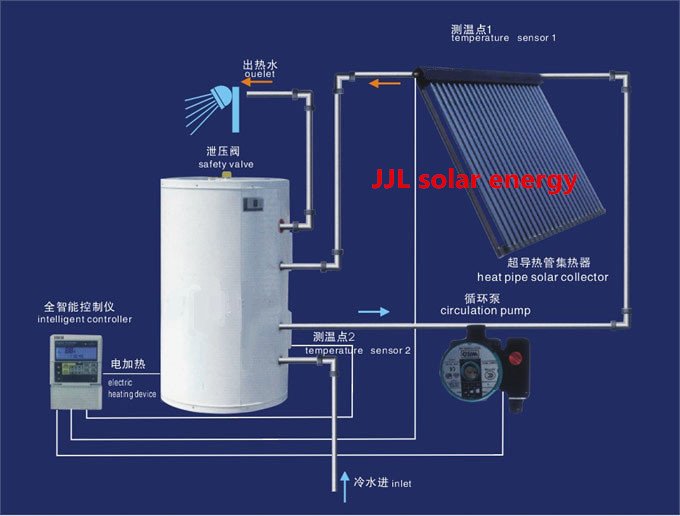

| Description | Split pressurized solar water heating system |
| Material of out manifold | 0.55mm thickness color steel |
| Material of inner tank | Food grade 1.5-2.0 mm thickness SUS304 stainless steel |
| Tank insulating layer | 55 mm 45kg/m³ high-density polyurethane foamed |
| Max pressure | 0.6 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96 (AM1.5) |
| Emission ratio | εh=0.04-0.06 (80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 2.0mm thickness aluminum alloy |
| Tank capacity | 250L |
| Solar collector | 58x1800x 25 tube solar collector |
| Item | Measured value |
| Heat conduction coefficient | >99% |
| Axial heat transition auantity | 0.93-2.49kw/cm² |
| Heat conduction speed | >200mm/s |
| Axial temperature difference | 1-2centi-degree/m |
| Starting temperature | 20centi-degree |
| Starting speed | 2min |
| Working temperature range | 30centi-degree~300centi-degree |
| Resistance to high temperature | No deformation in 48hours under 250C high temp condition |
| Resistance to low temperature | -35C |
| Life | >10year |
Working station component:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel
