| Prod Model: |
YJ-30P1.8-P58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tank Capacity: |
300L |
| Suitable For Person: |
5-8 |
| Max. Working Pressure: |
0.6mpa |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CCC |
Product Description

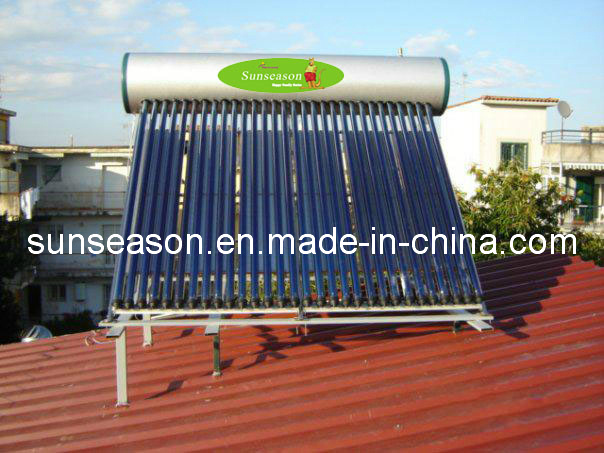

Advantages for compact pressurized solar water heaters:
1, The compact pressurized solar water heater system can endure the max pressure up to 0.6Mpa. As the system is pressurized, so it can keep a constant temperature of water in the tank;
2, Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction;
3, There is no water in the vacuum tube, so even if the vacuum tube broken, the system still works normally, without water leakage;
4, It can endure freezing -15 degree centigrade and 25mm hailstone;
5, For inner tank, we adopt high frequent melting technology. It can directly connect with tap water system. It can solve the low heat efficiency problem.
Working principle:
1. The pressurized water tank has no exhaust hole, therefore, it must bear the pressure coming from tap water and hot water.
2. When use, the hot water comes out because of water pressure, vacuum tube absorbs solar energy, and conductive copper pipe transfer the heat into the pressurized water tank.
3. In this case, the water inside the tank becomes hot. No water in the heat pipe makes the whole system can bear pressure.
|
Material of outer tank |
Color coated steel with 0.4mm thickness |
|
Material of inner tank |
Stainless steel 304/2B food grade with 1.2mm thickness |
|
Tank insulating layer |
with 50mm high pressure integral foaming made of imported polyurethane, 45 kg/m3 |
|
Frame |
Galvanized steel with 1.5mm thickness |
|
Fastening pieces |
Stainless steel screws |
|
Structure of tank |
Normally, it has holes: Magnesium bar, T/P valve, sensor hole, water inlet and outlet hole, electric heaterhole. Also, we can do as customer's requirements |
|
Diameter inner/outer tank |
370/470mm |
|
Tank Capacity |
150L, 200L, 250L, 300L, 360L |
|
Electrical Heater |
1500W/2500W/3000W, 220V or110V |
|
Inlet and outlet hole's size |
Male 1/2" or 3/4" |
|
Max working pressure |
0.6 Mpa |
|
Type of Vacuum tube |
borosilicate glass 3.3, Cu-S/S-AL/N absorb coating(Triple targets) orAL/N/AL(Single target) |
|
Thickness of vacuum tube |
1.6mm |
|
Heat-pipe size |
1700mm, Ø8mm |
|
Heat-pipe condenser size |
90mm, Ø14mm |
|
Δ T |
35C(Radiation> =800w/m2. day) |
|
vacuum tightness |
P≤ 0.005 Pa |
|
Absorption ratio |
as=0.93-0.96(AM1.5) |
|
Emission ratio |
ε h=0.04-0.06(80C± 5C) |
|
Idle sunning property parameters |
260-300 m², C/KW |
|
Average heat loss coefficient |
ULT=0.4~0.6W/(m2. C) |
Established in 2002, Shandong Sunseason New Energy Co., Ltd. is one of the earliest and biggest manufacturers in producing solar water heaters and other photovoltaic products. We are one of National High Technology and New Technology enterprises and one of the first AAA credible enterprises in solar industry.
Our 200, 000 square meters, ISO 9001: 2008-certified factory can produce up to 610, 000 units annually. Thirty-five QC officers with an average of five years' experience help ensure our high standards of quality. Our products have been approved by Solar Keymark, ISO9001, ISO14001, CCC, and CE.
We always put much emphasis on innovations and protections of intellectual property. We have different series of solar water heaters to satisfy various needs of customers. Take integrated non-pressure series, pressurized series and split series as samples, they are suitable for different areas and constructions. Furthermore, we make large solar water heating systems, the capacity can be from 1 Ton to 1000 Tons.
With the gradual exhaustion of non-renewable energy resources and increasing pressure of environmental contamination, the advantages of solar energy become more and more prominent. In order to create a harmonious, environment-friendly and energy-saving earth for our later generations, we will do our utmost to develop more solar products with high quality and efficiency.
Our company has networks throughout whole world, including European, South American, Africa and Asia. We accept OEM orders. Welcome both domestic and overseas clients to visit our factory and do business with us.
