| Prod Model: |
JJLSC-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
200L |
| Tube Qty: |
20 Heat Pipe Tubes |
| Coating: |
Aln/Aim-Ss/Cu |
| Tube Size: |
58*1800mm or Optional |
| Material Of Manifold: |
Aluminum Alloy |
| Frame: |
2.0mm Aluminum |
| Angle: |
20'-60' |
| Type: |
Pressurized |
| Application: |
Solar Thermal |
| Pipe Material: |
Glass |
Product Description

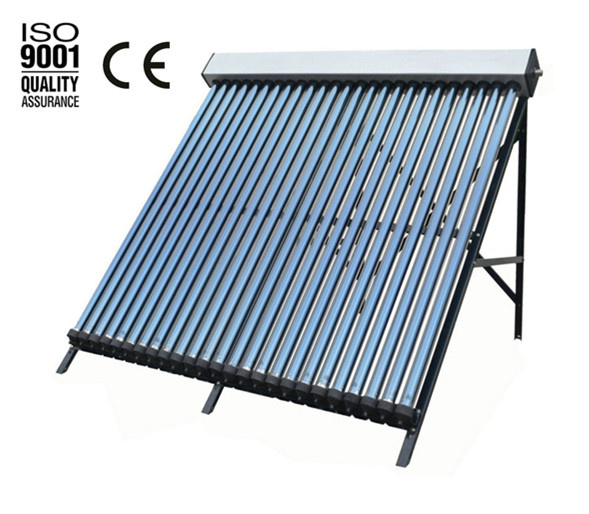

Evacuated Tube Solar Thermal Collector with 25 Heat Pipe Vacuum Tubes
Product Description:
Manifold
| Material | Aluminum alloy |
| Thickness | 2.0mm |
| Insulation | Rock wool; thickness:30mm |
Bracket
| Material | Aluminum alloy; thickness:2.0mm |
| Angle | Other |
Vacuum tube
| Tube structure | All-glass double deck co-axial structure |
| Glass material | High borosilicate 3.3 glass |
| Size | 58×1800mm |
| Glass thickness | 1.6 ± 0.15mm |
| Coating material | CU/SS-ALN(H)/SS-ALN(L)/ALN |
| Sediment method | Three Target magnetron sputtering plating |
| Absorption | as=0.92~0.96 (Am=1.5) |
| Emission ratio | ε=0.04~0.06(80ºC±5ºC) |
| Vacuum degree | p≤5.0×10-3(PA) |
| Average heat loss | ULT 0.4~0.6 W/(m2 *ºC) |
| Hail resistance | Φ25mm |
| Pressure-endure | 1MPa |
Heat pipe
| Matrial | Red copper |
| Length | 1800mm |
| Thickness | Top: 1.0mm; body: 0.75mm |
| Diameter | Top: 16mm; body: 8mm |
| Packing | Export carton with full foams |
| Certification | Solar Keymark, CE, ISO9001, ISO14001, CCC, SGS |
Packaging:standard export cartons
Shipping:
1. Loading port:Shanghai, Ningbo
2. Sea transport for bulk order, Air transport and Courier Service for sample order
3. EXW,FOB,CIF all accepted
Applications,
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
