| Prod Model: |
JJL-CFP-BC200 |
| Capacity: |
200L |
| Inner Tank: |
1.2-1.5mm SUS304 Stainless Steel |
| Outer Tank: |
0.4mm Color Steel |
| Panel: |
Blue Coating |
| Panel Quantity: |
2 PCS |
| Angle: |
20'/45' |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Flat-plate |
| Composition: |
Collector |
| Certification: |
ISO14001 |
Product Description

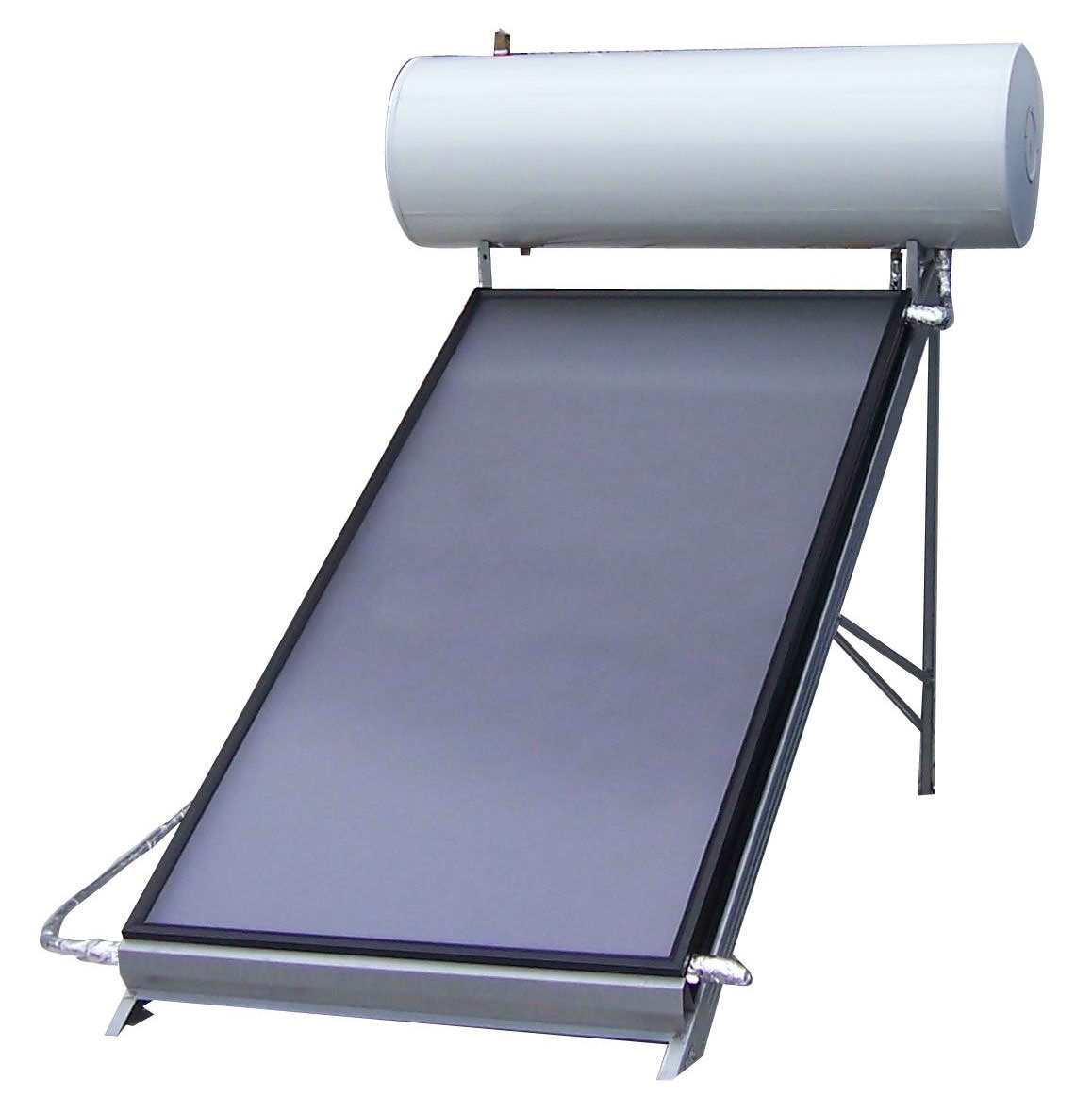

200L flat plate solar water heater, solar panel water heating system for home
Technical Data:
| Dimension(L*W*H)mm | 2000*1000*80 |
| Efficiency area(m2) | 1.88 |
| Thermal efficiency(ηa0) | 0.82 |
| Max.working pressure | 1.2Mpa |
| Resistance to freezing | >=-40ºC |
| Cover material: | 3.2mm thickness ultra white fabric surface tempered glass, transmission>92% |
| Surface treatment | Sputtering coating(blue coating) |
| Absorption:>95%; Emissivity :<5% |
| Construction type | Whole board,ultrasonic welding |
| Header material and tube size(mm) | Copper Tp2 ,Φ22*0.6 2pcs |
| Riser material and tube size(mm) | Copper Tp2, Φ10*1890*0.5 6pcs |
| Fill capacity | 1.8L Including Header Pipes |
| Insulation material: | Rear: Glass fiber cotton 30mm |
| Side: Ethylene strip 25mm |
| Conductivity(W/mk) | 30mm(back);25mm(side) |
| Frame | Aluminum,1.3mm thickness |
| Leak-proof material: | Dedicated leather thong |
Characteristics:
Flat Panel Solar Water Heater is a tank of roof-mounted system,using the thermosiphon principle to transfer heat from collector to water inside tank. The thermosiphon coating:selective absorb coating and hot water rises. The collectors are coated with a heat-absorbent surface which absorbs the sun rays and heats the fluid in the collector. As the fluid heated,it rise the top of the collector panel and into the tank where it displaces cooler fluid which flows in to the bottom of the collector panel where the process is repeated.
The more temperature difference between the fluid in the collector panel and water in the tank,the faster flowing and heat exchanging.
