| Prod Model: |
CPH-58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description
Pre-Heated Solar Water Heater System with Copper Coil 1,Working Principle of Pre Heated Compact Pressurized Copper Coil Solar Water Heater :
1. Vacuum tube absorb heat energy to heat the water in storage tank
2.Copper coil is installed in the water tank as the heat exchanger
3. The water tank acts as a thermal source
4. When water flows into the copper coil, it absorbs heats from water in the water tank.
2,Pre Heated Compact Pressurized Copper Coil Solar Water Heater Features1, Cheap and reliable hot water solution
2, Simple structure, easy to assemble and install.
3, Strong wind, snow and hailstone resistant ability
4,
Fresh water, as you don't use the water inside of storage tank, you always have fresh water.
5, The
pressurized hot water will make your bath more comfortable.
3. Solar Water Heater Combined with House

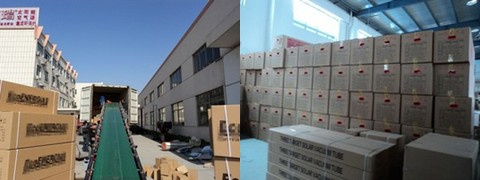

4. Solar Water Heater Loading and Package
SOLAR WATER HEATER Package details: poly bag wrapped, Styrofoam underlay, export carton packed.
5. Solar Water Heater CAPACITY and LOADING QUANTITY GUIDE(20'GP container, 40'GP container, 40'HQ container)
| Model | Tube Specification | Capacity | Loading quantity |
| 20'GP | 40'GP | 40'HQ |
| (Liter) | (Sets) | (Sets) | (Sets) |
| CPH-58-18 | Φ58mm*1800mm | 180 | 45 | 94 | 110 |
| CPH-58-20 | Φ58mm*1800mm | 200 | 41 | 85 | 100 |
| CPH-58-24 | Φ58mm*1800mm | 240 | 36 | 75 | 88 |
| CPH-58-30 | Φ58mm*1800mm | 300 | 28 | 59 | 70 |
| CPH-58-32 | Φ58mm*1800mm | 320 | 27 | 56 | 66 |
| CPH-58-34 | Φ58mm*1800mm | 340 | 25 | 53 | 62 |
| CPH-58-36 | Φ58mm*1800mm | 360 | 24 | 50 | 59 |
| Technical parameter of Compact Pressurized Copper Coil Solar Water Heater |
| DESCRIPTION | Pre-Heated pressurized solar water heater system |
| CAPACITY(TUBES-LITER) | From 18tubes-180L to 50tubes-500L |
| Copper Coiler in Tank | 20-50meter, 1.0mm red copper |
| SOLAR WATER HEATER OUTER TANK | 0.4mm galvanized steel/0.4mm sus304 stainless steel /0.4mm sus304-ba(bright) |
| SOLAR WATER HEATER INNER TANK | 0.4mm/0.5mm/0.6mm sus304-2b stainless steel or sus316 stainless steeel |
| TANK INSULATING LAYER | 50-60mm high-density polyurethane foamed |
| DIAMETER OUTER/INNER TANK | 420/310mm 460/360mm 470/360mm 480/360mm |
| ELECTRICAL HEATER | 1500w/2500w/3000w; 220v/110v |
| INLET AND OUTLET HOLE | Male 1/2", 3/4" |
| MAX PRESSURE | 0.05Mpa of Vacuum Tube, the copper coiler can connect to tap water directly |
| SOLAR COLLECTOR TUBE | 3.3 borosilicate glass with AL/AL-ALN/ALN(single target) or CU/SS-ALN/ALN(three target) |
| THICKNESS OF GLASS TUBE | 1.6mm |
| VACUUM TUBETIGHTNESS | P≤0.005 pa |
| ABSORPTION | As=0.93-0.96(am1.5) |
| EMISSION RATIO | Ε h=0.04-0.06(80c± 5c) |
| IDLE SUNNING PROPERTY PARAMETERS | Y=220~260m². C/kw |
| AVERAGE HEAT LOSS COEFFICIENT | Ult=0.6~0.7w/(m2. c) |
| BRACKET: | 1.2mm Stainless steel/1.6mm aluminum alloy/1.5mm galvanized steel |
| STRUCTURE OF TANK: | Usually holes for air vent, overflow, water inlet and outlet, electric heater; custom-built will be warmly welcomed. |
| WELDING: | Automatic argon arc welding |
| FASTENING PIECES: | Stainless steel screw |
| SEAL MATERIAL | Stabilized high temperature silicon |
| OPTION-1(WITHOUT ELECTRICAL HEATER): | Assistant tank 3L, 5L, 8L,12L,30L,50L as a automatic watering part. |
| OPTION-2(WITH ELECTRICAL HEATER): | Electrical heater as extra built-in heating part, controller control the system watering and heating automatically
|
Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
