| Prod Model: |
smart card |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Identification, Payment, Encrypt/Decrypt, Information, Lock |
| Material: |
PVC |
| Frequency: |
Ultrahigh Frequency |
| Type: |
Manufacturer |
| Certification: |
ISO |
| Brand: |
Seaory |
Product Description

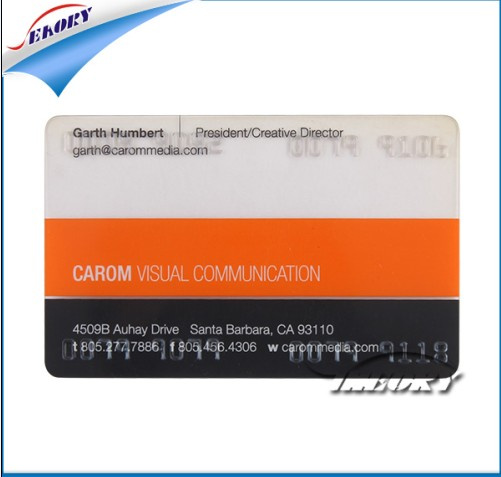

Prepaid Phone Card/Smart Card
Is primarily used access control or in payment in closed systems as fixed value tickets (e. G. Weekly or monthly travel passes) or as tickets where value is extracted from the card by the service provider.
Technical features:
1 kbyte EEPROM (768 Byte free available)
Embedded Antenna
MIFARE® 13.56 MHz ISO14443 A
The range of operation is approximately from 3 cm to 8cm
Unique serial number (4 Byte)
16 securely separated sectors supporting multi-application
Each sector consists 4 blocks with a length of 16 Byte
2 X 48 bit keys per sector for key hierarchy
Access conditions free configurable based on 2 level key hierarchy
Number of single write operations: 100.000
Data retention: 10 years
Chinese Fudan 1K FM1108 card is compatible Original NXP Mifare 1K S50 card.
The price is more favorable.
Free samples available for testing.
IC Cards Specifications:
Dimensios: L86 × W54 × T0.8 (+/- 0.04)mm
L80 × W120 × T1.0 (+/- 0.04)mm
L70 × W100 × T1.0 (+/- 0.04)mm
Weight: 5.8g+/-0.5g
Standard Color: White
Printing Method: Offset Printing, Silkscreen Printing
Silver, Gold, Bronze Glittering Effect, UV Printing
Number Printing Options: Ink Jet Number, Embossing Number
Thermal Transfer Number, Laser Number
Material Options: PVC, PET, ABS, Paper
Surface Options: Glossy, Matte
Magnetic Stripe Options: Loco 300Oe, 350Oe
Hico 650Oe, 2750Oe, 4000Oe
Other Available Options: Chip Encoding, Barcode Printing
Signature Panel, Hole Punching
TRW Thermo Rewrite Foil
Hole Punching, Lanyard Slot
Ballpoint pen Writable / Stamp writable Foil
125kHz Chips: EM4100 / H4100 / TK4100 / SMC 4001
EM4102 / H4102, EM4200
EM4205, EM4305, EM4450, EM4550
T5557 / T5567 / ATA5567 / ATA5577
Hitag1, Hitag2, HitagS
13.56MHz Chips: LEGIC MIM 256, LEGIC MIM 1024, LEGAT2048
MIFARE 1K S50 / MF1 S50, MIFARE 4K S70 / MF1 S70
MIFARE PLUS S 2K, MIFARE PLUS S 4K, MIFARE S20
MIFARE ULTRALIGHT, MIFARE ULTRALIGHT C
MIFARE DESFire, MIFARE DESFire EV1 8K (MF3 IC D81)
MIFARE DESFire EV1 4K (MF3 IC D40)
MIFARE DESFire EV1 4K (MF3 IC D41)
MIFARE 1K-Compatible / FUDAN 1K / TKS50
I. CODE SLI SI2 / I. CODE 2, I. CODE 1, LRIS2K, LRI64
Tag-IT Ti2048, Tag-IT Ti256
INSIDE Picopass 32KS, INSIDE Picopass 2K
ST SR176, SRI512, SRIS4K
868MHz / 915MHz Chips: NXP UCODE HSL, NXP UCODE EPC Gen 2,
UCODE GEN2 XL, UCODE GEN2 XM,
XRA000, XRA Gen 2, ATA5590
ALIEN ALN-9540 / 9662 Squiggle,
UCODE GEN2 XL, UCODE GEN2 XM
NXP UCODE EPC V1.19, Impinj Monza Gen2
EM4324, EM4444, EM4033, EM 4133
Key applicationsPublic transportation
Access management
Event ticketing
Gaming
Identity
Sample Availability: Free samples are available upon request.
Stock Availability: Large quantities of the best-selling products are normally available in stock and can be shipped immediately.
Packing Details: 1PC/OPP, 200 pieces per box, 2000 pieces per carton.
Carton Size: 33*25*13CM / 14kg per carton.
High quality control, factory price, fast delivery, good service.
Your inquiry is highly appreciated! HOT CELL: 86-15220217968
| Card Specifications |
| Card type | RFID card/smart card/contact IC card/magstrip card/ID card |
| Material: | PVC/PAPER/ABS/PET/PS/Anti-metal Absorbing Material/Epoxy/Silicone |
| Size: | ISO CR80 Standard:85.5*54mm, or customized |
| Thickness: | PVC card standard: 0.76mm
RFID card standard: 0.86mm
Contact IC card Standard: 0.81mm,
0.3mm~1.8mm according to your request |
| Chips and frequency | LF(125KHz) | ISO 125KHz ,TK4100/EM4100/EM4102/EM4200,EM4305,
T5577/T5567/T5557 rfid proximity cards |
| HF(13.56MHz) | ISO 14443A:
classic 1k , 4k, FM08, Ultralight, Ultralight C,Ntag203,
DESFire EV1 2k/4k/8k |
ISO15693:
I CODE 2, I CODE SLI, I CODE SLI-X, Tag-IT TI2048 / TI256. |
| UHF (860z-960MHz) | ISO18000-6B: UCODE HSL |
| ISO18000-6C: Alien H2/H3,Impinj,U CODE G2 |
| Write cycle | 100000 time |
| Reading distance | LH,HF(1-10cm) | Up to the antenna, environment, size, material etc. |
| UHF(above 3 m) |
| Crafts | CMYK offset printing, Silk-screen printing,Thermal printing, Digit printing, Magnetic stripe. |
Barcode/QR code, Golden/silver hot-stamping, Signature panel, Series number printing,
UV printing, UID number printing, laser engrave, QR code etc. |
| Glossy, Matt, Frosted finish,Transparent |
| Applications | Public transportation ( Metro card, Bus IC card etc.) |
| Access management |
| Event ticketing |
| Gaming |
| Security and Identification |
| Packing | For standard card(85.5*54*0.86mm):
inner box:215×90×55mm (200pcs/box),carton: 485×230×305mm( 25boxes/CTN)
Standard size card weight (only for reference) : 1,000pcs is for 6kg |
| Packing way can according to your request |
| Samples | Free samples are available upon request |
SHENZHEN SEAORY TECHNOLOGY Co., Ltd is a hi-tech company dedicated to smart card field since 2002. We are specialized in manufacturing, researching, developing and selling of smart card, personalization card printer and smart card application system.
Our Kiosk factory was built on 2005, Now Seaory is the leading manufacturer that specializing in researching, designing, manufacturing, and providing a complete solution for self-service Kiosks.
We provide customized kiosk solutions for various industries including banking, telecom and transportation. We have rich experience in terminal, electronics, telecommunication, and financial equipment production.
We produce PVC card, magnetic strip card, contact Memory/CPU IC card, contactless Memory/CPU IC card and dual interface CPU IC card. All the production process and quality control of cards meet ISO requirements, as well as the standards from international credit card groups, like VISA, MasterCard, China Union etc. The cards are widely used in the field of financial, transportation, postal, telecom, education, security, commercial, utility and enterprises.
For personalization card printer, besides our own brand "SEAORY", we are the agent of HiTi in China, also the distributor of DataCard, DIS, Zebra and Evolis.
Our Kiosk products have passed CE, CCC, FCC, RoHS and other international tests and certifications. Our team with rich experience in kiosk industry and global delivery.
75% of our engineer and technical staff with more than 8 year of experience in the kiosk field. Experienced with different kinds of kiosk project including United States and European market. Our team is ready to provide solution and OEM/ODM service to the new intelligent world.
We keep improving, innovating and pursuing "High Quality, Perfect Service" all the time. Hope to grow up with you together!
Our History:
2002, company founded
2003, set up the smart card factory
2003 to 2005, we' Re successful in domestic market and cooperated with many banks, groups and institutions
2005, set up Overseas Department to expand our business in the international market
2006, registered Beijing branch officially
2007, we were authorized ISO9001 certificate and production license of industrial products
2008, set up Shanghai office and Hongkong branch
2011, set up Dongguan Theory Smart Technology Co. Ltd
2012, built new facilities for Dongguan Theory
2012, launched our own brand SEAORY card printer into market successfully
