| Prod Model: |
OBT-8280 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
100V |
| Style: |
Handheld Microphone |
| Application: |
Meeting |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Bi-direction |
| Transducer Principle: |
Semiconductor Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Pressure Differential Type |
Product Description

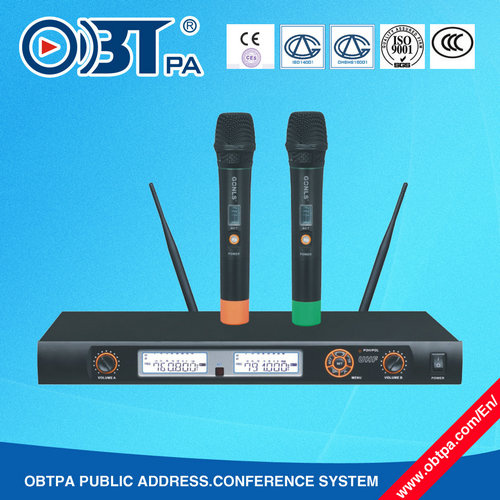

prefessional wireless microphone
Specification:
Professional Wireless Microphone
Audio frequency response:80HZ-12500Hz
Dynamic Range:>=80Db
System Distortion Degree:-1%
Signal-noise ratio:>=80Db
Usage distance: about 50M
Operating temperature range: 5°C-40°C
Signal carrier frequency range: 180-280MHz
Receiver:
Frequency stability: ±0.005%
Signal carrier power consumption: -30Mw
Spurious Rejection: >40Db
Modulation mode: FM
Maximum modulation range: ±50KHz
Microphone Mode: moving-coil
Pre-emphasis: 50µS
Power: 9V battery
Power consumption: <30Ma
Dimension: 55*250mm
Weight: 240g(without battery)
Transmitter:
Receiving sensitivity: 8µv
Image Rejection: >50Db
De-emphasis: 50µs
Audio output resistance: 600ohm±10%
Audio output electrical level: 0-0.5V
Power supply: AC220V (9V 100mA)
Power consumption: -300Ma
Dimension: 490*250*55mm
Weight: 3500g
Lead time
Sample: In stock
Mass production: 5 working days
Service:
Good Service:
1. Professional sales reply you enquiry in 24Hrs
2. Feedback of complaint in 24Hrs
3. OEM/ODM are welcomed
4. 2 years Warranty
Warranty:
1. All products have been strictly Quality Checked before packing.
2. All products have been well packed before shipping.
3. All products with 2 years warranty.
After Sales Service:
1. We are always online to solve all your request.
2. Any faulty product, we can send replacement to you freely
3. To ensure your receive the order tax free upon import, we are willing to declare lower value.
We are the Manufacturer of pa system for 13 years. Also provide ceiling speaker, horn speaker, column speaker, wall mounted speaker, volume controller, ip network poe speaker, amplifer and other accesories.
Warmly welcome your inquiry to know more about our product.
Shenzen OBTPA Technology Co., Ltd is a collecton Research and Development, production, sales, public addess series products of the high-tech industry type company, which was located at Shenzhen, Guangdong. Since the company was founded in 1999, adhering to the consant innovation and creat value for the customer.
