| Prod Model: |
JJL |
| Product: |
Pre-Heated Solar Water Heater(Pressurized) |
| Solar Water Heater Inner Tank: |
SUS304, SUS316, 0.4mm |
| Solar Water Heater Outer Tank: |
Galvanized/Color, Powder Coated, Stainless |
| Accessories For Opition: |
Assistant Tank, Magnesium Rod, Solar Controller |
| Tank Capacity Opition: |
100L, 120L, 150L, 180L, 200L, 250L, 300L, 360L |
| Solar Stand/Bracket/Support Material: |
Galvanized/Powder Coated /Aluminium/SUS201/SUS304 |
| Copper Coil Length: |
24m, 30m, 35m, 40m |
| Max. Capacity: |
>200L |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

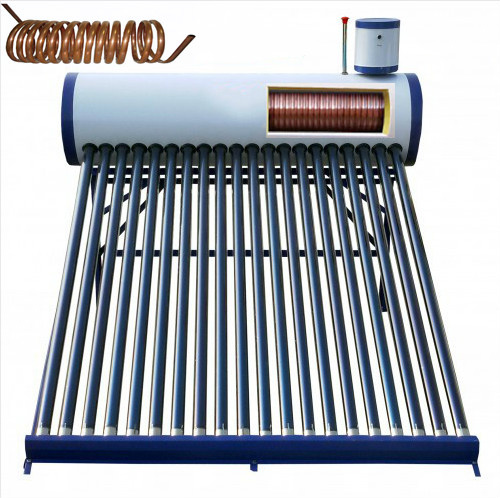

pre-heated solar water heater(pressurized)
We manufacturer of solar water heater more then 15years in China.
Main products:non pressure solar water heater,high pressure solar water heater,prea-heated solar water heater,heat exchange solar water heater,heat pipe solar collector,non pressure solar collector,solar manifold,split solar water system etc.
Solar water heaters, solar energy water heaters
Features:
1) Stable and reliable performance and well wind resistance
2) Vacuum heat-collecting tubes at high temperature
3) Dual-purpose brackets for both flat and inclined roof
4) Meeting the demand of well-to-do families
5) Economical goods
Specifications:
1) Thickness of bracket: 1.5mm
2) Vacuum tube: 58 mm x 1.8m (18 to 36 tubes)
3) Inner tank: SUS304-2B food grade stainless steel
4) Outer tank: Steel (spray-paint and looks like Chinapaint)
5)Copper Coil: 20m to 30m diameter 12 red copper
6) Capacity: 180L to 360L
7) Insulating layer thickness: 55 - 60mm
8) Inner tank thickness of: 0.4 - 0.5mm
9) Tank diameter: 460mm
10) Pressure tank: 0.3MPa
11) Pressure coil: 0.6Mpa
12) Heat preservation: 72hrs
13) Hail resistance: 25mm
Heat Exchange Solar Water Heater Model:
| Model | Tube QTY | Tube Size | 20'GP | 40'GP | 40'HQ |
| JCN-PC100L | 10 | 58×1800MM | 66 | 138 | 174 |
| JCN-PC120L | 12 | 58×1800MM | 55 | 114 | 144 |
| JCN-PC150L | 15 | 58×1800MM | 44 | 91 | 115 |
| JCN-PC180L | 18 | 58×1800MM | 37 | 78 | 98 |
| JCN-PC200L | 20 | 58×1800MM | 35 | 72 | 91 |
| JCN-PC240L | 24 | 58×1800MM | 29 | 60 | 76 |
| JCN-PC300L | 30 | 58×1800MM | 23 | 49 | 62 |
| JCN-PC360L | 36 | 58×1800MM | 20 | 41 | 52 |
