| Prod Model: |

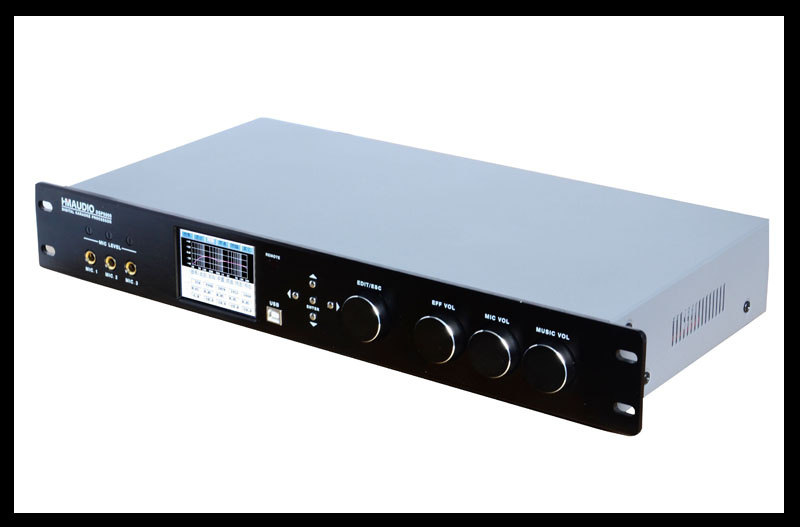

DSP9600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features:
1. 3.2`` 65.5K-pixel color LCD display processor.
2. In English & Chinese are optional for this processor.
3. With AES digital audio input support.
3. 255MHz, 96kHz sampling rate, 24 bit AD/DA conversion. 32 bit DSP chip processor;
4. PC device with professional to control operation. Provide USB prot for the prcoessor.
5. The processor front with manual sound chose Input, 4 super screaming inhibit function keys F. B - EX (loop is repeated buttons)
6. This processor has 5 kinds of vocal Eff. Model for user, can be loop call-out, each modes can be adjust parameter.
7. 21 memory functions, of 10 preset & 10 ' self eff, all parameters to AUTO save
8. Each input of this processor has H/L cut, 7 band EQ.
9. Processor output channelh as 4 balance & unbalance, can be flexible with the power op-AMP (When the MIC into the output, Auto-cut disco & songing. Signal AUTO attenuation, proportion is adjustable)
10. Each input & output of the processor has freq, 6 band EQ, limiter, sound chose, Mix rate gain delay etc. K field applicable.
|
Technical Parameter |
|
Items |
Parameter |
Test |
|
Output channel |
main output(L/R) |
√ |
|
|
Center |
√ |
|
SUB |
√ |
|
Surround L/R |
√ |
|
(dB)S/N |
MIC |
85dB |
1KHz OdB input |
|
MUSIC |
100dB |
|
THD |
MIC |
0.01% |
1KHz OdB |
|
MUSIC |
0.01% |
input |
|
MAX Input Level |
MIC |
250mv |
1KHz |
|
MUSIC |
6V |
input |
|
MAX Input Level |
MIC |
10Vrms |
1KHz |
|
MUSIC |
10Vrms |
input |
|
Sensitivity |
MIC |
15mV |
|
MUSIC |
300mv |
|
(Ω ) |
MIC |
10K unbalance |
|
Input impedance |
MUSIC |
47K unbalance |
|
(Ω ) Output impedance |
300 balance, 1K unbalance |
|
Channel resolution |
85dB |
|
Feed back inhibition |
4 level F. B |
|
Display Screen |
3.2``65.5K-pixel color LCD display |
|
Processor |
255MHz, 96KHz sampling rate, 24 bit AD/DA conversion. 32 bit DSP chip processor; |
|
Channel Parameter |
MIC Input |
7 Band PEQ+LPF+HPF, FREQ: 20Hz-20000Hz 239 Total: 239 point
Band width: 0.05oct-3oct, step : 0.05oct Gain: ± 20dB |
MUSIC Input |
7 Band PEQ+LPF+HPF, FREQ: 20Hz-20000Hz Total: 239 point
Band width: 0.05oct-3oct, step : 0.05oct Gain: ± 20dB |
|
L/R Main output |
Mix+Polar+15 Band PEQ+LPF+HPF+Limiter+Delay+Gain |
|
Center |
Mix+Polar+5 Band PEQ+LPF+HPF+Limiter+Delay+Gain |
|
SUB |
Mix+Polar+5 Band PEQ+LPF+HPF+Limiter+Delay+Gain+ |
|
Surround |
Mix+Polar+5 Band PEQ+LPF+HPF+Limiter+Delay+Gain |
|
Weight |
NET Weight |
4.6KG |
|
Total Weight |
5.0KG |
|
Dimensions(W*H*D) |
Unit Dimensions |
482*234*66MM |
|
Pack Dimensions |
534*306*126MM |
Since 1999 Huimig Electronic Technology Co., Ltd. Has been manufacturing DSP processor professional audio & karaoke system. In digital audio DSP treatment effect has development & production experience & many variety of DSP audio solutions. Our team has committde itself to the development & production with every possible effort toward top quality, customer satisfaction, quick delivery & good service.
HM adopts production management systems & advanced production technologies. We're the best OEM/ODM business partner.
