| Prod Model: |
XP5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Conductive Mode: |
Class Ab or H |
Product Description

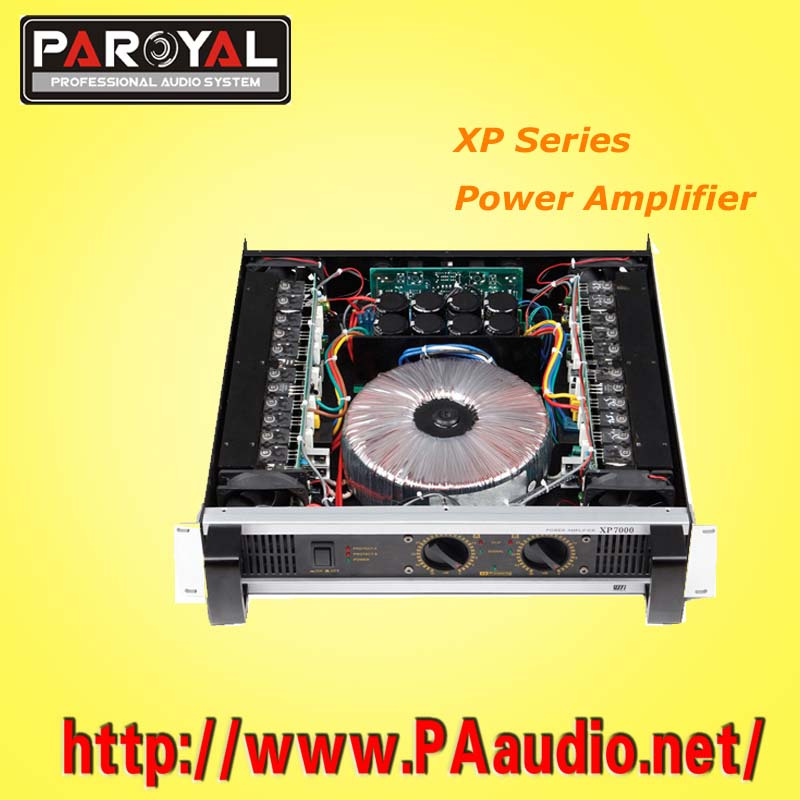

Amplifier (XP5000), Professional audio, power amplifier, PRO audio systems product
Model: XP1000 XP2500 XP3500 XP5000 XP7000 XP7000(T) power amplifier
Features
XP Series power amplifier provide extensive protection features such as Overheat short currents, DC protection, zero current, clip limiter, soft start
Offered in 300W-1000W power area
High power toroidal transformer
Suitable to various Input / Output Connectors. Has 3 Ways Sensitivity Switches for Stereo, Bridged Mono and Parallel Mono. Also connects swiftly to speakers VIA Speakon. - Flow-through ventilation from front to back
Internal heat sinks with forced air cooling for rapid, heat dissipation
Four fan for proper cooling to maintain performance and proper working levels
Can endure 8ohm, 4ohm and 2ohm loads
Highly reliable and stable
Less Distortion for better quality sound
Excellent & Natural Timbre
Crossover Selector in the 2U XP Series to use with one or more subwoofer speakers.
The XP Series Amplifier offered by us are designed and made by expert engineers using superior quality material.
Available in different power variations, these XP Series Amplifiers are high on demand across the globe.
|
SPECIFICATIONS |
XP1000 |
XP2500 |
XP3500 |
XP5000 |
XP7000 |
XP7000(T) |
|
|
STEREO MODE (Both Channels Driven) |
|
8 ohms |
|
|
|
|
|
|
|
FTC20 Hz -20 kHz, 0.1%THD |
300 W |
400 W |
500 W |
700 W |
850 W |
1000 W |
|
4 ohms |
|
|
|
|
|
|
|
FTC20 Hz - 20 kHz, 0.1% THD |
450 W |
620 W |
750 W |
1050 W |
1300 W |
1500 W |
|
2 ohms |
|
|
|
|
|
|
|
EIA 1kHz, 1% THD |
720W |
950 W |
1200 W |
1650 W |
2000 W |
2400W |
|
|
BRIDGE MONO MODE |
|
8 ohms |
|
|
|
|
|
|
|
FTC 20Hz - 20kHz, 0.1% THD |
870W |
1150 W |
1450 W |
2050 W |
2450 W |
2900W |
|
4 ohms |
|
|
|
|
|
|
|
EIA 1kHz, 1%THD |
1450 W |
1850 W |
2400 W |
3300 W |
4000 W |
4800W |
|
Signal to Noise, 20Hz-20kHz |
98 dB |
100 dB |
101 dB |
102 dB |
104 dB |
106 dB |
|
|
ALL MODELS |
|
Distortion (Typical) |
|
|
20Hz-20kHz: 10dB below rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
1.0kHz and below: full rated power |
Less than 0.03% THD, 4 and 8 ohms |
|
Frequency Response |
20 Hz-20 kHz, ± 1 dB |
|
-3 dB points: 5 Hz - 50 kHz |
|
Damping Factor, 1kHz and below |
Greater than 300 at 8 ohms |
|
Input Impedance |
10k ohms unbalanced, 20k ohms balanced |
|
Input Clipping |
10 Vrms (+22 dB) |
|
Cooling |
Continuously variable-speed fan, rear-to-front air flow |
|
Connectors, each channel |
Input: Active balanced; barrier strip, XLR and 1/4" (6.3mm) |
|
TRS tip and XLR (pin 2 positive) |
|
Output: touch-proof binding posts and Neutrik® Speakon® |
|
Controls |
Front: AC switch, Ch. 1 and Ch. 2 gain knobs |
|
Rear: 10-position DIP switch |
|
Indicators |
Power-On: Green LED |
|
Signal: Yellow LED (1 per channel) |
|
Clip: Red LED (1 per channel) |
|
Amplifier Protection |
Stable into reactive or mismatched loads |
|
Load Protection |
On/off muting, AC coupling , triac crowbar , on each channel) |
|
Power Requirements |
100, 120, 230 VAC, 50-60 Hz |
|
Dimensions |
480*480*100(mm) |
