| Prod Model: |
FP10000q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 8ohms Stereo Power(RMS): |
1350W*4 |
| Amplifier Type: |
Class D |
| Frequency Response: |
20 Hz - 34 kHz |
| OEM Sevice: |
Accepted |
| Color: |
Black, Red, Blue |
| Certification: |
CE, RoHS |
| Dimensions (W*H*D): |
483*88*396mm |
| Packing Dimension: |
580*180*560mm |
| Gross Weight(Kg): |
14.8kg |
| Warranty: |
Three Years |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Sound Channel: |
4.1 |
| Output Number: |
4 |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Usage: |
Stage |
| Voltage: |
220V&110V |
Product Description

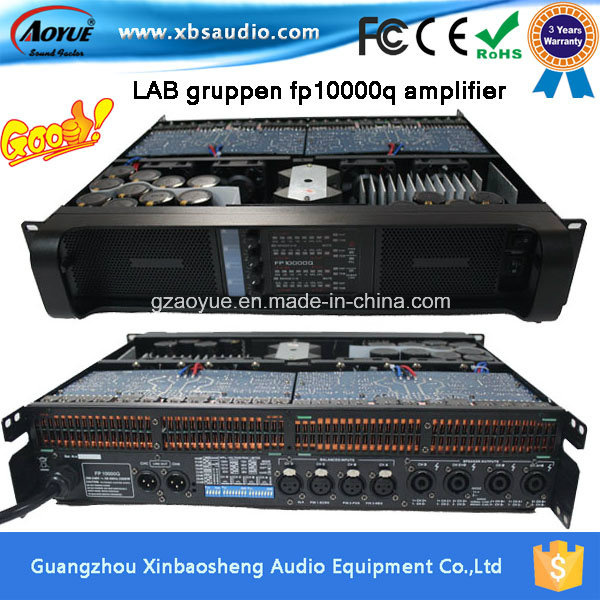

power amplifier FP10000Q 4Channels operational amplifier
Product Description FP series is a high performance switching power amplifier, compact structure, reasonable; each channel with independent adjustable peak output voltage, the amplifier can be very easy to drive different power sizes speakers ; intelligent protection circuit provides advanced technology to protect the internal circuits and connected loads, can in extreme conditions to protect the amplifier and speakers. For large-scale performances, venues, business senior entertainment clubs and other places.
| FP Series | FP7000 | FP9000 | FP14000 | FP6000Q | FP10000Q |
| 8ΩStereo Power(RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1300WX4 | 2700WX4 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 7000WX2 | 1500WX4 | 2500WX4 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 kOhm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 13.8 |
FAQ1.What's your MOQ (Minimum order quantity)?
A:There is no MOQ limited, you can choose to order 1pc or 1000000pcs, the more the better!
2.Except product value and shipping cost, do I need to pay any other fees in China?
A:No other fees needed in China!
3.How can I make the payment, what's your payment terms?
A:You can pay by TT, Western Union, or Paypal; 30% deposit before production, 70% balance before shipment!
4.How long will it takes for production after payment? ( By express, door to door delivery, such as DHL/TNT/FedEx/UPS...)
A:If your order qty less than 5000pcs, it will takes about 10 working days; If more than 5000pcs, please confirm with me directly!
5.How long is your guarantee period of products?
A:1 year, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!
6.Can you use our company logo and package?
A:Yes, we are manufacturer, we accept OEM request!
