| Prod Model: |
SHM1-36'' |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Installation: |
Wall Mounted |
| Power Supply: |
Electric |
| Power: |
>300W |
| Material: |
Stainless Steel |
| Certification: |
CE |
| Application: |
Greenhouse, Licestock, Poulty House and Workshop. |

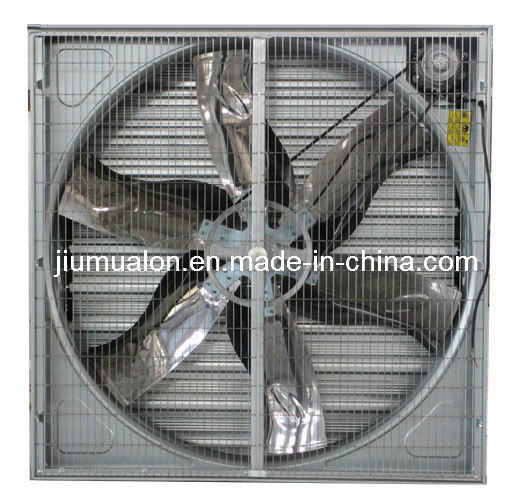

Product Description
Fan size: 1000mm× 1000mm× 450mm
Frame: Hot galvanized sheet, high anti-corrosive durability, sheet thickness0.8mm, zinkthickness 180g/sq. M
Motor: Chinese motor, Other motor accordingly,
Motor technical data: 0.4 Kw 380 V 50 Hz three phase
Motor RPM: 1440r/min
Noise: Not less than64dB
Blade diameter: φ 91 0mm
Blade No.: 6
Blade material: German-imported Mirror face stainless steel, avoid dust accumulation
Blade RPM: 566r/min
Blade instruction: Weight difference between blades is less than 0.5k, blades will go through
Balance test after assembled which can assure steady running and even airflow.
Shutter: Centrifugal system opening, spring close system, shutter can be opened at 90 degree.
Shutter No.: 8
Thickness of upper frame: 1.5mm, others 0.8 mm
Belt: Mistuboshi belt,
Housing: Galvanized
Airflow: 20800m3/h
| Model | Diameter blade/mm | Frequency/ HZ | Air volume/ m3/h | Power/kw | Noise(db) | Voltage/v | Size (mm) | Motor Speed(r/min) |
| SHM-1000 | 910(36in) | 50 | 20800 | 0.4 | ≤ 64 | 380 or 220 | 1000x1000x450 |
≥ 1400
|
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
