| Prod Model: |
TP-WTG02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shortest Latency: |
< 0.5ms |
| Frequency Response: |
20 -20KHz |
| Brand Name: |
Soyo |
| Model Number: |
Soyo-Wtg02 |
| Use: |
Attractions, Exibition, Conference |
| Channels: |
Max 20 |
| Frequency: |
2.400-2.483GHz |
| Sound Quality: |
Anti-Interference |
| Special Feature: |
Wireless, Portable |
| Style: |
Handheld |
| Talk Range: |
8-12km |
| Usage: |
Army |
| Battery Type: |
Ni-Cd Battery |
Product Description

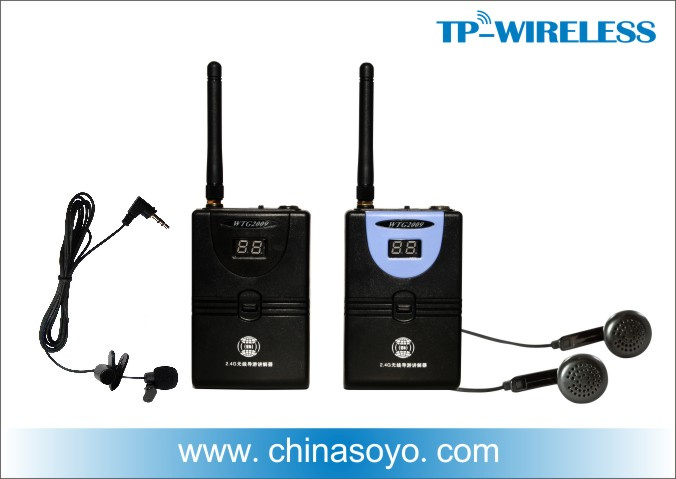

Portable wireless microphoneSpec 2.4GHz wireless audio tour guide:1. Transmit frequency 2400-2480 MHz; Real digital transmit;
2. Channel & Volume Display function. Channel 40 Max; 6-channel versions for Simultaneous Interpretation;
3. Sampling rate 64K; Frequency Response 20-20KHz, HDCD sound quality;
4. Shortest latency(< 0.5ms), surround lsound;
5. Ultra-low power consumption, 8hr. Work time for transmitter and 20hr. Continuous work time for receiver.
6. Rechargeable battery or dry lbattery can be used;
7. Small in size, easy to install, flexible in design land support customization;
8. Audio mute when no signal or weak signal existing; Changing channel automatically or manually is optional (confirm when ordering);
9. Transmit power 1MW-100MW as optional (Confirm when ordering. Default power is 100 MW and the maximum transmit distance is 180 meters in an lopen area)
10. It's workable for at least 20 teams' simultaneous using within 200 square meters area.

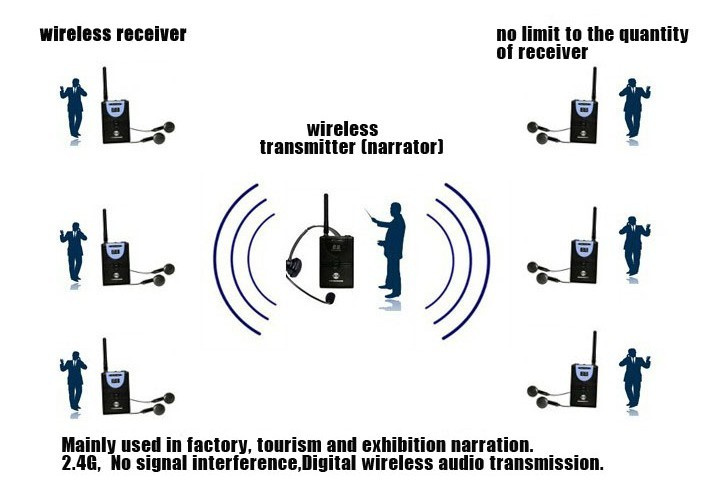

Where's a tour guide system shall be used?1. Tour guide systems are used in Tourist Attractions for each tourist hear Commentary clearly.
2. Tour guide systems are used in factories for showing visitors round, for training where machinery noise makes it hard for trainees to hear their instructors.
3. In public meetings as an interpretation system. The interpreter can simply sit at the back of the room and whisper the translation into the microphone.
Tour guide systems operate on different frequencies which means that several different languages can be catered for at the same time.
|
NO. |
Description |
Transmitter module |
Receiver module |
|
1 |
Work voltage |
3.6- 6V DC |
2.5 - 3.6V DC |
|
2 |
Work electric current |
Max 120mA |
Max 35mA |
|
3 |
Work temperature |
-15 - +65 |
-15 - +65 |
|
4 |
Frequency response |
2400 - 2483 MHz |
2400 - 2483 MHz |
|
5 |
Modulation |
GFSK |
|
|
6 |
Baud rate |
2M bps |
2M bps |
|
7 |
Channel space |
4MHz |
4MHz |
|
8 |
Stabilization of frequency |
+/-156KHz |
+/-156KHz |
|
9 |
Work frequency range |
2400 - 2483 MHz |
2400 - 2483 MHz |
|
10 |
Work channel |
20 CH |
20 CH |
|
11 |
Channel space of module |
4MHz |
4MHz |
|
12 |
Output power |
0-20 dBm |
|
|
13 |
Receiver sensitivity |
|
90dBm |
|
14 |
Input power |
Max 1.0Vrms |
|
|
15 |
Input impedance |
10k Ohm |
|
|
16 |
Input mode |
Two input modes:
1. Microphone
2. Stereo audio |
|
|
17 |
Stereo output 1 |
|
30mW RL = 32Ω |
|
18 |
Stereo output 2 |
|
50mW RL = 16Ω |
|
19 |
Output impedance |
|
1k Ohm |
|
20 |
RF Distance |
100-150 meters in the open area under 20dBm |
|
21 |
Output input gain ratio |
1:1 |
|
22 |
Frequency response |
20 - 20000Hz ( +/1dB ) |
|
23 |
The latency time |
< 0.5 ms |
|
24 |
Sampling ratio |
64kHz@16 bit*2 |
|
25 |
SNR |
95 dB |
|
26 |
Distortion |
0.8%@1kHz |
|
27 |
Dynamic range |
90dB |
|
28 |
Separation between the left and right track |
70 dB |
