| Prod Model: |
RSM-100/Hirose |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Rtc |
| Model: |
Rsm-100 |
| Radio Brand: |
Hirose |
| Connector: |
Hirose 6 Pin |
| Application: |
Voice |
| Signal Transmission: |
Wired |
| Directivity: |
Omni-direction |
Product Description

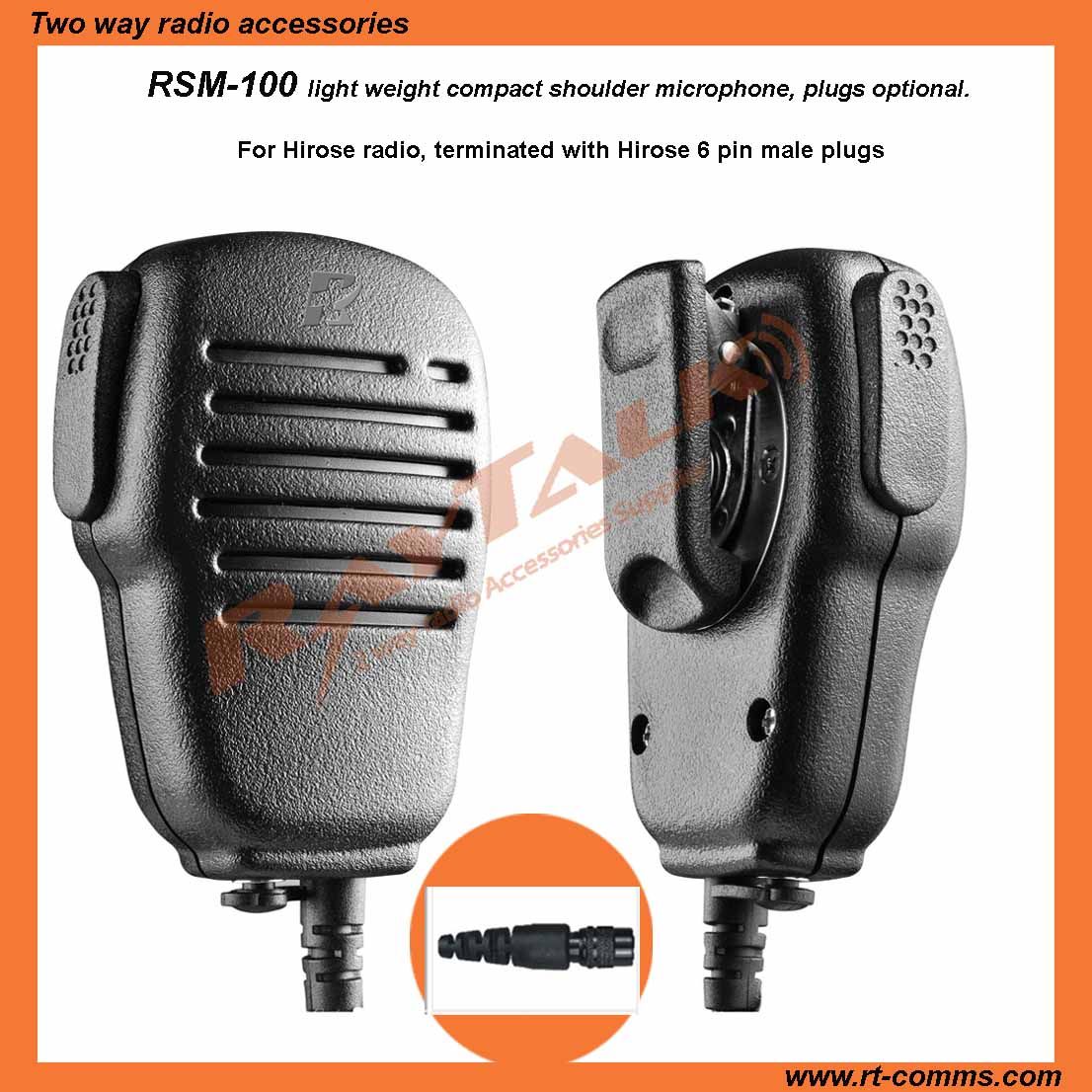

RSM-100 Remote Shoulder SPEAKER MICROPHONE with Hirose 6 pin connectors
Robust, slim-line, lightweight traditional lapel worn speaker/microphone.
High quality audio reproduction with the option to fit an earphone via the 3.5mm socket.
Kevlar lined for added strength and longevity
Water resistant with a 8 way robust metal clothing clip and extremely durable coil cable.
Microphone Specifications
Dimension: Ø 9.7 X 6.5mm
Sensitivity: -40 ± 3dB
Direction: Omnidirectional
Output Impedance: 2.2K Ω
Current Consumption: 500A
Working Voltage: 1.5V
Audio Response: 50Hz 10kHz
Speaker Specifications
Dimension: Ø 36mm
Impedance: 8 Ω ± 15%
Output Sound Pressure Level: 80± 3dB
Power Rating: Normal. 05W
Maximum 1W
Frequency Range: 280Hz-6kHz average
SPL-10dB
Cable Specifications
Cable Diameter: Ø 3.8mm
Cable Length: 45cm 1.5m
Colour: Black
Material: Thermoplastic polyurethanes
Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone
Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc.
Feature
· Professional grade
· Environmental PU cable with Kevlar™ Re-enforcement
· High quality components for superior audio
· Heavy duty strain relief
· Wind, water, impact & dust resistant
· Standard 3.5mm accessory jack
Microphone:
Sensitivity: -36dB± 3dB @ 1000Hz(0dB=1V/Pa)
Impedance: 2.2KΩ @ 1KHz
Operating Voltage" 1.1-10VDC | Speaker:
Dimensions: Φ 45mm
Impedance: 8Ω ±15% @ 1000Hz
Rated Input Power: 500mW
Sound Pressure Leavel: 103 4dB @ 1KHz
|
For:
Motorola:
CP040, CP140, CP150, CP160, CP180, CP200, CP340, CP360, CP380, EP450, GP3188, GP3688, GP300, GP600, GP88, GTX, GTX800, GTX900, P110, P1225, P1225LS, P1325, P225, SP1225, TALKABOUT, T280, TA2280, TA280, TA289, VISAR, I305, GP1280, GP140, GP240, GP280, GP320, GP328, GP329, GP338, GP339, GP340, GP344, GP360, GP380, GP388, GP540, GP580, GP640, GP680, GP688, GP750, EX500, EX560, EX600, GL2000, GP328PLUS, GP338PLUS, PTX700PLUS, PTX760PLUS, GP628, GP644, HT1000, GP1200, GP2010, GP2013, GP900, HT1100, HT6000, JT100, JT1000, MOBIUS, MT2000, MT2100, MTS1200, MTS2000, MTX8000, MTX838, MTX868, MTX9000, MTZ2000, MTP850, MTP800, MTH650, HTH800, MOTOTRBO, XPR6300, XIRP8200, XIRP8208, XIRP8260, XIRP8268, XPR6350, XPR6500, XPR6550, XPR6580, XBR6300. XBR6350, XBR6500, XBR6550, XBR6580, DP3400, DP3600, DGP4150, DGP6150, GTP800, APX7000
Kenwood:
TK208, TK308, TK2102, TK2107, TK238, TK3102, TK3107, TK338, TK2100, TK2100K2, TK260, TK260G, TK261, TK270, TK272, TK272G, TK278, TK3100, TK3100K2, TK3101, TK360, TK360G, TK370, TK370G, TK372, TK372G, TK373G, TK378, TK259, TK355, TK359, TK250, TK250G, TK250N, TK350, TK350G, TK350N, TK353, TK353N, TK430, TK431, TK2140, TK2160, TK2170, TK2360, TK3140, TK3148, TK3160, TK3170, TK3173, TK3360, TK2212, TK2300, TK2302, TK3212, TK3300, TK3302, TK2200, TK2200L, TK2200P, TK2202, TK2202L, TK2207, TK3200, TK3200LP, TK3200P, TK3201, TK3202, TK3207, TK3302U, TK4100, TK490, TK180, TK190, TK280, TK290, TK380, TK390, TK480, TK481, TK5400, TK3130, TK3131, NX200, NX300, TK-208, TK-308, TK-2102, TK-2107, TK-238, TK-3102, TK-3107, TK-338, TK-2100, TK-2100K2, TK-260, TK-260G, TK-261, TK-270, TK-272, TK-272G, TK-278, TK-3100, TK-3100K2, TK-3101, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-372G, TK-373G, TK-378, TK-259, TK-355, TK-359, TK-250, TK-250G, TK-250N, TK-350, TK-350G, TK-350N, TK-353, TK-353N, TK-430, TK-431, TK-2140, TK-2160, TK-2170, TK-2360, TK-3140, TK-3148, TK-3160, TK-3170, TK-3173, TK-3360, TK-2212, TK-2300, TK-2302, TK-3212, TK-3300, TK-3302, TK-2200, TK-2200L, TK-2200P, TK-2202, TK-2202L, TK-2207, TK-3200, TK-3200LP, TK-3200P, TK-3201, TK-3202, TK-3207, TK-3302U, TK-4100, TK-490, TK-180, TK-190, TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-5400, TK-3130, TK-3131, NX-200, NX-300
HYT(Hytera):
TC-268, TC-368, TC-268S, TC-368S, TC-370M, TC-380M, TC-3000, TC-3600, TC-3600M, PT-790, TC-780, TC-500, TC-600, TC-700, TC-610, TC-620, TC-2110, TC-1600, TC-510, CPS, CP-380, CP-330, CP-150, CP-350, CP-220, TC-500S, TC-585, TC-610S, TC-720S, TC-710, TC-510
