| Prod Model: |
M1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Standard: |
Qi |
| Input: |
5W 2A |
| Output: |
5V 1A |
| Working Frequency: |
100-205kHz |
| Energy Conversion: |
70% |
| Power Distance: |
2-8mm |
| Quick Charging Function: |
with Quick Charging Function |
| Over-Current Protection: |
with Over-Current Protection |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
5V |
| Charger Application: |
iPhone, iPad, All Brand Mobile Phone |
| Type: |
Wireless |
| Socket Type: |
Universal |
Product Description

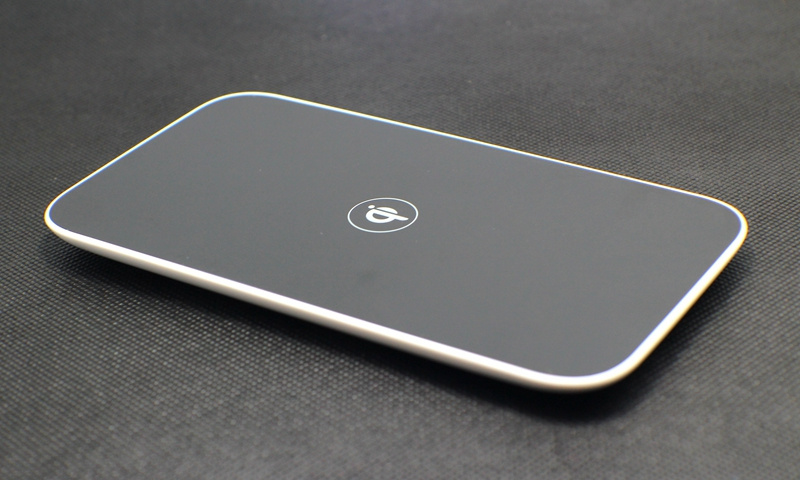

About Qi Wirelss Charger : With this stylish accessory, you can charge your compatible QI phones, and other Qi-compatible devices, without the need to plug your device in to a wall charger or USB port. No need to remove your Phone cover or most 3rd party covers to successfully charge. Simply place your device directly onto the charging pad and your phone begins to charge.You can use your device while it charging! Your device is always accessible so you can answer a call without having to unplug. Aoke Wireless Charging Pad is safe & Reliable, which charging devices are FCC (Federal Communications Commission) & CE (European Conformity) Certified to ensure complete safety and reliability.Design:- With this stylish accessory, you can charge your compatible QI phones, and other Qi-compatible devices
- No need to plug your Qi phone in to a wall charger or USB port.
- Did not disturb my data transfer process
- The receiving call can be answered without having to unplug, and you can use while it charging!
- Used it along with cover case and wallet - worked like there was no barrier
- Used it in my living room, Bedroom, kitchen, car and Starbucks, officeProduct Desctripiton:| Specs | Model Number | M1 |
| Material | Environmental-friendly Fire-prevention ABS material |
| Perform standard | Qi Wireless Charging Standard |
| Coil quantity | Single coils |
| (Adpator)Input | 5V 2A (max) |
| Output | 5V 1A (Max) |
| Power | 5W |
| Chargering Current | 500-1000mA |
| Frenquency | 110-205KHz |
| Launch distance | 2-8mm |
| Conversion Efficiency | ≥70% |
| Indicator | No |
| Certificates | CE,RoHS,FCC, Some: KC.PSE, QI |
| Color | White Or OEM&ODM |
| Benefits | Warranty | One Year |
| Protect functions | PCB board provides protection against Short circuit, over-current,over-charging and over-discharging, over-load (Foreign Metal object detection Opition) |
| Package | Packing | Included Charging Pad x1,
USB Cable x1, User manual x1 |
| Material | Blister/Paper Box/White box |
| Tips | Charger | Strongly recommend you to use the original charger, suggest 2A charger instead of 1A |
| Working temperature | ,-20 °C(-4F) to 40°C(104F) |
| Storage temperature | ,-20 °C(-4F) to 60°C(140F) |
| Warranty avoidance | Do not disassemble the battery due to it will avoid the warranty. |
| | | |
| Product | Gross Weight | 90g |
| Dimesion | 146*80*8mm |
| Packing | Weight | 168g |
| | Packing Dimension | 151*95*48mm |
| Export Carton | Carton | Qty: 78PCS/CTN
N.W: 13.00KG/CTN
G.W: 14.50KG/CTN
Meas: 53*29*37mm |
![]()
How to use wireless charger? 1.Connect the USB 2.0 interfacein to the power adapter or USB port .
2.Put you QI phone centered on the pad, and the a blue light will indicator begin to charge.
Note:- Qi wireless charging requires Qi receiver, built-in or add-on by WPC Qi standard (Receiver not included)
- Please ensure your device is Qi-compliant and equipped with Qi charging chip, or obtain one separately Main Service:Supplier for Wireless Charging Solution
Supplier for Wireless Charging PCB Supply and Layout
Supplier for Wireless Charging PCB Assembly on SMT
Supplier for Wireless Charging IC
Supplier for Wireless Charging PCBA
Supplier for Wireless Charging PAD TX
Supplier for Wireless Charging PAD RX
Supplier for Wireless Charger both OEM & ODM
Supplier for Wireless Charger of Mobile Phone (CE, FCC, ROSH, QI)
Supplier for ODM Wireless charing related products Advantage:-Stronge R&D Team. China earliest original professional companies that integrate the development, production and sale of wireless chargers and receiver, and offering solution (Design your PCB) to wireless Power supply into an organic whole.
-Strict Qulaity Controlment. Well strict quality control in production, and final inspection one by one before delivery, so as to make sure each unit works 100% perfectly.
-Quality Ceritificated. All of our products has passed CE,FCC and ROHS certification; Some: KC.PSE, QI
-Stable Growing. Thanks to the effort of all team members and all customers' support, Aoke is growing pretty well in these 2 years.
-Best service. 24 hours service and feedback, our team is professionally trained to be keen on customers' needs, provides alternative solutions and offers best value products. FAQ:
Q: Could you make my design of wireless charger or wirelss solution products?
A :Yes, We have a professional R&D Team, which could provide one-stop ODM Sevice by customized requirement
Q: What is your main products?
A: Wifi Wireless Car Charger, Wifi wirless charger, Wifi wirelss receiver, PCB of wireless power supply, Solution of wireless charger and power.....
Q: Are you manufacturer, trading company or agent?
A: We are professional manufacturer with abundant experience on the wireless charger research & development since 2010 in Shenzhen, China.
Q: Do you accept small quantity orders ?
A: Yes, we accept small quantity sample orders for testing, but not for free, and customers should pay for samples and freight. However we can return back the costs once large quantity orders are set.
Q: How about the shipment and payment?
A: Delivery time: usually 1 day for sample orders, within 3 days for small quantity orders, 5 to 7 days for large quantity orders.
Shippment: small quantity by express (DHL, UPS, FEDEX, TNT, EMS); bulk order by sea, urgent order via air to airport.
Payment: We accept payment by T/T, and small amount for Paypal (charges 5% operation fee).
Q: After-sales Service, Warranty?
A : We offer 1 year warranty for all products in our factory, If there is no man-made problems,we will replace or repair for your freely.
![]()
