Portable Bluetooth Speaker Power Bank with 2000mAh & Phone Stand (SMB202)
| Price: |
US $ 6.40-15.00/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
SMB202 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Vol. And Current: |
DC 5V/1000mA |
| Output Vol. And Current: |
DC 5V/1000mA |
| Support: |
3.5mm Line in |
| Bt Version: |
V3.0 |
| Power Bank: |
2000mAh |
| Battery Type: |
18650 Cell |
| Speaker: |
2W |
| Certificate: |
CE/RoHS/FCC |
| Size: |
136*30*30 Mm |
| Weight: |
145 G |
| Capacity: |
≤2000mAh |
| Compatible Brand: |
iPhone |
| Carrying Way: |
Universal Split |
| Charging Type: |
Electric |
| Applicable Models: |
Mobile Phone |
| Cell Type: |
Li-Polymer |
| Display: |
With Display |
| LED Lighting: |
LED Lighting |
| Certification: |
RoHS |
| Socket Type: |
for USA/Canada |
| Recyclable: |
Recyclable |
Product Description

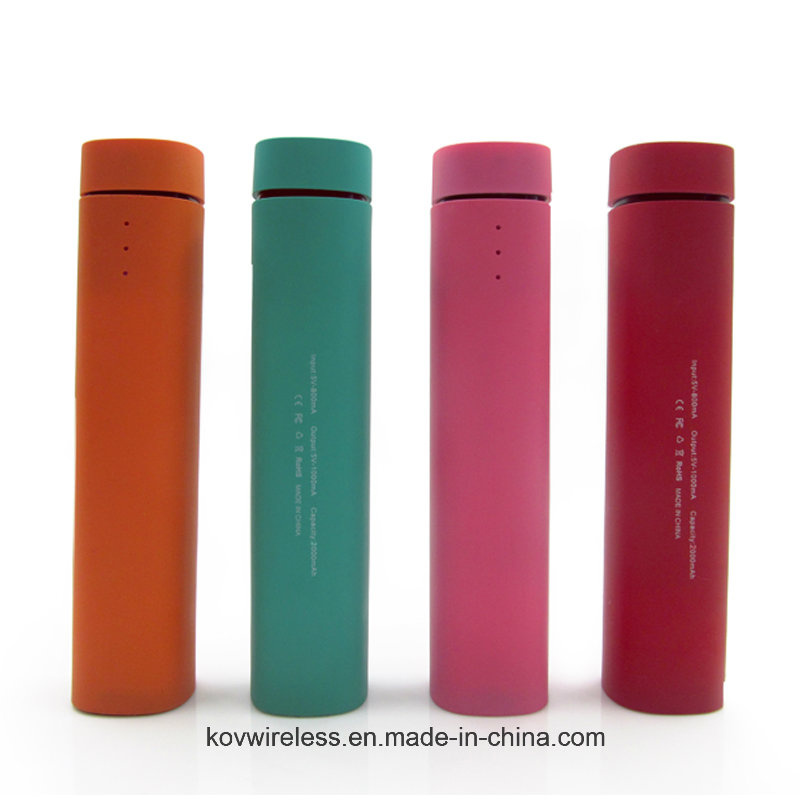

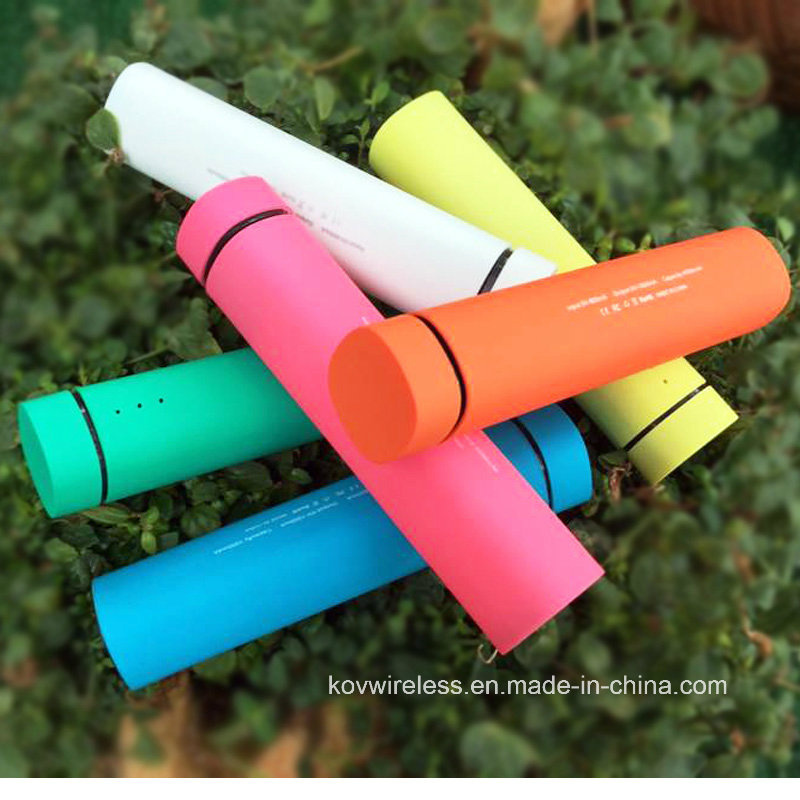

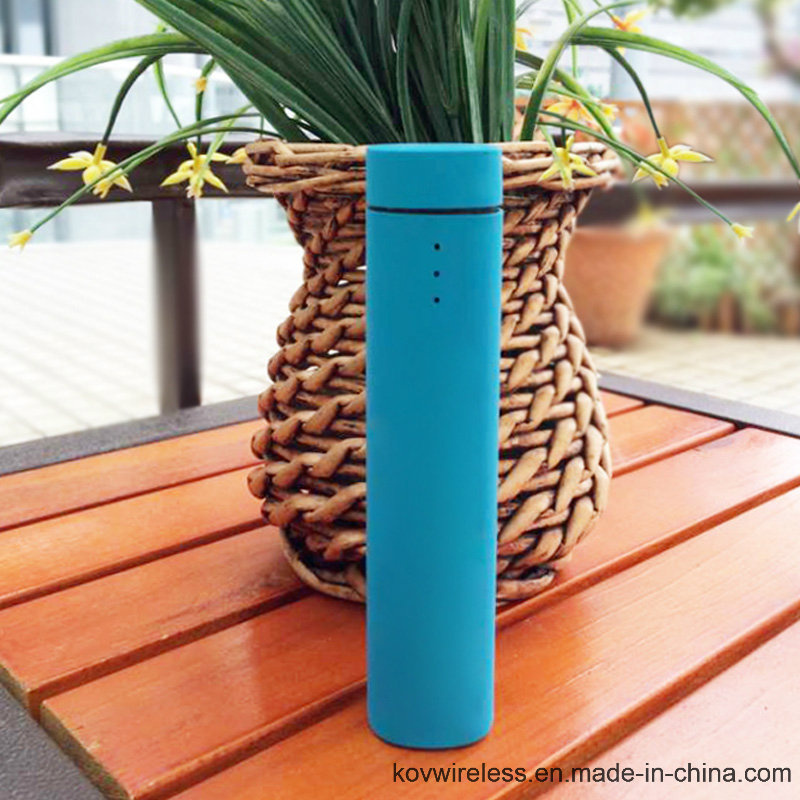

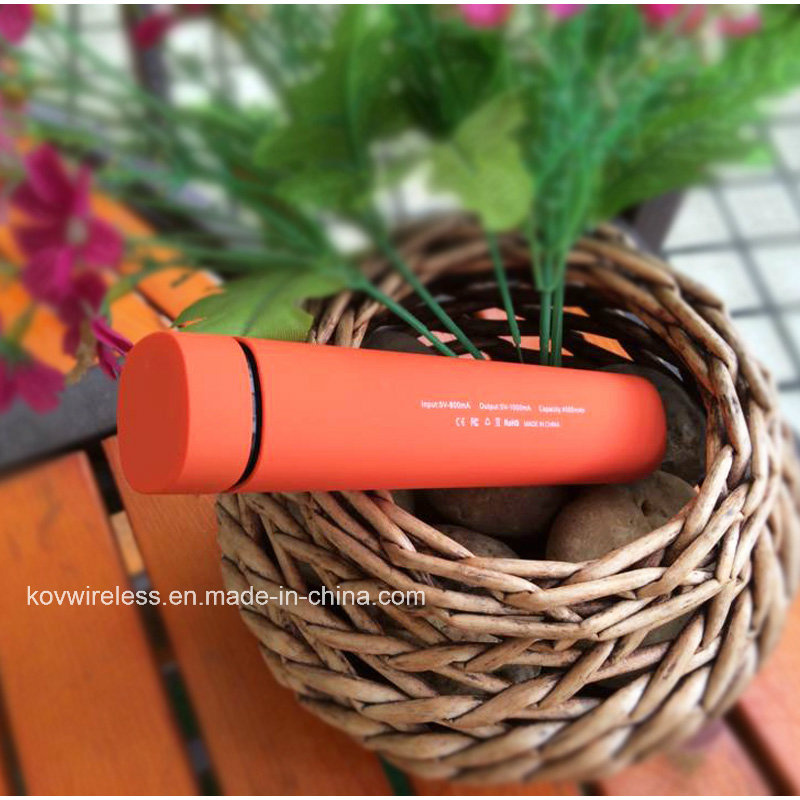

Portable Bluetooth Speaker Power Bank with 2000mAh & Phone Stand (SMB202)
> Power bank & BT speaker
> BT speaker part:
> BT version: V3.0
> Support: A2DP
> Support 3.5mm Line in
> Speaker: 2W
> Power bank part:
> The capacity:2000mAh
> Battery type: 18650 cell
> Input: DC5V/1.0A
> Output: DC5V/1.0A
>Key description: (SMB202)| Batteries | 18650 cell |
| Battery Capacity | 2000 mAh |
| Input Voltage And Current | DC 5V/1000mA |
| Output Voltage And Current | DC 5V/1000mA |
| Size | 136*30*30mm |
| N.W | 145 g |
SMB202 USER MANUAL
LED Indicator instruction
Red LED: It is the indicator for power bank, when charging to the Power bank, it flashes and will be steady once fully charged, and always being steady during the discharge process.
Blue LED: It is the indicator for Bluetooth speaker, when pairing it flashes fast and flashes slowly once successfully paired.
Power bank
Charge the SMB202 Power bank
Use the coming 2IN1 USB cable, plug the 3.5mm end into the 3.5mm socket then charge your power bank, the RED LED flashes during the charging time and be steady once it is fully charged.
Charge your phone
Use the coming 2IN1 USB cable, plug the micro USB end into your phone then charge your mobile phone, during the discharging time the red LED is being steady. If your mobile phone is not Micro USB, please select right USB cable.
BT Speaker
Turning on/off
Turning on the speaker
Take off the cover and cover back, then it turn on and step into pairing mode.
Turning off the speaker
The speaker will turn off automatically if without connection within 10mins, or taking off the cover to turn off the speaker.
Pairing your speaker- Cover back to enter into pairing mode, the Blue LED flashes fast
- Activate your device's Bluetooth function, please refer to your device user guide for details
- Select speaker SMB203 from the found list
- If successfully paired, the speaker will prompt with "do".
- Ensure the distance between your speaker and device is within 10m and without any obstacles, now you can enjoy music wireless
- If the speaker had paired but disconnected, it will pair automatically again when turns on.
Adjust volume
Press the Volume button to adjust the volume or adjust from your phone.
3.5mm Audio in
Please connect the speaker to your phone via 3.5mm audio cable, then you can enjoy the music from your speaker.
Remote shutter
When the speaker is paired with your mobile phone, you can use it to take photos- Activate your camera in mobile phone
- Press the button to take photos
Phone Stands
Take off the cover, and insert one 3.5mm jack into your phone audio socket, the other one into the power bank socket, then you can use this power bank as a stand to enjoy video and music.FAQ| Question | Answer |
1. How many quantity produce per month?
2. | We can produce 50000 pcs per month. |
2. How many year of warranty?
| One-year warranty |
3. What kinds of payment can be accepted?
| T/T& PayPal& W/U& Money Gram |
| 4. How would the delivery time be? | 20-25 days |
| 5. Do you have CQ? | Yes, we have ourselves CQ to guarantee product quality. |
| 6. I would like to print my own LOGO on the headset .Can you accept this? | Yes. We can accept you logo on our headset, but the MOQ should be 1000 pcs/color. |
