Prod Model: |
HMA-3500-OG |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Stainless Steel |
Color: |
Sliver, Blue |
Ozone Output: |
3.5g 7g |
Ozone Plate: |
1PCS |
Usage: |
Engineering |
Purifying Technology: |
Ozone |
Type: |
Ozone |
Certification: |
ETL |
Structure: |
Portable |
Product Description

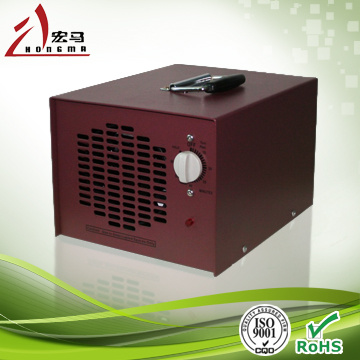

Ozone generator ( for air and water purification)
Five stages ozone output
Timer can be adjusted according requirement
High-purity ceramic plate
Applications area:
1) For room: Air sterilizer, living room. Kitchen. Bathroom, garage, pet room, Restaurant air sterilizer, Hotel room purifier, KTV smell remover, store sterilizer, office building, vehicle and boat. Fishing shop. Etc...
2) For food: Washing fruits & vegetables, wash and remove the residual pesticides for vegetable and fruits,
3) For water purifier and sterilizing: Purification for small swimming pool or SPA, aquarium etc.
4) Sterilize and remove odor for farming, Keep fresh, Ozone generator for removing Formaldehyde( new house, hotel, office...), Refrigerator keep fresh equipment.
5) Sterilize for kids clothes and toy, Sterilize for daily necessities,
Specification:
Power consumption: 70W~95W
Input voltage: 110-230V/50-60Hz
Air flow Volume: 100 CFM
Product size: 200*285*250 mm
Packing size: 320*320*265mm
N. W. /G. W.: 5.5KGS/6KGS
Application Area: 7000 square feet
Features and advantages:
Internal and external the electrode double air-cooled ozone plate,
Natural cooling properties of the internal heat sink, and external surrounded heat sink,
The ozone unit low temperature rise, continuous work efficiently.
Ozone output up to 3500-7000mg/hr,
High-purity ceramic tube,
Stainless steel electrode and fasteners,
High purity silicon rubber material
Make it the antioxidant decay, to ensure the years application without failure.
Delivery time: 35days
Warranty: 3years
```````````````````````````````````````````````````````````````````````````````````````````````````````````
Zhuhai Large Horse Electrical Appliance Co., Ltd, a sub-company of Large Horse International (Group) Company Limited (HK)
Established in 1996, is a leading manufacturer and exporter of home appliances with many years' solid experience.
Company type: Manufacturer with our own R&D dept. And production lines
Staff number: 500
Inculed 4 production lines
400 well-trained workers
Professional QA. QC
Expertized team of engineers in our R&D Department
Covering a production area of more than 3000 square meters
Covering a wide range of products such as air purifiers, heaters, thermostats, electric remote controllers for all kinds of household appliances.
Besides, we accept all kinds of OEM and ODM project.
Gaining the ISO9001 certificate in 1997
We always take strict quality control during the production and Continued the pursuit of product quality improvement.
All the products through "4-steps" strict inspection before go out.
Model |
HM-3500-OG |
Input voltage |
110-240V |
Power consumption |
65W |
Ozone generation technology |
high transformer |
ozone plates |
Electrode |
Stainless steel |
Dielectric substance |
Ceramics |
Gas source |
Air |
Ozone output |
3.5gram/hr |
Air flow rate |
23liter/min |
Ozone concentration |
15-20mg/l |
Air flow rate |
3.3m3/hr |
Outlet temperature |
<30°C |
Cooling method |
Air cooling |
Case material |
stainless steel |
Coating |
Dimension(mm) |
250*320*190 |
Net weight |
5.0kg |
