| Prod Model: |
YPL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

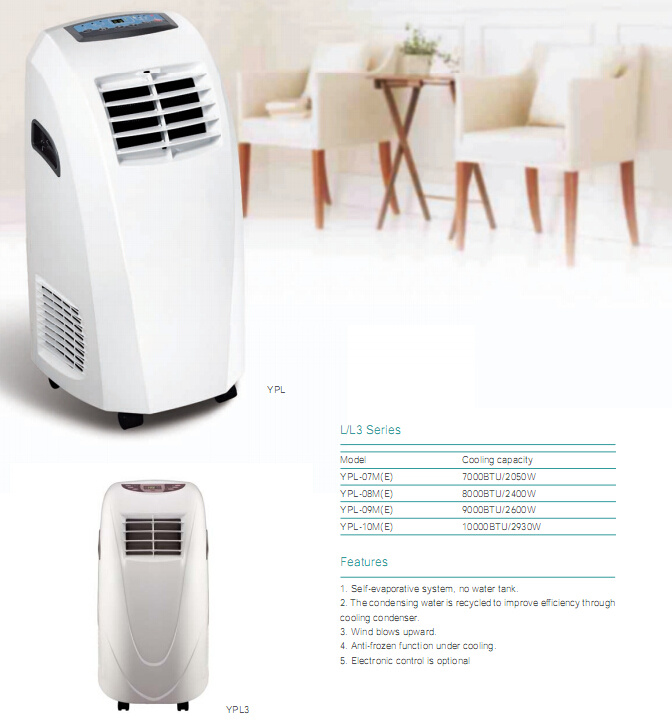

| Ypl-09m(E): |
9000BTU/2600W |
| Ypl-10m(E): |
10000BTU/2930W |
| Ypl-07m(E): |
7000BTU/2050W |
| Ypl-08m(E): |
8000BTU/2400W |
| Type: |

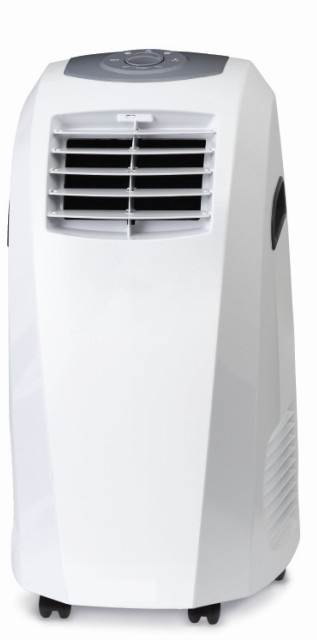

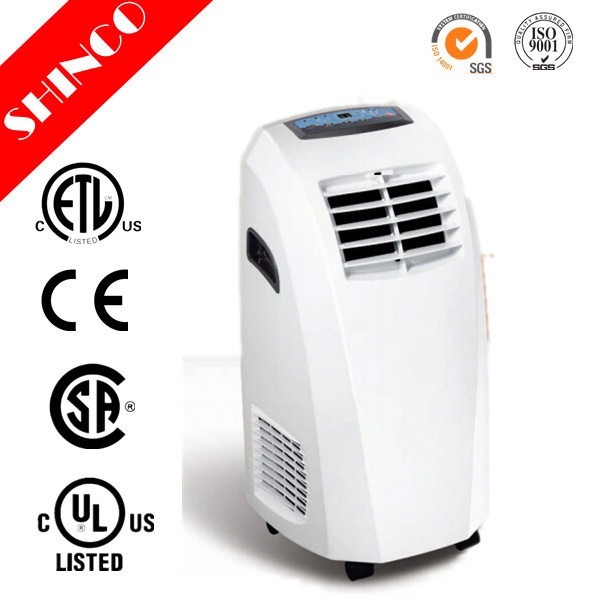

Portable Air Conditioner |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
| Capacity: |
9000BTU-15000BTU |
Product Description
Construction Features1. Self-evaporation, new generation. Water generated inside is reused, no need to empty water,power saves.
2. Water disposed by a spraying motor.The machine works perfectly in wet area with high EER.
3. Rectangular shape looks handsome and silver-printed housing appears luxury.
4. Reversible LCD, indicating temperature and operation status.
5. Anti-frozen function under cooling.
6. Self-diagnosis function and 24 hour On/Off timer.
Other Features and Functions1.louvers swing automatically,wind auto-swings.
2.soft touch control panel
3.high quantity.
4.electronic control is optional
Loading Quantity20"/40"GP/40"HQ: 128/276/412
| Technical Parameters for European Market |
| Model | Unit | YPL/YPL3-07C-1A | YPL/YPL3-08C-1A | YPL/YPL3-08C-1A | YPL/YPL3-10C1A | YPL/YPL3-07M-1A | YPL/YPL3-08M-1A | YPL/YPL3-09M-1A | YPL/YPL3-10M-1A |
| Cooling capacity | Btu/h | 7000 | 8000 | 8000 | 10000 | 7000 | 8000 | 9000 | 10000 |
| W | 2050 | 2400 | 2400 | 2930 | 2050 | 2400 | 2600 | 2930 |
| Heating capacity | Btu/h | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| W | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Power Supply | V~,Hz,Ph | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 |
| Rated input | Cooling | W | 1020 | 1050 | 1050 | 1050 | 1020 | 1050 | 1050 | 1050 |
| Rated Current | Cooling | A | 4.5 | 4.6 | 4.6 | 4.6 | 4.5 | 4.6 | 4.6 | 4.6 |
| Rated input | Heating | W | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Rated Current | Heating | A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| EER for Cooling(R410A) | Btu/W.h | 8.3 | 9 | 9 | 9 | 8.3 | 9 | 9 | 9 |
| W/W | 2.43 | 2.62 | 2.62 | 2.62 | 2.43 | 2.62 | 2.62 | 2.62 |
| COP for Heating(R410A) | Btu/W.h | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| W/W | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Moisture Removal | L/h | 0.6 | 0.8 | 0.8 | 0.8 | 0.6 | 0.8 | 0.8 | 0.8 |
| Air Circulation | m³/h | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Noise | High | dB(A) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Middle | dB(A) | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Low | dB(A) | 52 | 52 | 52 | 52 | 52 | 52 | 52 | 52 |
| Body Size | W×H×D | mm | 330×795×433 | 330×795×433 | 330×795×433 | 330×795×433 | 330×795×433 | 330×795×433 | 330×795×433 | 330×795×433 |
| Package Size | W×H×D | mm | 394×880×494 | 394×880×494 | 394×880×494 | 394×880×494 | 394×880×494 | 394×880×494 | 394×880×494 | 394×880×494 |
| Net Weight/Gross Weiht | kg | 22/27 | 25/28 | 25/28 | 25/30 | 22/27 | 25/28 | 25/29 | 25/30 |
| Appliation Area | m2 | 8~12 | 9~14 | 9~14 | 10~15 | 8~12 | 9~14 | 10~15 | 10~15 |
| Loading Quantity | Set/40"HQ | 412 | 412 | 412 | 412 | 412 | 412 | 412 | 412 |
| Set/40"GP | 276 | 276 | 276 | 276 | 276 | 276 | 276 | 276 |
| Set/20" | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 |
| Remarks: 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice. |
| 2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation. |
| Technical Parameters for North American Market |
| Model | Unit | YPL/YPL3-07C-1 | YPL/YPL3-08C-1 | YPL/YPL3-09C-1 | YPL/YPL3-10C-1 |
| Cooling capacity | Btu/h | 7000 | 8000 | 9000 | 10000 |
| W | 2050 | 2400 | 2600 | 2930 |
| Heating capacity | Btu/h | N/A | N/A | N/A | N/A |
| W | N/A | N/A | N/A | N/A |
| Power Supply | V~,Hz,Ph | 110~120,60 | 110~120,60 | 110~120,60 | 110~120,60 |
| Rated input | Cooling | W | 880 | 880 | 980 | 980 |
| Rated Current | Cooling | A | 8 | 8 | 9.2 | 9.2 |
| Rated input | Heating | W | N/A | N/A | N/A | N/A |
| Rated Current | Heating | A | N/A | N/A | N/A | N/A |
| EER for Cooling(R410A) | Btu/W.h | N/A | N/A | N/A | N/A |
| W/W | N/A | N/A | N/A | N/A |
| COP for Heating(R410A) | Btu/W.h | N/A | N/A | N/A | N/A |
| W/W | N/A | N/A | N/A | N/A |
| Moisture Removal | L/h | 0.6 | 0.6 | 0.8 | 0.8 |
| Air Circulation | m³/h | 330 | 330 | 360 | 360 |
| Noise | High | dB(A) | 55 | 55 | 55 | 55 |
| Middle | dB(A) | N/A | N/A | N/A | N/A |
| Low | dB(A) | 52 | 52 | 52 | 52 |
| Body Size | W×H×D | mm | 330×795×433 | 330×795×433 | 330×795×433 | 330×795×433 |
| Package Size | W×H×D | mm | 394×880×494 | 394×880×494 | 394×880×494 | 394×880×494 |
| Net Weight/Gross Weiht | kg | 22/27 | 25/28 | 25/29 | 25/30 |
| Appliation Area | m2 | 8~12 | 9~14 | 10~15 | 10~15 |
| Loading Quantity | Set/40"HQ | 412 | 412 | 412 | 412 |
| Set/40"GP | 276 | 276 | 276 | 276 |
| Set/20" | 128 | 128 | 128 | 128 |
| Remarks: : 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice |
| 2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation. |
