| Prod Model: |
PC-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Amplifier Outpower 8 Ohms: |
2×200W |
| Power Amplifier Outpower 4 Ohms: |
2×320W |
| Power Amplifier Bridge Output Power 8 Oh: |
400W |
| Power Amplifier Freq Response: |
20Hz-20kHz |
| Power Amplifier Input Sensitivity: |
0dbu(0.775V) |
| Power Amplifier S/N Ratio: |
100dB |
| Power Amplifier Thd At Rated Output Powe: |
<0.1%(Mbw=80kHz, 1kHz) |
| Power Amplifier Crosstalk: |
<-75dB |
| Power Amplifier Damp Factor(1kHz 8 Ohms): |
>300 |
| Power Amplifier Power Input: |
115V/230V 50/60Hz |
| Type: |
Professional Amplifier |
| Usage: |
AV |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description

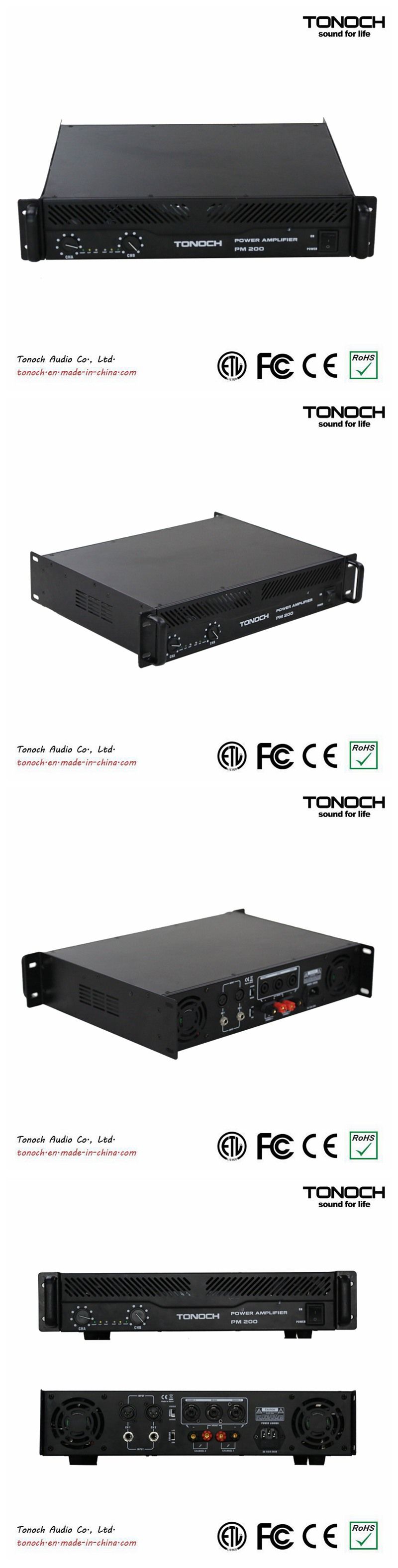

Popular Professional Power Amplifier for Model PC-2000
INTRODUCTION
This series of products are the latest Tonoch amplifiers, compact & solid design can meet the requirement of any sound reinforcement project, with the high performance, innovative appearance and high quality components. The series can be used in large / medium application, like as movie studio, news promulgate center, video education, large stage, playhouse music and so on.
FEATURE
1. Front-to-rear airflow and cooling fan
2. XLR and 1/4"(6.5mm Jack) balanced and RCA unbalanced inputs
3. Limiter circuit switch for amp output protection
4. 3 Speakon outputs for Channels A/B/Bridge
5. 5-way binding banana plug channel outputs
6. Bridge control switch
7. DC output protection
8. Short circuit protection
Specifications | Model | PC-2000 | PC-3000 | PC-4000 | PC-5000 |
|
| Outpower 8 ohms | 2×200W | 2×300W | 2×400W | 2×600W |
| Outpower 4 ohms | 2×320W | 2×480W | 2×640W | 2×960W |
| Bridge output power 8 ohms | 400W | 600W | 800W | 1200W |
| Freq Response | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz |
| Input sensitivity | 0dBu(0.775V) | 0dBu(0.775V) | 0dBu(0.775V) | 0dBu(0.775V) |
| S/N Ratio | 100dB | 100dB | 100dB | 100dB |
| THD at rated output power | <0.1%(MBW=80KHz,1KHz) | <0.1%(MBW=80KHz,1KHz) | <0.1%(MBW=80KHz,1KHz) | <0.1%(MBW=80KHz,1KHz) |
| Crosstalk | <-75dB | <-75dB | <-75dB | <-75dB |
| Damp Factor(1KHz 8 ohms) | >300 | >300 | >300 | >300 |
| Protection | Audio limiters, high temperature, DC, short circuit, HF, peak current limiters, turn-on delay |
| Power input | 115V/230V 50/60Hz | 115V/230V 50/60Hz | 115V/230V 50/60Hz | 115V/230V 50/60Hz |
| Weight | 6.3kgs | 6.8kgs | 7.5kgs | 9.2kgs |
| Dimension(mm) | 533×420×165 | 533×420×165 | 533×420×165 | 533×420×165 |

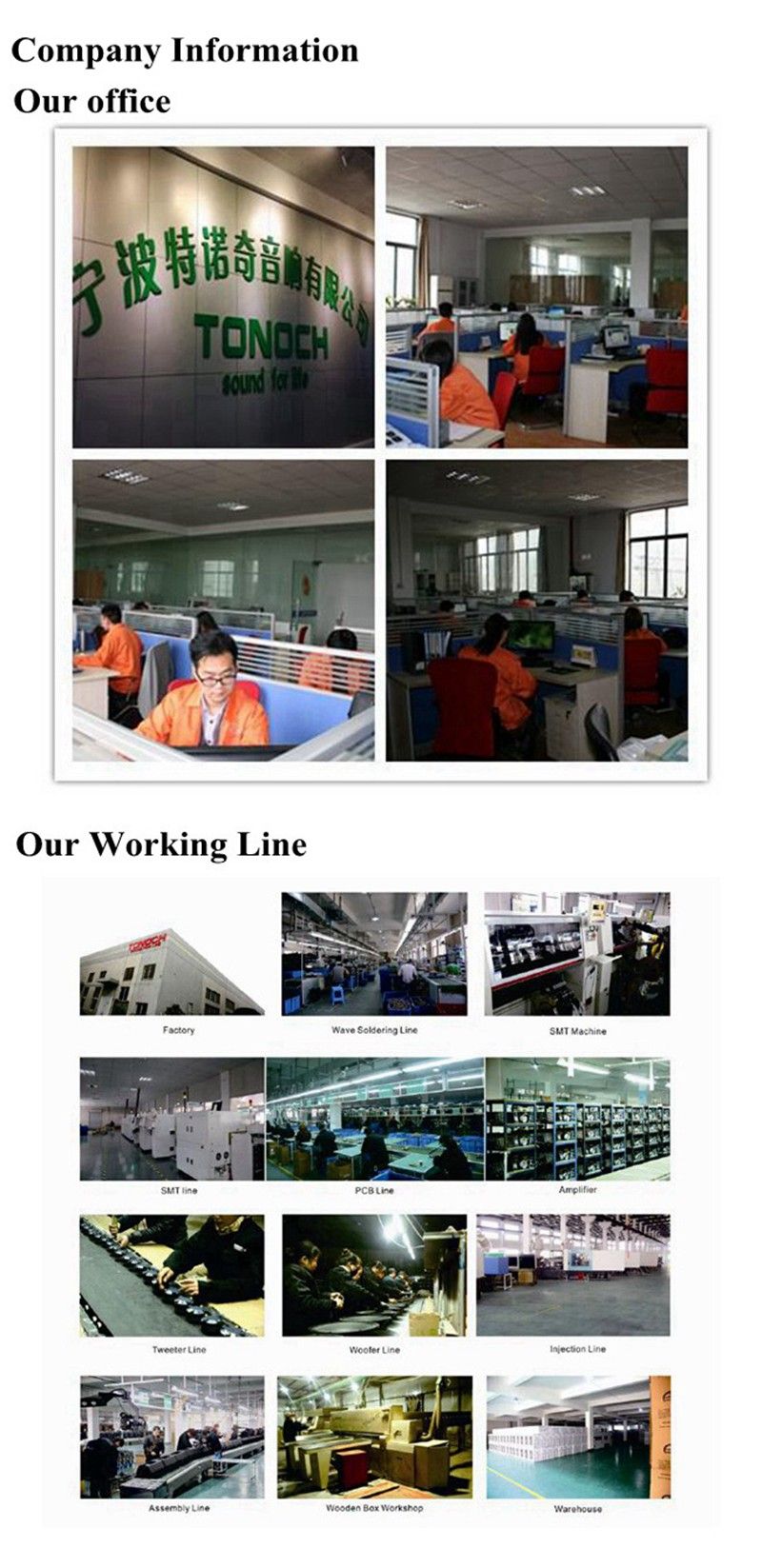

Introduction of Tonoch Audio Co., Ltd
Tonoch Audio Co., Ltd, located in Ningbo of China, was found in 2004. As a manufacture & exporter of professional audio equipments, we own the sole aim of being the strongest supplier of high quality, high value audio equipment in the pro audio market. Products were and are designed with a main philosophy which is the sound for your life.
There are more than 500 employees in factory, including 15 technicians, 20 sales persons, 18 QC, etc. At present, there are 6 assembly lines for the amplifier and 6 lines for the speaker. Moreover, Tonoch has invested for injection machine, SMT and mould toolings which are exclusive for it.
Quality is controlled very well because almost all of the parts are made by itself and continuous improvement are made on products. Meanwhile, we are making every effort to controlled the cost as low as possible.
Our goal is to provide the best quality products at the lowest price to the customers and the customers always put in the first. Due to the above advantages, we obtain quite good reputation from the customers.
Together we can do better, together we can make audio better.
Tonoch is your best choice!
Once you have any idea concerning new audios, pls contact me. OEM ODM are both welcome. Welcome to visit our factory! Any question, send inquiry to me!
FAQ
Q: What's your main product lines?
A: Portable active speaker, economic active speaker, economic PA combo, professional active speaker, professional PA combo, class - D active speaker, bi - amp active speaker, 1000w class - D speaker, subwoofer PA combo, active PA subwoofer, portable battery speaker, economic battery speaker, professional battery speaker, portable PA system, economic PA system, power box mixer, professional power amplifier, RGB light woofer, and other accessories.
Q: What kind of functions do the speakers have?
A: Bluetooth, folder mp3, USB, FM, portable, with LED light, Ipod dock, remote, EQ effect, for your option.
Q: What certificate do you provide for customer?
A:Factory Audit are welcome. Quality is guaranteed, products pass CE, ROHS, FCC international authentication.
Q: Do you accept OEM?
A: Yes, OEM and ODM are both welcome.
Tonoch Audio Co., Ltd. As one of the professional mnaufactuer of audio equipment located in Ningbo, China.
Tonoch, with the sole aim of being the largest supplier of high quality, high value audio equipment in the world audio market, all Tonoch's products were and designed to one simple philosophy-it is the sound to your life.
All Tonoch's products were and are designed to one simple philosophy, that is the sound of your life. With the update technology, unique location, professional staff, our products enjoy a lot both in quality and price. We know that high quality is the key which makes Tonoch distinct fantastic from the same field. This is the premise on which Tonoch structures its company philosophy. Tonoch uses only the highest quality materials that meet or exceed industries' standards for each product. These materials are then used in manufacture under the strictest quality control to produce the finest, cost-effective products in the audio equipment industry.
The quality of our after-sales service and support is best illustrated by the large proportion of Tonoch customers who purchase further consoles. Relationship marketing is a key focus of our business and we appreciate your customers. Our mission is to ensure Tonoch remains the preferred choice for your audio requirements. Tonoch staff is a group of professional, passion, energy which dedicate to better ourselves as receiving confirmation of our work from the same line. We will walk together hand in hand with you to develop another audio wonderland.
Together we can make music matter, together we can do better.
