| Prod Model: |
102x210 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
for Tiny Particle Recycle in Chemicals, Cok. |
| Corrosion Resistance: |
Good |
| Acid And Alkali Resistance: |
Excellent |
| Hydrolysis Resistance: |
Excellent |
| Cleaning: |
Easy |
| Working Life: |
Long |
| Size: |
102X210mm |
| Certificate: |
SGS |
| Material: |
PP |
| Medium Material: |
Synthetic Fiber |
| Type: |
Pocket Filter |
| Usage: |
Liquid Filter |
| Filtration Grade: |
Medium Filter |
| Cartridge Filter: |
Polypropylene |
Product Description

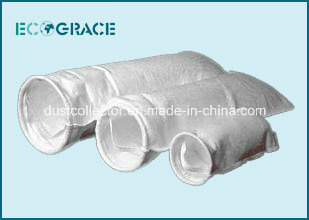

ECOGRACE PP CLOTH Liquid filter bag
Why choose us?
1. Our company is famous and largest manufacturer of filter needle felts and filter bags in China.
2. We have 10 years filtration solution experience.
3. Inspected by the SGS Certification.
4. 100% QC inspection Before Shipment.
5. Best Quality & Best Service with Competitive price.
Quick Detail:
1. Material: PP or PE, polyester, polypropylene
2. Micron rating: 0.5um ~800um
3. Good anti-abrasion
4. High temperature grade
5. Anti-acid, anti-alkali, chemical resistance
6. High porosity, good air permeability
7. Laminated compound, grads counterchange
What is the detail of our liquid filter bag?
1. Low temperature resistance ( 88-110 ºC);
2. Excellent resistant to hydrolysis;
3. acids and alkali resistance is excellent;
4. Smooth surface, more defined pore size and good air permeability;
5. Lower fiber release, Lower density, High mechanical characteristics.
What are the specifications of our liquid filter bag?
Specifications:
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material | PE,PP,NMO,PTEE |
| Cuff | PP Lock, Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be customized |
| PRODUCT CODE: |
| Component | Elongation@50N/5cm |
| Fiber | 100%PP | Longitudinal (%) | Transverse (%) |
| Scrim | 100%PP | <3% | <3% |
| Weight(g/m²) | 500 | Operating Temperatures |
| Thickness(mm) | 2.0 | Continuous(°C) | Surge(°C) |
| Density(g/cm3) | 0.25 | 130 | 150 |
Mean Air Permeability
(L/dm².min) | 150-250 | Max Dry Shrinkage in 90 minutes:
(150°C)(%) | <1% |
| Breaking Strength | Surface Treatment | Heat Setting, Singed,
Represent add stainless
steel fibers |
| Longitudinal(N) | Transverse(N) |
| >1000 | >1200 |
What is the application of our liquid filter bag?
1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
Notices:
1. Materials available: polyester, polypropylene
2. construction: welded or sewn
3. collar type: steel ring or plastic ring
4. finishing treatment: singed, calendared, heat set
5. Size available: standard and customize.
Hangzhou Createch Machinery, with the famouse brand "Grace Filter", is one of the subsidiary of Grace Filter MFG, based in U. K, and developed in China.
Grace Filter MFG, based in U. K, developed in China, stands for high efficiency filtration solutions and expertise service for filtration industry. We get success in all dust emission control and purifying projects in Coal Fired Boiler power plant, Blast-Furnace in steel plant, Asphalt mixing site and Cement kilns, chemical industries, etc.
We make filter bags to fit most styles and types of baghouses and other dust collection systems
Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations. Let us help you today to find the right bag for your industry application and dust collection system.
With over 20, 000 bags in stock and the ability to expedite custom orders, we deliver better lead times, cost effective solutions and responsive service to your filter bag needs.
Filter Media (fabric) options include the following and more:
Polyester
Polypropylene
Fiberglass
Aramid / Nomex
PPS / Ryton
P84 / Polyamide
PTFE (Teflon)
We are dedicating is provide the most economical, efficient and optimized filtration solutions solutions, the emission control since <15mg/ m3, , totally solve the PM2.5 control standard, dust filters working life will be 20% longer than others.
Our commitments is to enhance and optimize the performance of dust filters for particulate air pollution control. We strive constantly to improve our products and services for the benefit of our customers - providing long working life of dust filters and all about reducing emissions.
We are technology oriented enterprise, the innovative leader in dust collector filters and environmental protection industry. Our success is based on thinking ahead, strong commitment on environmental protection industry, and the accountability of all of our members. To hold this position, we invest intensively in research and development of filters.
Meeting customers expectation has always been the focus of our quality management. Constant product advancement set the standard for new solutions in filtration technology.
