Pogo Pin for Smart Bracelet, Spring Loaded
| Price: |
US $ 0.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
101346-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Brass |
| Plunger Material: |
Brass |
| Spring Material: |
Stainless Steel Wire (Swp Available) |
| Body Plating: |
Gold Plating Over Nickel Plating |
| Plunger Plating: |
Gold Plating Over Nickel Plating |
| Durability: |
10,000 Cycle Min. |
| Contact Resistance: |
30m Ohm Max. |
| Voltage Rating: |
36V DC Max. |
| Current Rating: |
2.0A (Big Current Available) |
| Certification: |
RoHS Compliant |
Product Description
Pogo Pin for Smart Bracelet, Spring Loaded
Product Description:
| Part No. | A | B | C | D | Force (gf) |
| 101164-1 | 1.30 | 7.00 | 1.80 | 8.30 | 80+60/-20 |
| 101238-1 | 1.60 | 6.30 | 1.60 | 7.90 | 120±30 |
| 101328-1 | 1.00 | 5.60 | 2.80 | 6.90 | 50±20 |
| 101339-1 | 1.00 | 5.10 | 1.30 | 5.60 | 150±35 |
| 101346-1 | 1.30 | 5.60 | 1.30 | 7.35 | 70 Min |
| 101468-1 | 1.00 | 4.20 | 1.00 | 4.50 | 70±25 |
| 101483-1 | 1.30 | 6.60 | 1.30 | 6.65 | 70 Min |
| 101505-1 | 1.20 | 5.40 | 1.20 | 6.50 | 90 Min |
| 101513-1 | 0.80 | 4.80 | 0.80 | 5.40 | 70 Min |
| 101514-1 | 0.70 | 4.30 | 0.70 | 4.50 | 80 Min |
| 101515-1 | 1.00 | 5.30 | 1.00 | 6.30 | 80 Min |
| 101524-1 | 0.70 | 4.50 | 1.00 | 4.90 | 80 Min |
| 101595-1 | 1.00 | 7.20 | 2.80 | 9.20 | 80 Min |
| 101745-1 | 1.30 | 16.60 | 1.80 | 18.00 | 80 Min |
| 101755-1 | 1.00 | 7.20 | 2.80 | 9.20 | 80 Min |

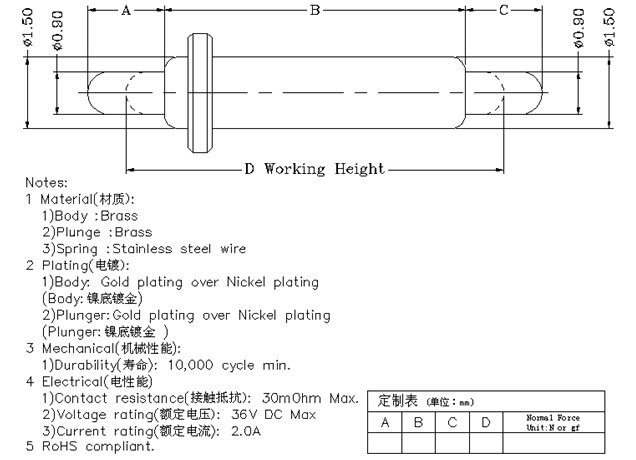

We have various plastic housing dimensions and pogo pin dimensions for choice. We can also make custom pogo pin connector for you. Pls send your specific requirements or drawing. We will evaluate whether we can make it for you.Customization:Top-Link specializes in pogo pin connector with low profile, fine pitch, heavy-loaded current and high durability.For double head type pogo pin, please provide your parameters according to the picture below.
Application:AV equipemnt, health care equipment, automotive, data collection terminal, data communication device, wire equipment, etc.Packaging & Shipping:Packaging:
Bulk: aluminum foil bag.
Reel: diameter Φ330mm; carrier tape width: 12, 16, 24, 32, 44mm.
Shipping:
1) By courier: DHL/UPS/FedEX/TNT/etc. (fast, door to door).
Normally, it will take 3-7 days from China to destination country. Please note that some remote places will take 1-3 days more.
2) By air.
3) By sea.
Please choose your convenient shipping mode according to your needs.
Our Services:
Customized service:
a) We are capable of providing customized service for type selection, structure design, product application, non-standard part development, and assisting customers in solving problems of design, application and workmanship.
b) Strong R&D ability and simulation analysis ability which shorten development time, reduce development cost and increase the success rate of development.
Swift response:
Swift sample making: brand new sample, approx. lead time 5-7 days;
Swift production: approx. lead time 5-12 days.
Track the delivery until goods are received.
100% guarantee of all our products:
a) 5 sets of force and contact resistance tester on assembly lines, rare in this industry, guarantee 100% quality .
b) No customer complaint about product's functionality in 10 years, because of our continuous improvement of workmanship and quality.
c) 5 sets of Cincom R07 high precision CNC lathes imported from Japan, upcoming high precision MIKRON lathe imported from Switzerland.
