| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Xn |
| Model Number: |
Xn-Zxd |
| Filter Media: |
New Composite Nonwoven Fabric |
| Porosity: |
1 Micro |
| Gasket: |
EVA |
| External Frame: |
Aluminum Alloy or Galvanized Frame |
| Efficiency: |
F5(White) |
| Certification: |
RoHS |
| Structure: |
Portable |
| Usage: |
Hospital/Medical/Industy/Engineering |
| Purifying Technology: |
Midium Effiency Filter |
| Type: |
Bag Filter |

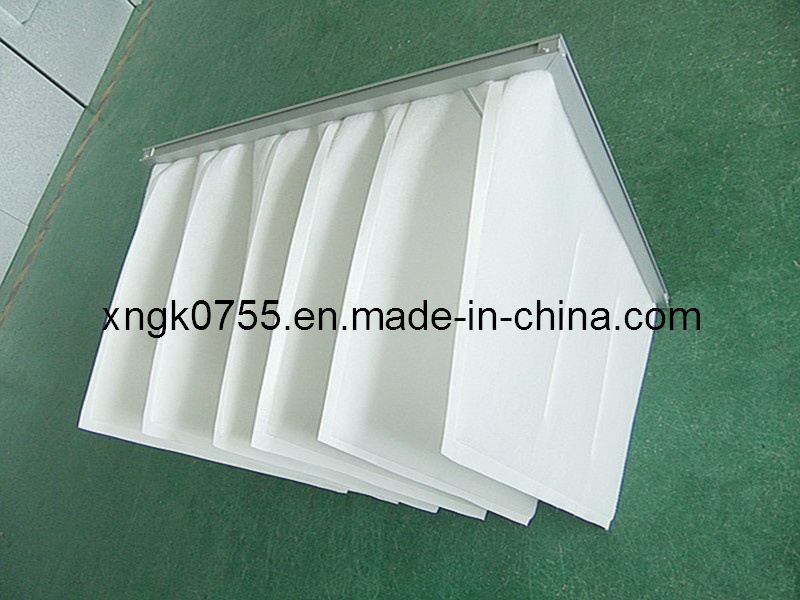

Product Description
Feature
1. Reusable times
2. Small resistance
3. Large airflow
Character
1. Filter material: Fiberglass, synthetic fiber or new composite nonwoven fabric
2. Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange), F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
3. Use the highest temperature, humidity: 80C, 80%
4. The bag color can on your demand not only one color for one efficiency.
5. Widely used for AHU, in the intermediate filtration of air conditioning system
6. According to user requirements to customize different specifications and types of filter.
|
model |
Outside Dimensions |
Rated air flow |
Initial resistance |
efficiency
(class) |
color |
pockets |
|
XN-ZXD-13 |
495× 295× 600mm |
1300m3/h |
50Pa F5
55Pa F6
60Pa F7
65Pa F8
|
40-50% F5
60-70% F6
75-85% F7
85-95% F8
colorimetric |
F5 White
F6 Green
F7 pink
F8yellow |
5 |
|
XN-ZXD-22 |
495× 495× 600mm |
2200m 3 /h |
5 |
|
XN-ZXD-16 |
595× 295× 600mm |
1600m 3 /h |
6 |
|
XN-ZXD-27 |
595× 495× 600mm |
2700m 3 /h |
6 |
|
XN-ZXD-32 |
595× 595× 600mm |
3200m 3 /h |
8 |
Shenzhen Xiangnan High-Tech Purify Machine Co., Ltd., is one of the earliest professional enterprises engaged in the design and construction of clean engineering of central air conditioners and the research and production of air filtration and purification equipment in South China Region, integrating R&D, design, production, sale and service. The company provides customers with high-quality clean technology service and purification equipment with stable quality and reasonable price. Thanks to our stable product quality and considerate after-sales service, we have won the trust of many high-tech enterprises.
Our business department is composed of engineering division and purification equipment business division. The engineering division absorbs excellent technicians in the industry, in charge of businesses such as central air-conditioning engineering, clean air-conditioning engineering, energy-saving renovation engineering, air-duct cleaning engineering and so on; And the purification equipment business division has domestic advanced automatic production equipment for efficient air filters without partition and two production lines for efficient air filters with partition. The air filters are produced in accordance with three standards, namely GB/T 14295-2008, GB/T 13554-2008 and GB/T 6105-2008 issued by General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China (AQSIQ) and Standardization Administration of China (SAC) on November 4, 2008. Its products include primary air filters, MID-efficient air filters, sub-efficient air filters, efficient air filters, super-high efficiency air filters, heat-resistant or humidity-resistant efficient air filters, air showers, transfer windows, FFU air filtration units, clean benches, efficient delivery outlets and so on. In addition, the company also sells instruments and equipment special for clean workshops and dust-free coating production lines at home and abroad.
Business Strategy: To win the trust of customers by reasonable price and high-quality products.
