| Prod Model: |
80" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
80 Inch |
| Resolution: |
1280 X 1024 |
| Interface Type: |
USB |
| Certificate: |
CE,RoHS,FCC |
| Services: |
OEM & ODM |
| Warranty: |
3 Years |
| Fit For: |
TV&Monitor&LCD&LED&Kiosk |
| Color: |
Black |
| Function: |
Plug and Play Compatible |
| Skype: |
Riotouch010 |
| Screen Size: |
>60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description

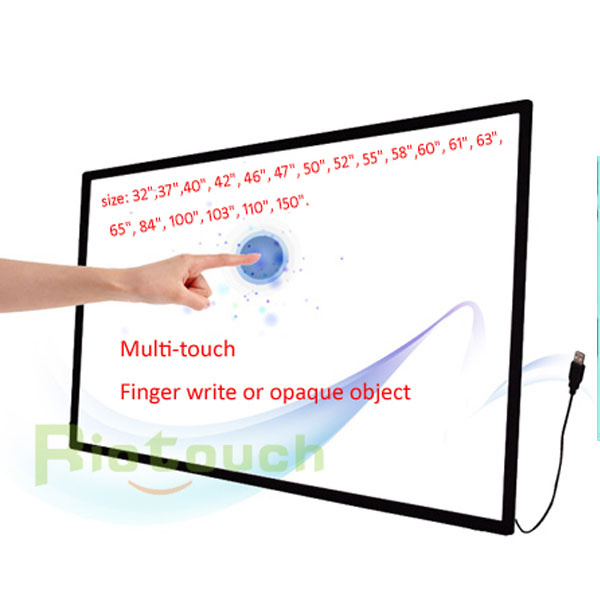

Plug and Play USB 80" 80 Inch Interface Infrared (IR) Multi Touch Screen Overlay For School, Education,BusinessBrief description:
IR Large multi touch screen frame 1.2- 32 touch points 2. OEM service 3.IR multi touch screen panel Plug and Play USB 80" 80 Inch Interface Infrared (IR) Multi Touch Screen Overlay For School, Education,Business

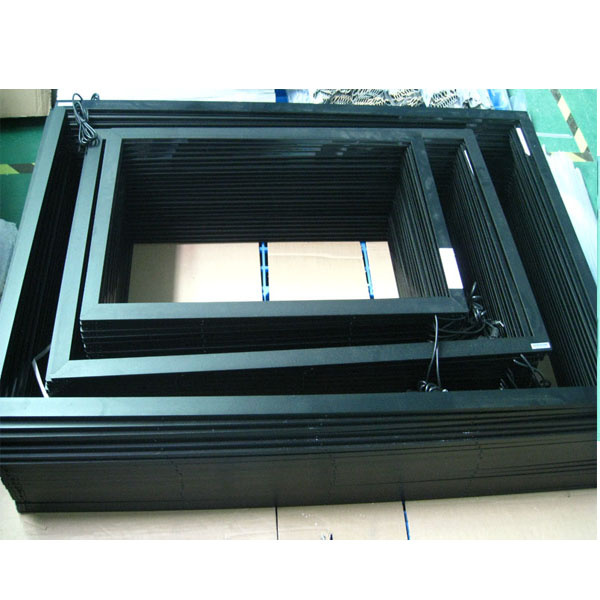

RioTouch L series large size infrared multi touch screen panel kit is the latest developed infrared touch screen, its slim frame can match completely the monitors or displays in thin-frame, ideally upgrading the visual appearance of whole device. Unlike most other technologies, the Infrared based design offers superb image clarity. The original image quality is preserved because there is no film in front of the display. After a simple installation, the screen can be operated with either a finger, with or without glove or a pen.
Available size: 32",37",40", 42", 46", 47", 50", 52", 55", 58",60", 61", 63", 65", 84", 100", 103", 110", 150".
Features: - Infrared touch
- Finger touch.
- Easy to install or remove, no need to open up the monitor or computer case.
- Eliminates the electrostatic and reduces the radiation generated from the monitor.
- Activated on touch by almost anything - finger, fingernail, gloved hand or stylus.
- Remain left-right mouse-button functions on screen.
|
|
Product Overviews
Specifications
General |
| Touch Technology | Infrared Touch |
Performance |
Resolution(Interpolation) | 4096*4096 |
Resolution(Interpolation) | 16:9 |
Linearity Error | 1.5mm |
Response Speed | <20ms |
Mechanical |
Input Method | Finger, gloved hand, or opaque object |
Touch Times | Unlimited |
Touch Activation Force | No minimum touch activation force is required with IR touch technology |
Minimum Touch Object | 5mm |
Environmental |
Temperature | Operating: -20°C ~ 70°C |
Storage: -40°C ~ 85°C |
Relative Humidity | Operating: 90%(noncondensing at max 40°C) |
Storage: 90%(noncondensing at max 40°C) |
Altitude | Up to 3,000m |
Life Time | At least 7-year |
Electrical |
Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
Power Supply | USB, power ripple max.200mV rms |
Power | <2W, operating current<200mA |
Agency Approvals | CE, FCC Class B |
Application:
1. Industrial equipment
2. Medical equipment
3. Office automation and finance
4. POS, ATM, KTV, Lottery and gaming machine
5. Information Kiosks and 4S shops
6. Retail chain and communication
7. Libraries,museums and exhibitions, tablet PC,
8. Transportation, stations and government lines
9. 3D Visualisation /360 Deg Walkthrough
10. Interactive touch table and AV equipment
Packaging & Shipping

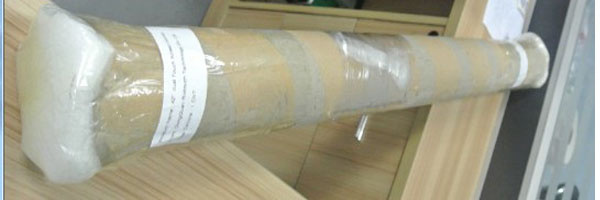

Package : packed by pearl bag and then into carton,wooden box outside when necessary
Delivery time: 4-10 working days after the payment
Our Services
1.We supply Education Software for free if you buy the Touch screen monitor or Interactive Whiteboard from Riotouch.
2. We will supply Software OEM Service for our VIP customer (The customer who order above 100pcs whiteboard or 20pcs touch monitor could be our VIP customers)
3.Cheaper Price with high quality products.
4.Fast delivery and excellent sale and after-sale service
5.3 years warranty of touch frame is guaranteed
FAQ
1. Q: What's the warranty and service?
A: We provide OEM and ODM service and customized service,3 years warranty for SKD,1 year warranty for others
2. Q: How to assemble and use the products?
A: Please check the user's manual for reference
3. Q: Whether to provide any teaching software?
A: Yes, we provide free education software
4 Q: How to make the order?
A: Send detailed inquiry to us, then we will reply you with the Proforma Invioce. Make the payment after you confirm the PI. We ship out the products by express or by sea within 4-7 days after we receive the payment. Then you will get the cargos soon.
RioTouch is a professional manufacture of infrared touch screen, infrared frame, interactive whiteboard and touch screen kiosks. Also we have an enthusiastic team to provide you with solutions in many fields like hometheater, education, corporation, training and games. We aim to make everything easy and help you to turn your ideas and designs into reality.
RioTouch future research willmainly concentrate in the visual multi-touch technology development, interactive educational software development, interactive applications softwaredevelopment.
Riotouch is committeed to be:
1. Professional provider of human-computer interactive techniques.
2. China leading Infrared interactive whiteboard technology solution provider.
3. China leading infrared whiteboard SKD supplier.
4. China leading touch screen manufacturer
