Plate Ice Maker

Plate Ice Maker
Price: US $ 5000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: FIP-50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: China
Certification: CCC
Condition: New
Ice Shape: Plate

Product Description

QUICK DETAILS OF PLATE ICE MAKER
1. bitzer compressor
2. air cooled condensor
3. capacity 5 tons/day
4. refrigerant R404
5. Siemens PLC controller

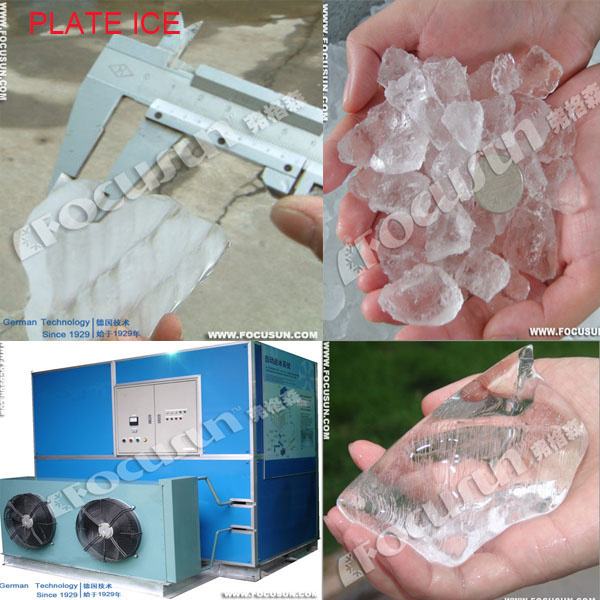

Introduction of plate ice

Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life.



APPLICATIONS OF PLATE ICE maker

Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and aquatic insulations.


Plate Ice maker principle:

When the refrigeration system begins operating normally, the water in the tank below is transported from the cold water tank to the cold water sprinkler by the cold water pump. It is then evenly sprinkled on the surface of the evaporator. Through the cycle working of the refrigerant, some water is created into plate ice, while the water which does not become ice returns to the cold water tank below and waits for the next water cycle. After a period of time the water cycle and refrigeration stops and the water and overheating refrigerants gas begin a heat exchange with the plate ice at the same time. The plate ice then loses adhesive force and the ice drops into the ice crushing gadget due to gravity. After the ice is off the water temperature becomes low and it returns into the water sink waiting the next cycle.

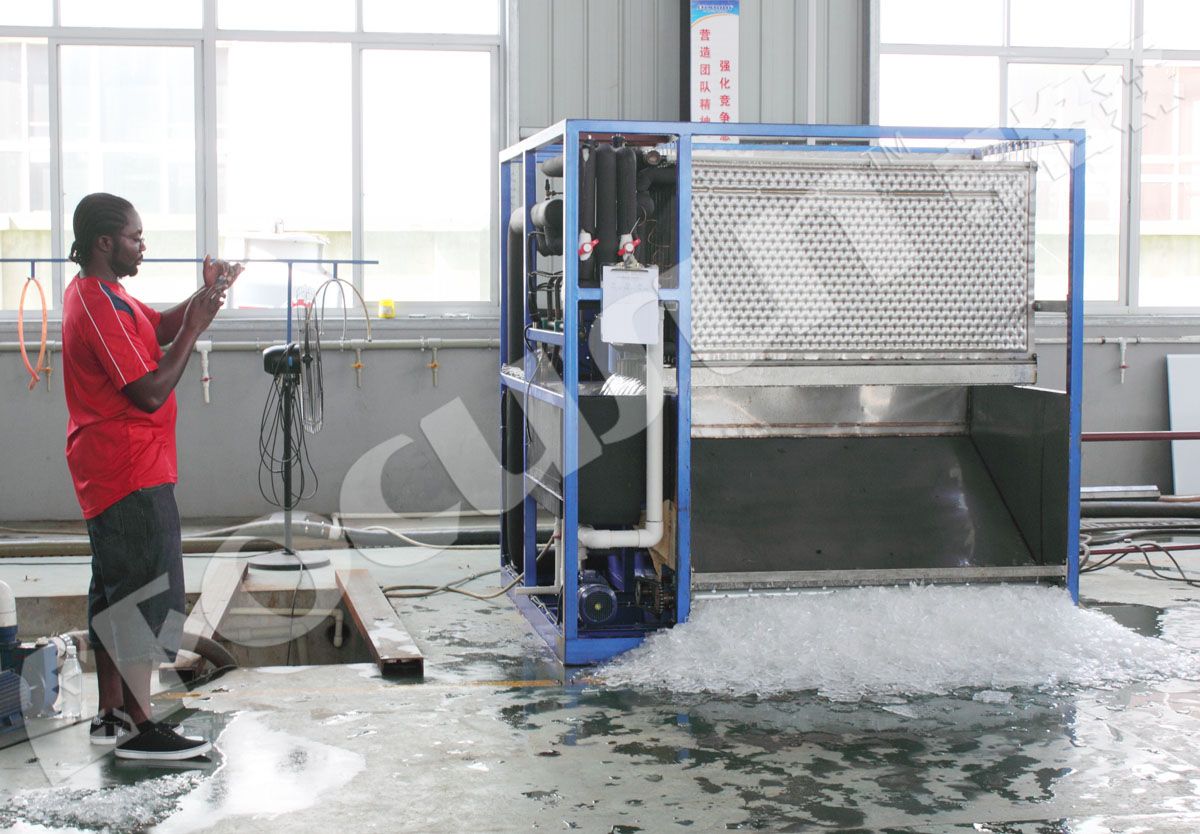

PICTURES OF PLATE ICE maker WHEN ICE DOFFING PROCESS



Perfect service system:



All Focusun ice machines come out with 15 months full warranty. If the machine breaks down in 15 months, Focusun will send the parts for free, even send the technician over if situation needed. When beyond the warranty, Focusun will supply the parts and service only for factory cost.

Process:Please provide the copy of Sales Contract and describe the problems appeared.
Problems confrimation:
Slight problem:Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
AWe will dispatch our Quality and Problems Appraisers to make a confirmation.
BHave a negotiation of the compensation and sign agreements
COur After-Sales Department will perform the duties as the agreement







Dear friends, don't hesitate to send your inquiry if you are interested!

We would be very glad to be on service for you, as the most professional ice machine manufacturer with the biggest factory base in China, we are pleased to attach our best offer. We are definitely to contact you within 3 days after getting your inquiry.



Subject Unit Technical parameter
Powersupply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 5000
Temperature Ambient temperature   35
Waterinlet temperature   20
Operating power Operating power of cutter Kw 0.75
Operating power of cold water pump Kw 0.75
Warm water pump Kw 0.55
Total running power Kw 25.15
Installment power Kw 30
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 37.1
Operating power Kw 20.9
Compressor COP/EER Kw/kw 1.78
Horse power Hp 30
Condenser Fan power Kw 2.2
Cooling way   Air cooling
Installment    Externaly installed
Dimension Size of ice maker (L×W×H)(mm) 2000×1800×2200
Size of condenser (L×W×H)(mm) 2280×1200×1450
Size of water feeding pipe   1/2"
Operating weight Operating weight of plate ice maker Kg 1550
Operating weight of condenser Kg 168
Water supply pressure requirement Bar 1

Focusun Refrigeration is the most professional manufacturer in China, specialized in designing and manufacturing of high quality ice making machines, such as: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We have earned the position of dependable supplier among a vast global clientele due to consistency in quality of our product range and services offered to the clients.

As a well established manufacturer and exporter, we lay special attention to our manufacturing process and delivery of products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine. We take utmost care of quality at every stage of the manufacturing process. Our staff of highly qualified engineers combines the benefits of irreplaceable practical experience with the sophisticated accuracy of our own interactive graphics computer system enable us to provide high quality product, prompt deliveries, dependable service, and outstanding customer satisfaction.

Focusun is known across the country for our premium quality on the products we offer. We have a hi-tech production unit that uses the latest technology and the most modernized machinery. We have a strong and proficient workforce, comprising of technically skilled professionals and efficient workers. Our research and development wing is our asset that develops and incorporates innovative ideas and products.

Our products: Flake ice machine, cube ice machine, tube ice machine, and block ice machine are globally known for their dimensional accuracy, high efficiency & durability and they are used in various fields such as aquatic food processing, supermarkets, healthcare centers, man-made skiing resort, mines, large-scale concrete construction, etc. The product model ranges from small-sized ice machines with a daily output of 230kgs to large-sized sets of ice making system up to 60tons in 24hours and 85% of our ice making machine's components are imported and all undergo rigorous monitoring and quality control system to ensure superb quality of our flake ice machine, cube ice machine, tube ice machine, and block ice machine.

We pride ourselves on quality, service and pricing, and believe that all three areas are equally important to ensure the long-term success of your overseas purchasing program. Our sustained relationship with customers serves as testimonial for our high quality products. The fusion of superior quality and reasonable prices make our products capable of influencing anyone in the whole world. Our reputation in the market is synonymous with high quality, updated technology and dedicated approach.
