| Prod Model: |
MIFARE business Card |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chip: |
MIFARE Classic, MIFARE DESFire, MIFARE Plus etc |
| Certificate: |
Rosh, CE |
| Dimensions: |
Cr80 or Customized |
| Thickness: |
0.84mm |
| Application: |
Access Control, Time Attendance, etc |
| Personazation: |
Logo Printing, Barcode Printing etc |
| Mass Production: |
7-8 Days |
| MOQ: |
500PCS |
| Card Surface: |
Matte/ Gloss Finish |
| Sample: |
Free |
| Function: |
Information |
| Material: |
PVC |
| Frequency: |
High Frequency |
| Type: |
MIFARE Business Card |
Product Description

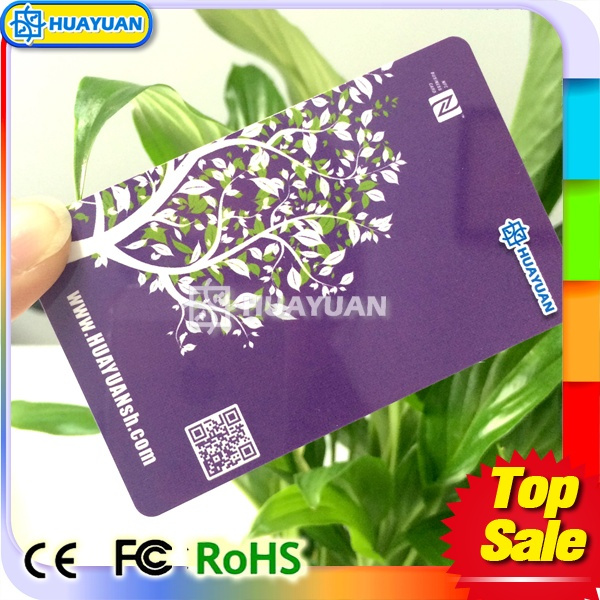

MIFARE Classic® 1K business Card Key Features:
- Card dimensions: 86 x 54mm
- Thickness: 0.84mm
- Material: PVC, PET
- Surface: lamination (gloss/mate)
- Chip: MIFARE Classic® 1K (NXP original)
- Frequency: 13.56MHz
- RF Protocol: ISO 14443A
- Data storage time: minimum 10 years
- Operating temperature: -20 to +60°C
- Stockage temperature: -20 to +65°C
- Package: 200pcs per Inner Box; 5000pcs per Carton, each Carton gross weight is 35kgs
Description :
- IC manufacturer: NXP founded by Philips
- Wafer die: MF 1 IC S50
- Unique serial number (4 Byte and 7 Byte)
- Function: Read/Write protect by password
- Memory: 1K-Byte EEPROM(16 sectors)
- Frequency: 13.56MHz
- RF protocol: ISO 14443A
Huyauan is manufacturer of RFID smart Card and plastic card. Such as the discount card, student card, game card, membership card, hotel card, playing card, telecommucation card, loyalty card, calling card, phone card, key card etc.,
| Printing Option: | - Logo/Graphics/Photo
- Serial Number
- DOD Number
- Barcode printing
- Overlay Foil
- Signature Panel
- Name Personalisation
- Photo Personalisation
Magstripe:
- LoCo300
- HiCo2750
- Magstripe Encoding
Various:
- Hologram
- Security Printing
- Chip Encoing |
| Chip | - 125KHz RFID: EM4102, EM4100, EM4200,TK4100,GK4001; EM4305,EM4550, EM4069; T5577; Hitag1, Hitag2, Hitag S256 etc |
- 13.56Mhz ISO14443A: NXP MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE Ultralight® EV1, NXP MIFARE Classic® Mini, MIFARE Classic® 1K, MIFARE Classic® 4K
NXP MIFARE® DESFire® EV1 2K, MIFARE® DESFire® EV1 4K, MIFARE® DESFire® EV18K
NXP MIFARE Plus® X 2K, MIFARE Plus® X 4K, MIFARE Plus® S 2K,MIFARE Plus® S 4K
-13.56Mhz ISO18082: NTAG203 NTAG213,NTAG215,NTAG216, Topaz512 etc
- 13.56Mhz ISO15693: ICODE SLI; Tag-it 2048 etc |
| - 860Mhz-960Mhz : ISO/IEC 18000-6C EPC C1 G2,NXP UCODE G2,MONZA,HIGGES etc |
Company Profile:
When the Smart Card industry kicked off in mainland China 18 years ago, HUAYUAN electronic were at the forefront. In 1995, we began by producing plastic magnetic cards. We are the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line. Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area.
Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
HAUYUAN had also established good and strategic partnership with many international leaders in Smart Card and RFID industry. Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products
With experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
How to buy RFID card?
1. You give us the specification ( such as size, quantity, artwork of our product).
2. We send quotation.
3. After price confirmed, you should send us artwork, we will make digital approved.
4. We start production after payment received.
If you have any question, please contact us for further details. We have kinds of cards for your needed.
Awaiting for your enquiry.
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
