| Prod Model: |
QOMA |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Cooling Method: |
Direct Cooling |
| Installation: |
Wall Mounted |
| Type: |
Ventilation Fan |
| Speed: |
1 Speed |
| Power Supply: |
Electric |
| Material: |
Plastic |
| Application: |
Livestock, Poultry, Greenhouse Ect |
| Timer: |
Without Timer |
| Remote Control: |
Without Remote Control |
| Certification: |
ISO |
| Power: |
1100W |
Product Description

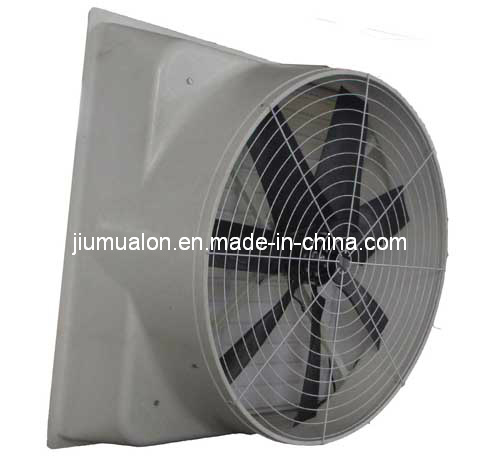

The Technical Data of Firbe exhaust fan for greenhouse, industrial and warehouse
Specification of Exhaust Fan:
1: Frame material of exhaust fan: FRP- Fiberglass Reinforced Plastic
2: Blade material: Nylon and Glass fiber
3: Shutter material: PVC
4: Drive: Direct drive
5: Motor: High quality China Motor.
| Model | Blade Diameter(mm) | Frequency(Hz) | Input Power(KW) | Voltage(V) | Motor RPM | Air Flow(m3/h) | Installation Hole Size (mm) |
| QOMA-FG/1420 | 1270 | 50 | 0.75 | 220/380 | 450 | 45000 | 1420x1420 |
| QOMA-FG/1060 | 920 | 50 | 0.75 | 220/380 | 720 | 32000 | 1060x1060 |
| QOMA-FG/800 | 630 | 50 | 0.37 | 220/380 | 930 | 12600 | 800x800 |
| QOMA-FG/640 | 500 | 50 | 0.25 | 220/380 | 930 | 9000 | 640x640
|
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
