| Prod Model: |
P10 Full Color Outdoor LED Display Module |
| Product Name: |
P10 Full Color Video Function Outdoor LED Display |
| LED Chip: |
Epistar |
| IC: |
Mbi5024 |
| Brightness: |
6000CD/Sq.M-8000CD/Sq.M |
| Cabinet Material: |
Iron/Aluminum/Rental Cabinet |
| Available: |
P10 P8 P6 P4 P2.5 P16 P20 P7.62mm |
| IP Grade: |
IP65 Front/IP54 Back |
| Weight: |
50kg/Sq.M |
| Module Size: |
160mm*160mm |
| Cabinet Size: |
960mm*960mm |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
Product Description

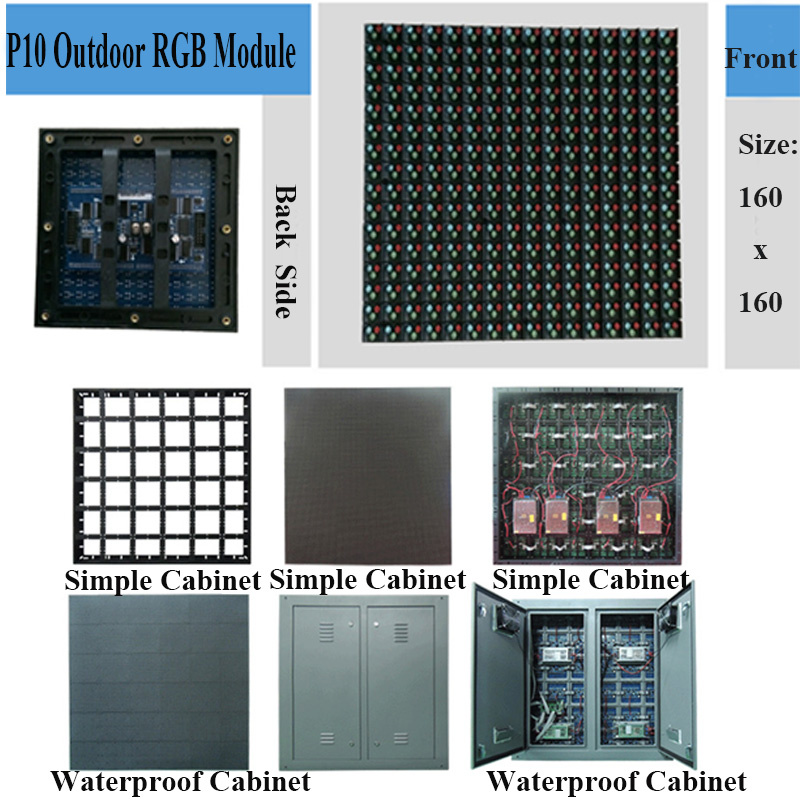

Product Name: Pixel 10mm Full Color Video Function Outdoor LED Display
| Pixel pitch | 10mm |
| Module size | 160*160mm |
| Module density | 10,000dots/sqm |
| Module resolution | 16*16 |
| Pixel configuration | 1R1G1B |
| Red wavelength | Epistar taiwan 625±2nm |
| Green wavelength | Epistar taiwan 525±2nm |
| Blue wavelength | Epistar taiwan 470±2nm |
| Best viewing distance | From 10 to 150 |
| Horizontal viewing angle | 110° |
| Vertical viewing angle | 90° |
| Maximum power consumption | Below 800W |
| Brightness | 7500cd/sqm |
| Gray scale | More than 4096 |
| Control method | Synchronization |
| Driving method | 4Sconstant current |
| Frame frequency | 60Hz |
| Refresh frequency | More than 300 Hz |
| Working voltage | AC220V±5% |
| IP grade | IP65 |
| Working temperature | -20°C±50°C |
| MTBF | More than 5,000 hours |
| Life span | More than 100,000hours |
| Cabinet style | Waterproof cabinet |
| Cabinet size | W640*H640*D120mm |
| Cabinet weight | Less than 28kgs |
