| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection: |
IP 20, No Water Proof, No Dust Proof |
| Compatibility: |
PC, Video Processor, Camera, I-Pad, etc. |
| Control: |
PC Control in Real Time |
| Power Input: |
AC 220V/50Hz; AC 110V/60Hz, ± 10% |
| Pixel Configuration: |
SMD 3 in 1 |
| Weight: |
60 Kg/M2 |
| Chip Brand: |
Epistar / Opto & Silan |
| Signal Port: |
Rj 45 |
| Resolution: |
62, 500 Pixels/M2 |
| FOB Port: |
Shenzhen |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Pixel Density: |
62550 |
| IP Rating: |
IP20 |
Product Description
Pitch 4mm indoor advertising LED display
1. CE. RoHS. FCC. C-Tick authorized;
2. ISO9001: 2008 QC system;
3. 100.000 hours life span;
4. Water proof. Dust proof;
5. AC 90V to 240V power input;
6. Video. Flash. Animation. Graphic. Text available;
7. PC controlled in real time;
8. Installation structure drawing offered FOC;
9. Easy for installation;
10. 2 years warranty offered;
11. 1% spare parts offered FOC;
12. Training in our factory offered FOC;
13. On-line remote service is available;
14. EXW. FOB. CIF accepted;
15. Factory visiting and inspecting is welcome;
16. OEM service offered;
17. Models available:
P4mm. P5mm. P6mm. P7.625mm. P8mm. P10mm. P12mm. etc. For indoor use;
P10mm. P12mm. P16mm. P20mm. P25mm. P31.25mm. etc. For outdoor use;
| LED Specification |
| 1 | LED Chip Brand | Red: Opto / Epistar
Green & Yellow: Silan |
| 2 | Wave Length (nm) | R: 625nm;
G: 525nm;
B: 470nm |
| 3 | Pixel Configuration | SMD 3 in 1 |
| Module & Cabinet Specification |
| 4 | Physics Distance Between Pixels | 4 mm |
| 5 | Physics Pixel Density | 62, 500Pixel/m² |
| 6 | Module Dimensions (W x H) | 128mmX 128mm |
| 7 | Physics Pixel / Module | 32 x 32 = 1024 |
| 8 | Cabinet Dimensions ( W x H xT) | 640mm X 640mm X 160mm |
| 9 | Physics Pixel / Cabinet | 160 x 160 = 25, 600 |
| 10 | Cabinet Weight | 20 kg |
| 11 | Cabinet Material | Steel Cabinet / Aluminum Cabinet |
| 12 | Cabinet Frame | Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use) |
| Screen Specification |
| 13 | Brightness | 2500cd/m² |
| 14 | Viewing Distance (min, max) | 2 - 300m |
| 15 | Power Consumption / Screen | MAX : 1200 w/m² ;
Average: 300 w/m² ; |
| 16 | Drive Mode | 1/16 scan, constant current driving |
| 17 | Refresh Rate | 600 HZ |
| 18 | Frame Rate | 60HZ |
| 19 | Display Flatness | 0.5mm |
| 20 | Maintenance | Back maintenance, replace the module |
| 21 | Led Life Span | 100, 000 hours |
| 22 | Supply Voltage | AC220V/50HZ, ± 10%;
AC110V/60HZ, ± 10% |
| 23 | Operating Temperature | -20º C~+50º C |
| 24 | Operating Humidity | 10%-90% |
| 25 | Storage Temperature | -40º C~+60º C |
| 26 | Viewing Angle | Horizontal: 120° ; Vertical: 65° |
| 27 | Grey Scale | Red, green, blue each 16k |
| 28 | Display Colors | 4096 Billion |
| 29 | IP Rating | IP20 no water proof, no dust proof |
| 30 | Aging Time in Factory | More than 72 hours constantly |

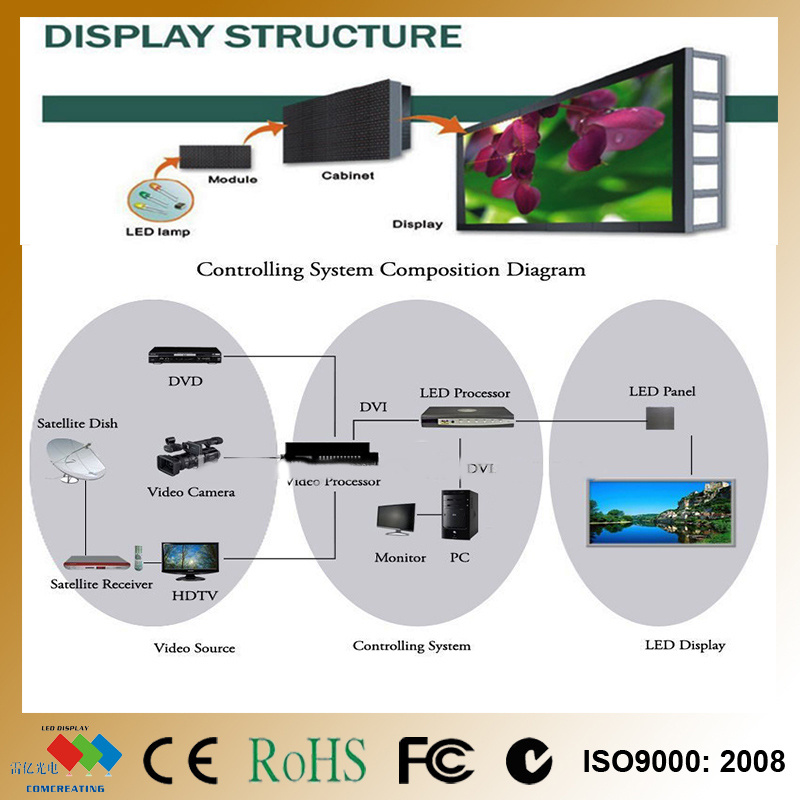

| Control |
| 31 | The Software | LED Studio |
| 32 | System Supported | Win 98 / 2000 / 2003 / XP / WIN7 |
| 33 | Control Mode | Real Time Control (Synchronous) |
| 34 | Display Capability | Flash, Video, Graphic, Text |
| 35 | Signal Supported | RGB, VGA, DVI, etc. |
Product Features: High flexibility:Our company has made researches on various outdoor circumstances, and applied the research achievements to design systems, so as to obviously improve both the flexibility and reliability of our products in various bad circumstances outdoors. Rich colors:with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red, green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images. High brightness:The products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine. Good effect:The products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers. High reliability:The products adopt the static scanning technology and the module design technology to offer higher reliability and stability. Diversified display modes:The products support multiple display modes. Easy operation:The products adopt popular video playing software to facilitate system operations. Available range:Government plazas, recreational plazas, large-scale entertainment plazas, busy business and commercial centers, ad information boards, commercial streets, and railway stations etc.. Pre-sales support1. We offered technical advice to our customers before buying our products.2. Help customers to choose suitable products within budget with most economy benefit.3. Design the framework structure to install our led products with technical drawing.4. We offered software customization for our customer's specific usage. After- sales service1. We promise our customers more than just two years warranty service! We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.2. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.3. We offered training to our customer who includes operating and maintenance of our products.
