pH-10 Single 2-Way Full Range 10 Inches Subwoofer

Price:	US $ 200-700/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Send Inquiry

Showroom Product Company Profile

Prod Model:	PH-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	2-Way Full Range PRO Audio
Crossover:	Asymmetric Internal Passive Crossover
Lf Component:	190mm Magnet with Aluminum Frame
Hf Component:	120mm Magnet
Size Options:	10", 12"
Installing:	Hanging, Pole Mount, Stand, Lying Down
Diaphragm:	Paper
Capacitor:	Solen
Clients' Logo:	Acceptable
Warranty:	3 Years
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Entertainment Venue
Certification:	CCC
Noise:	Nun
Monitor:	Nun
THD:	<0.05%

Product Description

Features:

a. Bass reflex design on the back;

b. Imported multilayer birch plywood;

c. High-quality durable polyesterimide paint;

d. B&C HF loudspeaker

e. Wide and smooth frequency, clean voice and perfect sound resolution.

1.Description:

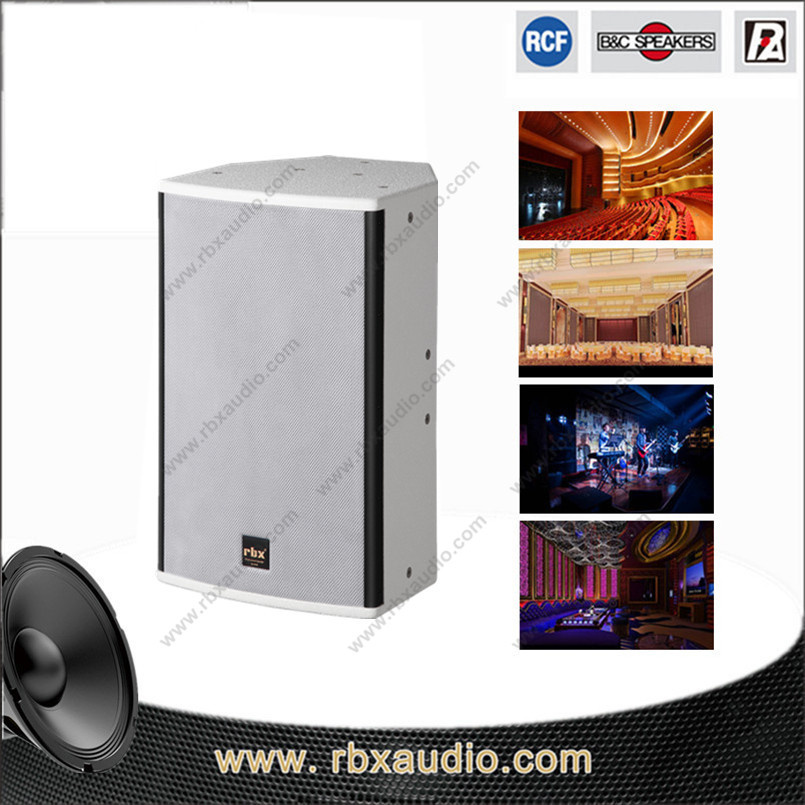

PH-10 is a two-way full-range speaker. To create a compact polygonal design, whose surface is painted with high-quality durable polyester coatings.

PH-10 is equipped with a 10" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a clean sound, a perfect sensitivity and a wide smooth frequency.

2. Application:
It can be applied in theatre, multi-function hall, music bar and high end night club.

3. Technical data:

Model	pH-10 Single 2-Way Full Range 10 Inches Subwoofer
Drivers	LF: 1×10"voice-coil: 2"
Drivers	HF: 1×1"voice-coil: 1.7"
Frequency(±3dB)	50HZ-20KHZ(±3dB)
Dispersion(-6dB)	Hor:90° × Vert:60°
Sensitivity(1m/1W)	98Db
Maximum SPL	122dB Continuous/128dB Peak
Nominal Impedance	8 Ohms
Input power	Rate: 300W/Peak: 1200W
Recommend AMP	600W to 1000W into 8 Ohms
Connectors	2 × Speakon NL4MP
Dimensions	505 × 320 × 345mm (H × W × D)
Master carton	575 × 330 × 400 (H × W × D)
Net Weight	22.5Kg

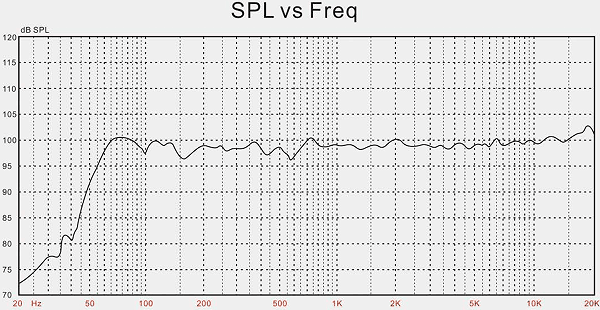

4. Frequency response:

5. Construction:

Physical	Polygonal
Enclosure	Imported multilayer birch plywood
Grille	Die-casting steel net with circular hole, black sponge inside
Paint	Polyester coatings (whose color can be customized.)
Handing Position	M8 screw of installation holes (18 pcs)
Pole Mount	Bottom: Φ35mm support base

6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

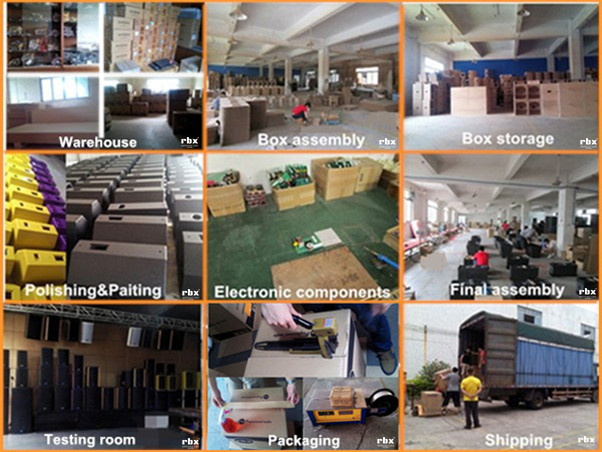

7. Company View:
