| Prod Model: |
PH-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
190mm Magnet with Aluminum Frame |
| Hf Component: |
120mm Magnet |
| Size Options: |
10", 12" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Entertainment Venue |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Bass reflex design on the back;
b. Imported multilayer birch plywood;
c. High-quality durable polyesterimide paint;
d. B&C HF loudspeaker
e. Wide and smooth frequency, clean voice and perfect sound resolution.
1.Description:

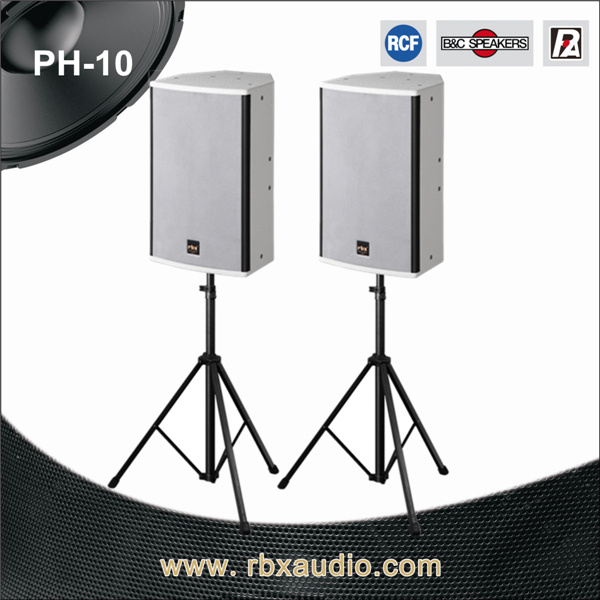

PH-10 is a two-way full-range speaker. To create a compact polygonal design, whose surface is painted with high-quality durable polyester coatings.
PH-10 is equipped with a 10" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a clean sound, a perfect sensitivity and a wide smooth frequency.
2. Application:
It can be applied in theatre, multi-function hall, music bar and high end night club.
3. Technical data:
| Model | PH-10 Pro Portable Passive 2-way speaker driver |
| Drivers | LF: 1×10"voice-coil: 2" |
| HF: 1×1"voice-coil: 1.7" |
| Frequency(±3dB) | 50HZ-20KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | 98Db |
| Maximum SPL | 122dB Continuous/128dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 300W/Peak: 1200W |
| Recommend AMP | 600W to 1000W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 505 × 320 × 345mm (H × W × D) |
| Master carton | 575 × 330 × 400 (H × W × D) |
| Net Weight | 22.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (18 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
