| Prod Model: |
JF-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Air Cooling Fan |
| Material: |
Metal |
| Installation: |
Pedestal |
| Certification: |
CE |
| Remote Control: |
Without Remote Control |
| Timer: |
Without Timer |
| Application: |
Industrial |
| Power: |
100W-300W |
| Power Supply: |
Electric |
| Speed: |
3 Speed |
Product Description

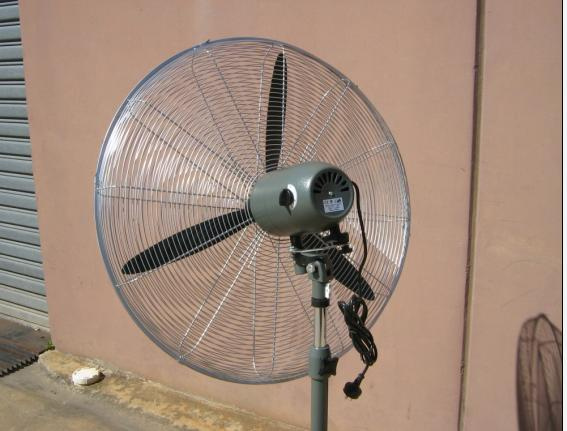

Industrial pedestal fan Features:
1, Optimum fan blade structure make it light weight, large air volume, low noise and long lige time of electrical motor.
2, It can be used for ventilation and environment imprvement in the workshop and warehouse of industrial and mining enterprises.
3, The height can be adjusted according to demand.
4, It can be allocated with three class speed adjusting swith and electroplating dense net cover.
5, The electrical motor use the interior fuse protection device, safe and reliable.
Industrial stand fan, N/W: 23kgs. Plate guard net, can adjust height. Cast alu. Gear box in the motor, cast iron motor housin
Strong Force industrial stand Fan, pedestal fan.
Strong force electric industrial fan is applicable for sun-stroke prevention, cooling purpose in the occasions such as factory workshop, warehouse, basement, canteen etc. The service enviromental temperature of the fan does not exceed 40° C. It can be used in the non-corrosive gas with no particle dust.
Strong force electric fan is mainly composed of motor, swing mechinism, fly, screen cover, wall type, floor type support frame, the fly has been formed by aluminum, die-casting with static balancing correction, smooth running and high efficiency.
Remark:
This one type has the best quality galvanoplastics guard net, oscilation angle 0-90 degree. Has three speed. Can adjust the height. Regarding the motor, that is sand-cast technical. Cast iron motor shell, special structure that deifferent from general type. Has best quality cast al. Gear box in the inner of the motor, so, that ensure all the fan has the best quality, can working for 24H/DAY. And it's N/W is 8.5kgs, 68cm dia of the base, N/W is 7.5kgs, and be carved. And we can make it as 220V/240V/380V. All the parts are thicker than general type.
|
SIZE |
MODEL |
AC V/Hz |
POWER |
AIR DELIVERY
M3/MIN |
SPEED |
NOISE |
|
30" |
JF-75 |
220/50 |
300 |
460 |
1400 |
50 |
|
30" |
JF-75 |
380/50 |
280 |
460 |
1400 |
50 |
|
26" |
JF-65 |
220/50 |
230 |
250 |
1400 |
47 |
|
26" |
JF-65 |
380/50 |
210 |
250 |
1400 |
47 |
|
20" |
JF-50 |
220/50 |
150 |
183 |
1400 |
45 |
|
20" |
JF-50 |
380/50 |
140 |
183 |
1400 |
45 |
Zhejiang Yitong Machinery & Electronics Co., Ltd. is a modernized enterprise integrating development, research, design and manufacture together.
We own advanced CAD auxiliary design system, specialized processing center and perfect testing facilities. Our main products are air-conditioning ventilating fans, axial fans, centrifugal air machines, mixed-flow blowing ventilators, diagonal flow ventilating engines, boiler induced draught fans, dusting fans, exhausting fans, concrete vibrators, motors, industrial strong power fans, blowers, motors and electric pumps.
Our products are popular among over thirty provinces and cities in China.
