| Prod Model: |
51D, 52D, 53D, 54D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Alucosuper |
Product Description
1.Brand name: Alucosuper
2.Painting: PCM (PE or PVDF coating) or VCM
3.Standard: ASTM, JIS, AISI, GB
4.Grade: SGCC. SPCC. DX51D, DX52D, DX53D,DX54D
5.Thickness: 0.2mm---0.8mm
6.Width: ≤1400mm or as request
7.Zinc coating: 40-250g/m2
8.Color: Ral code or as the client request
9.Paint Company: PPG Valspar Becker KCC Nippon
10.Packing: Wooden with the waterproof paper
11.Delivery: 25 days
VCM is used in PVC or PET film as a general base film, and then printed different decorative patterns on the sueface, so that the VCM can be use wildly on refrigeator
PCM: Color coating steel sheet:
Protective film - finish coating - prime coating - pretreatment - aluminum/steel coil - back painting
VCM: Colorful film steel sheet
Protective film - PET/PVC film - pretreatment - aluminum/steel coil - back painting

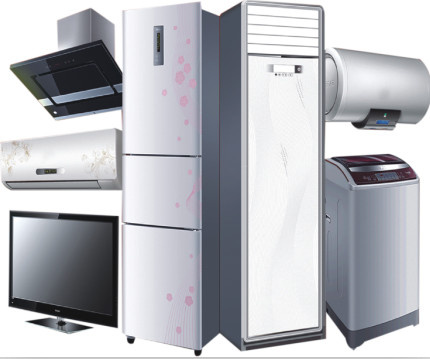

Applications:
1) White board: Washing machine, air-conditions,: Refrigerator, water heater, cabinet for
Frozen food, electric oven, microwave oven, small household appliances, etc.
2) Black board: TV, lateral, plate for LCD, DVD player, voice box, etc.
Product Name | PCM color steel | VCM color steel |
| Thickness of Base Metal | 0.2-0.8mm |
| Painting material | PE or PVDF coating | PVC or PET film |
| Painting/Film Thickness | 7~30μm | 50-150μm |
| Surface Protection | PE protective film | PE protective film |
| Color | Ral code or as request | |
| Surface Treatment | Degreasing and chemical treatment |
| Gloss | 5-105% |
| Coating Hardness (pencil resistance) | ≥H |
| Flexibility (T-bend) | ≤2T |
| MEK resistance | More than 100 |
| Supplying Status | Sheet: Width≤2000mm,Length≤5000mm |
| | Coil: Width≤2000mm,N.W≤5T,Inner Diameter: φ408mm φ505 φ508 |
