| Prod Model: |
HUAXING-PCBA-028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer: |
2 Layers |
| Copper Thickness: |
1oz |
| Surface Treatment: |
Lead Free HASL |
| Delivery Detail: |
3~7 Days |
| Min. Hole Size: |
0.1mm |
| Min. Line Width: |
0.075mm |
| Min.Line Spacing: |
0.075mm |
| Base Material: |
FR-4 |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT&DIP |
Product Description

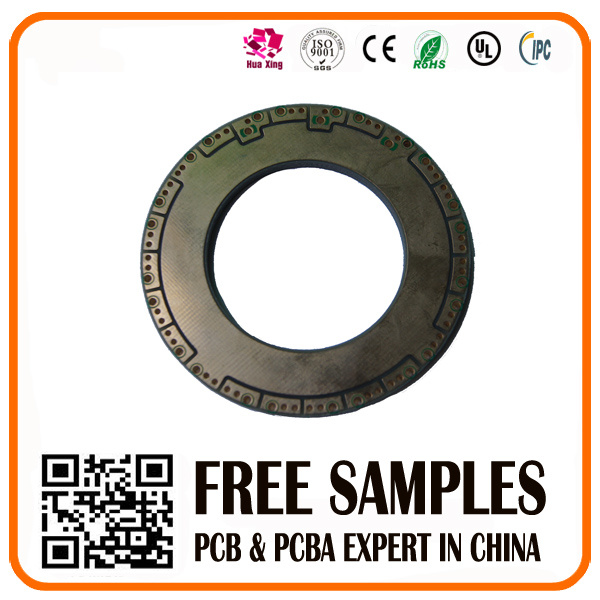

1. Induction cooker controller pcb in the picture description is as follows:
Layer: 2 layer
Material: FR4
Board Thickness: 1.6mm
Surface Treatment: Lead free HASL
Solder Mask: Brown
Copper Thickness: 1oZ
Min. Hole Size: 0.1mm
Min. Line Width: 0.075mm
Min. Line Spacing: 0.075mm
2. Welcome to Hua Xing
-customized PCB&PCBA supplier for 16 years
-PCB&PCBA service
-Contact manufacturing
-ROHS, ISO9000, CE, UL certification
-SMT PCBA one-stop source
-Competitive price, High quality, Good service
3. PCB or PCB Assembly files requests
-Gerber files of the PCB Board
-BOM(Bill of material) for assembly
To short the lead time, please kindly advertise us if there is any acceptable components substitution.
-Testing method & Test fixtures if necessary.
-programming files & programming tool if necessary
-Schematic if necessary
4. Our Advantages
-Our professional engineer can provide PCB design, PCB&PCBA prototype
-Quick and economic delivery term
-Small order acceptable
-Component purchasing, SMT PCBA one-stop source
-ODM and OEM accepted
5. After-service
-All our products have been checked and packaged in good condition.
-If the item you received are defective, please contact us asap: We will replace another new one after we check it.
6. FAQ
In order to assist our customers and expedite the PCB services, we have the detailed frequently asked questions about PCB manufacturing as follows:
---What service can you provide?
We can provide PCB gerber file design, copy and clone, OEM and ODM service
---Are my design files secure when I send them to you?
Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
---For small quantity orders, can you produce prototype PCB?
Yes, Hua Xing PCBA Limited has the capability to produce PCB in any amount. But, the greater the quantity, the greater the cost savings.
---Do you have an order minimum?
We accept order with as low as quantity of 1(piece or panel).
---What is the standard thickness of laminate that Hua Xing PCBA Limited uses?
1.6mm(0.063)
---What are all your options for laminate thickness?
We can handle the following non-standard thickness: 0.2mm(0.0079), 0.4mm(0.016),
0.6mm(0.024), 0.8mm(0.032), 1.0mm(0.04), 1.2mm(0.047), 2.0mm(0.079), 2.3mm(0.091)
---Do you have the capability of manufacturing high frequency materials? Rogers?
While expensive, we can manufacture these materials, contact us for pricing prior to placing an order.
---What options exist for the copper thickness?
0.5oz, 1.0oz, 1.5oz, 2.0oz, 2.5oz, 3.0oz, 3.5oz, 4.0oz, 4.5oz, 5.0oz
---What are the color options for PCB solder mask?
Green, black, blue, red, yellow, white etc
---What are the options for surface finishing?
The options include HASL, Immersion gold, Immersion silver, OSP, lead free HASL and other options you call for.
---What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats
More details about us, kindly scan website: www.ems-pcba.com
If you send us your Gerber Files, PCB specifications and BOM, we will quote for you within 12 hours.
Thanks in advance.
Our manufacturing capacity of PCB&PCBA is in the following table
|
Item |
Mass Production |
Pilot Run Production |
|
Capacity |
Capacity |
|
Layer Counts |
1L_18L, HDI |
20-28 , HDI |
|
Material |
CME1,CME3,FR-4, High TG FR4 , Halogen-free FR4 , aluminium ,Ceramic(96% Alumina) |
|
Teflon,PTFE(F4B,F4BK), Rogers(4003,4350,5880) Taconic(TLX-8,TLX-9), Arlon(35N,85N)etc. |
|
Material Mixed Laminate |
4 layers -- 10 layers |
12 layers |
|
FR4+Ro4350 , FR4+Aluminium , FR4+ FPC |
|
Maximum Size |
610mm X 1200mm |
1200 - 2000MM |
|
Board Outline Tolerance |
±0.15mm |
±0.10mm |
|
Board Thickness |
0.125mm--6.00mm |
0.1mm--8.00mm |
|
Thickness Tolerance ( t≥0.8mm) |
± 8% |
±5% |
|
Thickness Tolerance( t<0.8mm) |
±10% |
±8% |
|
Minimum Line / Space |
0.10mm |
0.075mm |
|
Trace width Tolerance |
15%-20% |
10% |
|
Minimum Drilling Hole (Mechanical) |
0.2mm |
0.15mm |
|
Minimum laser hole |
0.1mm |
0.075mm |
|
Hole Position/hole Tolerance |
±0.05mm PTH:±0.076MM NPTH:±0.05mm |
|
Mini hole ring (single |
0.075MM |
0.05MM |
|
OutLayer Copper Thickness |
17um--175um |
175um--210um |
|
InnerLayer Copper Thickness |
17um--175um |
175um--210um |
|
Mini Solder Mask Bridge |
0.05mm |
0.025mm |
|
Impedance Control Tolerance |
±10% |
±5% |
|
Surface Finishing |
HASL, Lead free HASL, Immersion gold, Immersion tin, Immersion Silver. |
|
Plated gold , OSP, Carbon ink, |
|
1-2L Lead-time |
3-7 days |
1-2 days |
|
4- 8L Lead-time |
7-10 days |
2-7 days |
|
10-18L Lead-time |
10-15 days |
4-9 days |
|
20-28L Lead-time |
15-20 days |
|
Acceptable File Format |
ALL Gerber Files,POWERPCB,PROTEL,PADS2000,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 etc. |
|
Quality Standards |
IPC-A-600F and MIL-STD-105D CHINA GB<4588> |
Hua Xing PCBA Limited, is a privately owned company founded in 1998, with a qualified, experienced and dedicated team of professionals, hua xing PCBA limited is able to provide a full compliment of services to our clients with a complete systems design, build, integration and after-sales support.
Hua Xing PCBA limited offer a full suite of design services; From schematic design, board layout, component selection, firmware design, mechanical design to PCB, PCBA, chip cloning, we can help you procure components, PCB FPC making, mold making, plastic injection, assemble, package, and deliver the finished goods to you, or even drop ship to a third party. If you require only one aspect of the above, we have the flexibility to adapt to your needs and requirements.
Printed circuit board assembly. Wire harnessing, sheet metal assembly, final packaging, you name it and we are able to successfully complete it to your demanding specifications. You want to supply the pcbs or have parts in inventory you would like us to use? Full or partial consignment orders, whatever works best for you.
We welcome prototype and small run quantities as well as larger production volume. Since we are here to serve you, we will take the time to get to know your products and to understand your needs. No detail is unimportant. Our flexibility means that nothing is too small, too large or too difficult.
Contact us and experience the difference and quality of hua xing PCBA limited. We are looking forward to working with you.
