| Prod Model: |
S230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
S230 |
| Cylinder: |
1.6L*2 |
| Hopper: |
9.5L*2 |
| Output: |
30-35L/Hr |
| Beater: |
Beater |
| Warranty: |
1 Year |
| Cooling: |
Air Cool/ Water Cooling |
| Application: |
Biscuit |
| Customized: |
Customized |
Product Description

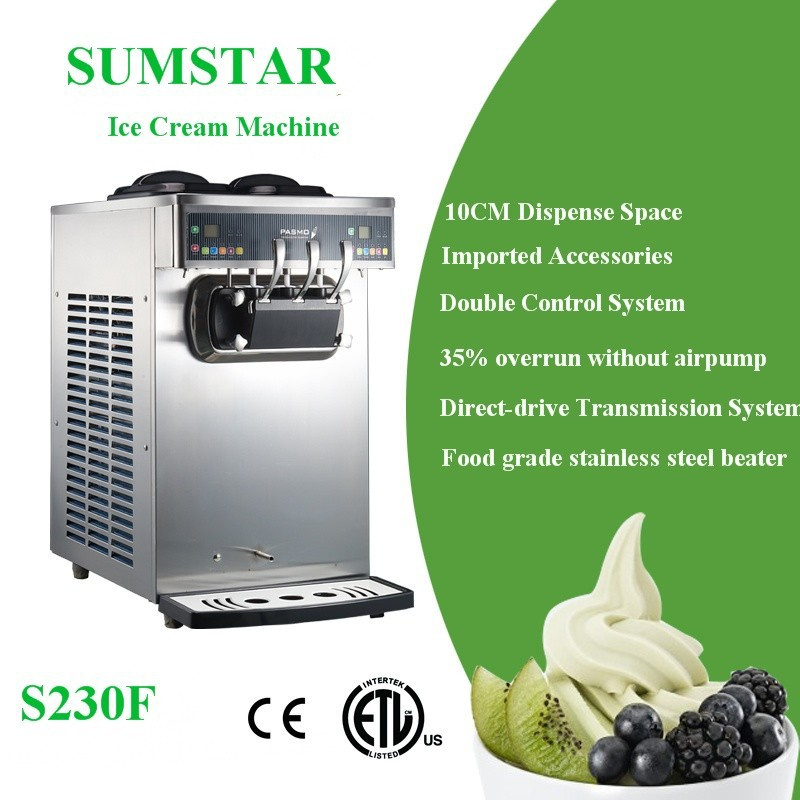

Pasmo S230 soft ice cream maker/Soft Serve Ice Cream Machine
The Newest Machine of Sumstar! ! ! !
Specifications of Pasmo S230 ice ceam maker:
1, CE,ETL,LFGB,ISO9001 certification
2, Both hopper and cylinder have Pre-cooling system
3, Mix-low alarm function
4, Rest time function
5, Counter
6, spring handle
7, Air cool/ Water cooling
Brife description of Pasmo S230 ice ceam maker:
Cylinder: 1.6L
Mix Hopper: 9.5L
Capacity: 35L/H
Refrigeration system: 3750BTU/hr, R404A
Pre-cooling system: 210BTU/hr, R134A
Power Type: 220V/50Hz/60Hz
Beater Motor: 550W
Installed Power: 3.2KW
Agitator Power: 15W
Fan Power: 130W
N. W: 150KG
G. W: 170KG
Product Size: 520*840*870mm
Carton Size: 870*640*1080mm
Detailed Description of Pasmo S230 ice ceam maker:
SUMSTAR series soft serve Ice-cream machines, which are based on the Australian advanced
Technology and newly developed by Sumstar, are suitable for all kinds of Ice-cream powder
And milk, can be applied to the Ice-cream shops, bars, bakeries, restaurants and other premises.
1. Beater - Food grade stainless steel beater
2. Silence- Mute function, suitable for all kinds of high-end places
3. Dispense space- 10CM dispense space, which can meet the needs of big cups or decoration of cakes
4. Control system- Upscale blue screen, easy to see the running status.
5. Agitator- The agitator in the hopper can keep the consistence of the ice cream liquid, work well with pre-cooling.
6. High expansion rate- with high-precision configuration, even without air pump, the overrun could be 40%.
7. Standby function- Standby function for both hopper and cylinder, ensure the safty and hygiene of the Ice-cream liquid.
8. Continuous discharging ability- Ensure continuous discharge even during the peak hours.
9. Mix low alarm function- Mix low alarm function for both hopper and cylinder, effectively lower the rate of frozen cylinder.
10. Imported core accessories-Select and use world-famous ASPERA compressor, DANFOSS expansion valve etc, effectively ensure the service life of the machines.
| Cylinder | 1.5L*2 |
| Hopper | 9.5L*2 |
| Machine Dimension(mm) | 520*840*870 |
| Packing Dimension(mm) | 870*640*1080 |
| Refrigeration system | 3750BTU/hr,R404A |
| Pre-cooling system | 210BTU/hr,R134a |
| Power | 3.2kw |
| Beater motor | 0.55kw |
| Power specification | 220V/50hz,60hz |
| Capacity | 30L/hr |
| N.W. | 150kg |
| G.W. | 170kg |
