| Prod Model: |
PS035H2-54NT-A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3.5 Inches |
| Resolution: |
320(RGB)*240 |
| Brightness: |
320CD/M2 |
| Pin Number: |
54 Pins |
| Driver IC: |
Nv3035 |
| Display Mode: |
Transmissive |
| Contrast Ratio: |
250 |
| Interface: |
8,16,18bits Parallel Bus Interface |
| LCD Drive Mode: |
Static Drive LCD Module |
| Digital LCD Module Type: |
Timing Module |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
8ms |
| Customized: |
Customized |
Product Description

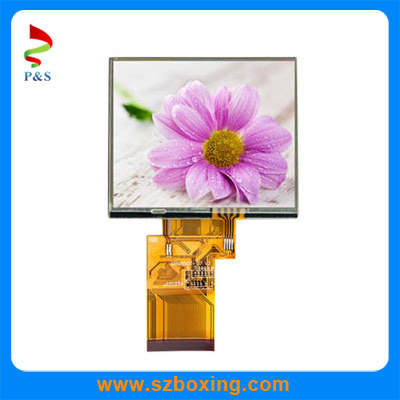

3.5inch TFT LCD Module use in Multidedia Player products
1. Machnical Specification
Size: 3.5inches
Outline dimension: 76.9(W)*63.9(H)*3.2(D) (mm)
Active area: 70.08× 52.56(mm)
Resolution: 320(RGB) *240
Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR ≥ 10) |
θ L |
Φ=180° |
– |
45 |
– |
degree |
|
θ R |
Φ=0° |
– |
45 |
– |
|
θ T |
Φ=90° |
– |
35 |
– |
|
θ B |
Φ=270° |
– |
15 |
– |
|
Response time |
T ON |
Normal
θ=Φ=0° |
– |
10 |
20 |
msec |
|
T OFF |
– |
20 |
30 |
msec |
|
Contrast ratio |
CR |
– |
250 |
– |
– |
|
Color Chromaticity |
W X |
0.28 |
0.31 |
0.33 |
– |
|
W Y |
0.32 |
0.35 |
0.37 |
– |
|
Luminance |
L |
– |
160 |
– |
cd/m2 |
