| Prod Model: |
JBZ-A12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jbz-A12: |
6, 8, 9, 12oz |
| 40-50PCS/Min: |
2800*1350*1760 |
| Process: |
Paper Machine |
| Usage: |
Packing Paper Machine |
| Type: |
Paper Folding Machine |
| Automatic Grade: |
Automatic |
| Computerized: |
No |
| Certification: |
ISO |
Product Description

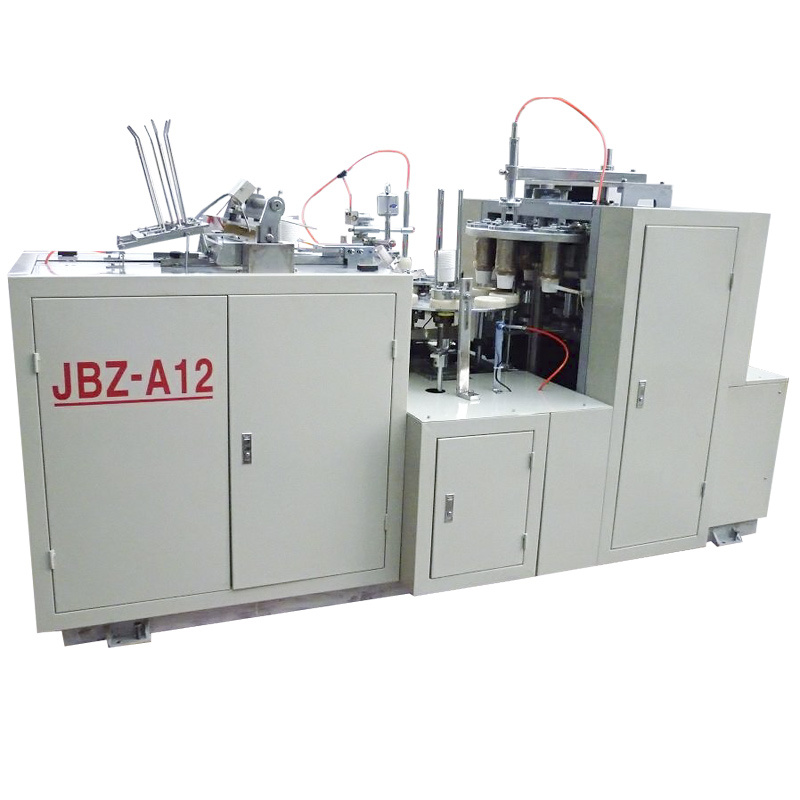

JBZ-A12 Single PE coated Paper cup machine
MAIN TECHNICAL PARAMETER:
Model JBZ-A12
production capacity: 45-55pcs/min
required paper: 150-250gsm one side PE coated paper
container capacities (A)50-90mm; (B)45-115mm; (C)35-64mm; (D)4.5-10mm
total power 3.8/8kw or 380v 50hz
weight 1300kg
overall dimensions 2600*1100*1700(L*W*H)MM
JBZ-A12 Single PE Coated Paper Cup Forming Machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and beverage. If you want to make two-side ( double) PE coated paper cups, we recommend you to use JBZ-L12, ultrasonic paper cup forming machine.
FEATURES:
1) The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %.
2) The shape of the head is oblate, which can seal the cups easily. It is much better than that is round.
3) The machine sends the bottom paper up to the cup automatically and adjusts itself because of a spring.
| Model | JBZ-A04 | JBZ-A12 | JBZ-A22 |
| Cup size | 2,4,4.5,6.5OZ for ice-cream | 6,8,9,12OZ | 16,22OZ |
| Raw Material | single PE coated paper |
| Top mouth diameter | 40-80 | 40-95 | 40-95 |
| Bottom diameter | 35-70 | 35-70 | 35-70 |
| Heigh | 30-60 | 50-120 | 80-175 |
| Bottom depth | ≥10 | ≥10 | ≥12 |
| Angle | 4-6° | 2-8° | 2-8° |
| Capacity | 40-50pcs/min | 35-45pcs/min |
| Power source | 380v 50 Hz (It' can be changed if customer require) |
|
|
| Total power | 5kw | 6kw |
| Weight | 1600KG |
| Package size(L*W*H) | 2800*1350*1760mm 730*600*1100mm | 3300*1450*2000mm 730*600*1100mm |
Our Company are not only Trading Company but also manufacturer factories.
We have our own machinery factory(LIZHONG) And Our Own Zipper&Slider factory.
Our Machinery facatory professionally makes the various disposable paper container making machines and products such as: Paper cup machine, Double wall paper cup machine, Paper plate/dish machine, Paper lunch box machine, Paper cake tray machine ect. We also make Cup Packing machines and Die Cutting machines.
Since company was founded, facing the fierce competitive market, we persist in the business idea of 'First Quality, Credit Orientation', carry out the enterprice internal management, make importance of sic-tech and information development to have the 'LIZHONG ' brand machines to win the market. The products are well distributed to more than 20 provinces and areas at home, and exported to many countries such As USA, UAE, Russia, Jordan, Syria, Pakistan. Israel, Palestine, Ukraine, Egypt, Algeria, Iran, INDA, South Africaect all over the world. The reliable products have won wide acceptance with first-class quality and perfect after-sales service at home and abroad.
Welcome to visit our Company and We are very willing to cooperate with the national and overseas customers to achieve brilliant achievement together.
