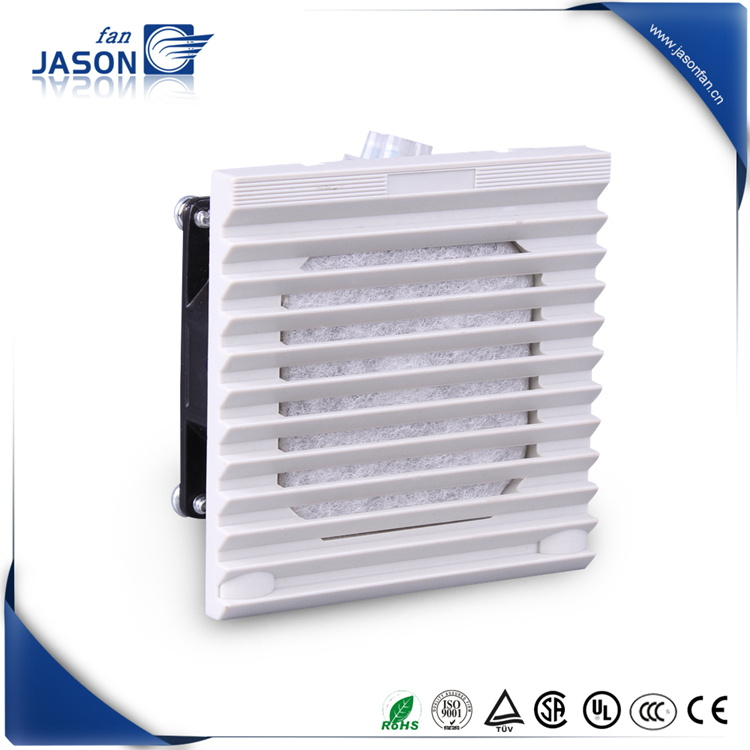

| Prod Model: |
FJK6620PB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Product Type: |
High Performance Industrial Cabinet Ventilation Fa |
| Warantee: |
One Year Guarantee Time |
| Usage: |
for Refrigerate, for Air Conditioner, for Manufa |
| Blade Material: |
Cast Iron |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Certification: |
CCC |
Product Description
Overview
- Dielectric withstanding voltage: AC 1800V at 0.5mA, 50/60HZ
- Insultaion Isolation Grade: F Protection Grade: IP 54
- Unit Weight: 324g
Material
- Fixed guard: Steel wire is finished with black oven backed painting and anti-corrosion treatment.
- Impeller: pressed from metal armor plate, impellers are installed on rotor by press. surface is finished by black paint and anti-corrosion treatment.
- Bearing Type: Maintain-free NSK ball bearing.
- Power Supply Connection: Wire connection or terminal box set.

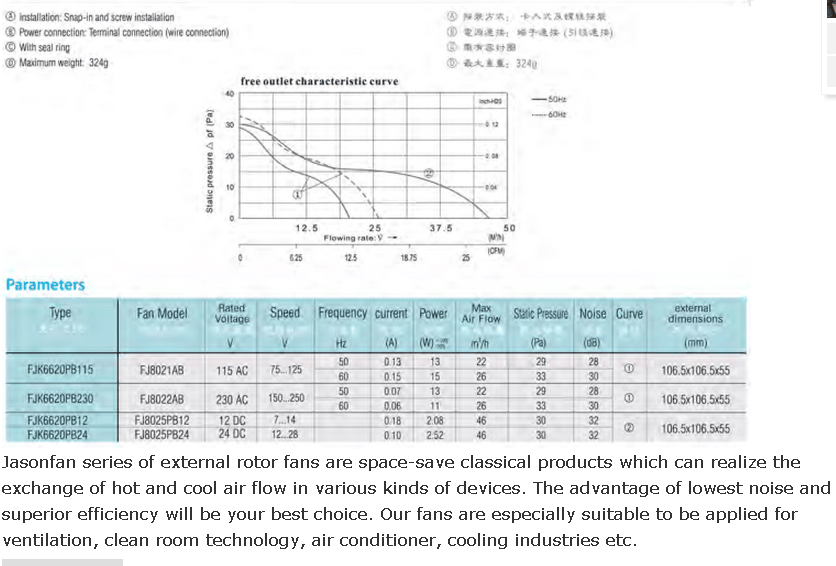

Specifications |
Category | Air filter fan |
| Type | FJK6620.PB |
| Rated Voltage | 230V |
Frequency | 50/60Hz |
Input Power | 11W-13W |
External Dimensions | 106.5*106.5*55 |
Max Air Flow | 22-26m³/H |
StaticPressure | 29Pa-33Pa |
Noise | 28-30dB |
Weight | 324g |
Dimensions
Rotation direction of blades : CCW seen from the front impellers
Power Connection: Lead or terminal box
Unit weight: 324g
We are specialized in developing and producing axial fan, centrifugal fan and air filter in different sizes with high quality in the cooling and ventilation field. All of our products are reliable and they can work in harsh circumstance efficiently. They are featured in High airflow, Low noise and Endure life.
Jason Fan takes charge in offering the newest techniques information and high-qualified design of products to all corporations. We took the spirit of this city and named our company Jason Fan.
Since our company came into existence, it develops a worldwide market with an unbelievable speed. Now clients from Australia, South Africa, Spain, Italy and other countries all designate to use our products. At the same time, we have set up a selling web-system which covered almost all main cities in China such as Beijing, Shanghai, Chengdu and so on.

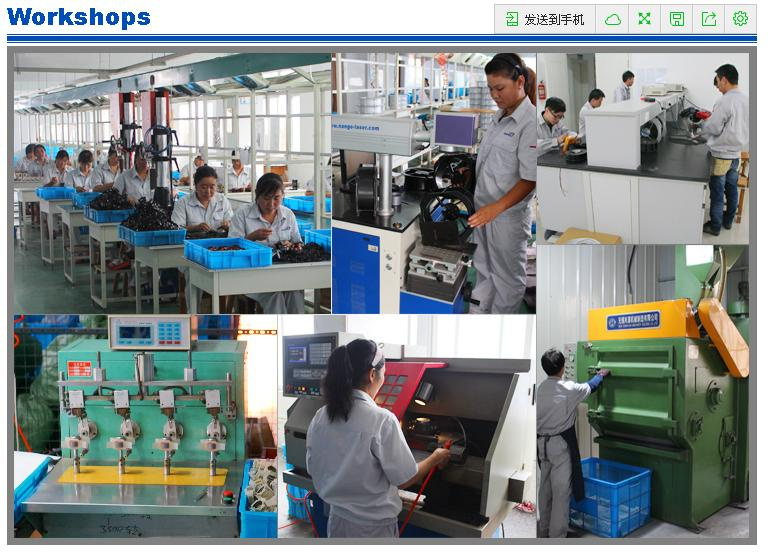

Jason Fan has already passed the ISO9001: 2000 national authentication. And its products have received CSA, RoHS, CE, CCC certificates in and out of China. As our company develops quickly and steadily, up to March 2006, we have owned three factories, covered almost 4, 000 square meters. At present, our monthly capability is more than 200, 000 units fans, 89% of which are produced by ourselves, including mold design, mold pouring, SMT disposal and all other assembling.
Devoting to the development of fan and insisting in high quality is the spirit and principle of our company. We will try our best to satisfy the most rigorous requires of the customers and to make Jason Fan a worldwide welcomed brand.
