| Prod Model: |
PAD35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
210mm X 94mm X 376mm |
| Weight: |
4.63kg |
| Colour: |
Black |
| Type: |
Professional Amplifier |
| Usage: |
AV |
| Tube Type: |
Transistor Amplifier |
| Function: |
Mixer Amplifier |
| Voltage: |
110~125V AC or 220~230 AC, 50/60Hz |
| Used For: |
Commercial or Professional |
Product Description
Product description

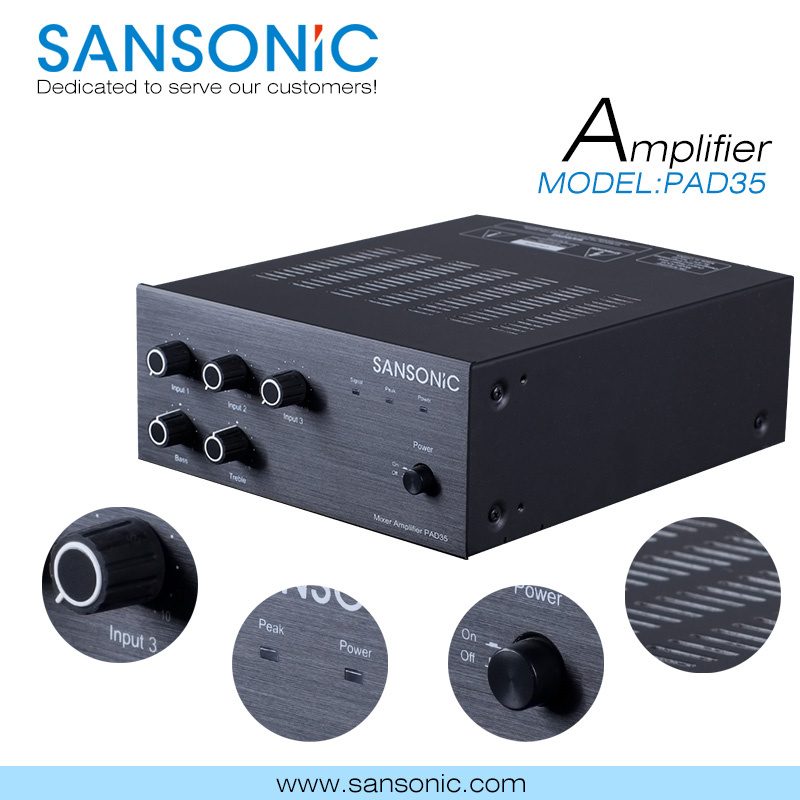

PAD-35 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 35W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 25v, 70v and 8ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. Unbalanced 1 TRS type line input, unbalanced 1 line TRS output
3. Balanced 1 × LR type line input, balanced 1 × LR type line output
4. The panel has volume adjustment knob, the back board has switch, turn off the switch when many equipment are connected to eliminate the circuit noise of earth wire
5. Build-in short circuit, overload and overheat automatic protection
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
| Physic and environment parameter |
|
| power supply | 110~125V AC or 220~230V AC,50/60Hz |
| Rated power output | 35W |
| THD | Less than 1% at 1 kHz |
| Frequency Response | 50~20,000Hz(±3dB) |
| volume control | Bass: ±10dB at 100Hz
Treble: ±10dB at 10 KHz |
| Output |
|
| direct output | High Impedance: 70V\25V screw terminal
Low Impedance: 8Ω screw terminal
|
| Liner output | 0dB, 600Ω Unbalanced, RCA pin jack |
| input |
|
| Liner input | 316mV (-10dBV) 10kΩ (optional 600Ω transformer available) balanced Phenix
|
MIC
| 0.316 ~ 3.16mV (-50 ~ -30dBV) balanced Phenix Input |
balanced Phenix
|
|
| AUX 1 | 316mV (10dBV) 10kΩ Unbalanced RCA Summing Line
|
| AUX 3: | 316mV (10dBV) 10kΩ Unbalanced RCA Summing Line |
Power supply :
| 110v~125V or 220~230V switch by the on/off button
|
| Port allocation |
|
| 1~5 line microphone balanced or linear balanced input, input sensibility:linear 316mV microphone 3.16mV; |
| 2\3 line RCA liner input, input sensibility: 316mV |
| 8Ω,25V,70V output terminal multi-impedance output |
Pre RCA output 1V 600Ω;
|
Line 1 2 RCA linear output 1V 600Ω;
|
Zone 2 linear output 1.5V 600Ωor 8Ω1.5W;
|
|
