| Prod Model: |
GT-WKR-118 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Packaged Rooftop Air Conditioner for Sale |
| Mounting: |
Floor Standing |
| Operating Voltage: |
380/400 VAC |
| Input Power: |
3n-380V |
| Frequency: |
60Hz |
| Color: |
White(According to Customer Requirements) |
| Compressor: |
Efficient Scroll Closed |
| Refrigerant: |
R22/R407c |
| Function: |
Cooling/Heating |
| Airflow: |
Cross Flow |
| Type: |
Floor Standing Air Conditioners |
| Capacity: |
48000-60000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
RoHS |
| China Energy Efficiency Standard: |
Level 5 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

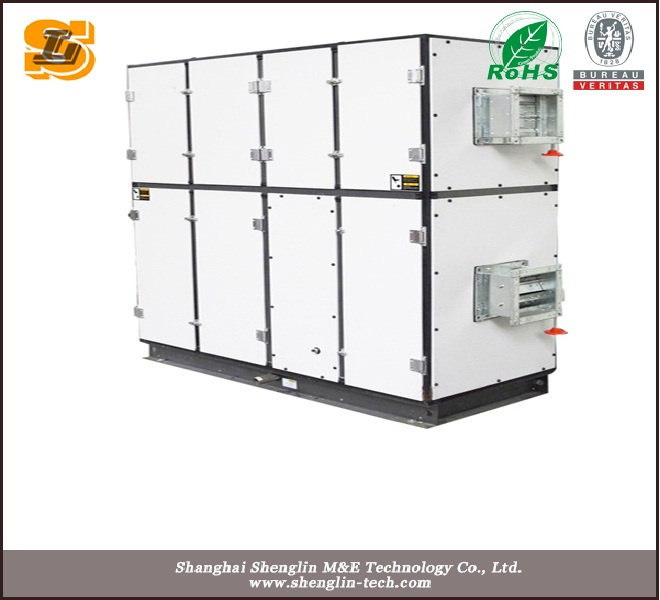

Packaged rooftop air conditioner for sale
Brief description:
1.Rooftop Air Conditioner/Rooftop package unit
2. R22, R407C
3. High static pressure duct type
4. Air conditioner
5. Low Noise Designair condition
1. It is packaged air conditioner which integrates condensing part, evaporating part & control part into a whole unit, firstly promoted & applied in South America, North Europe & Australia.
2. It is air cooled direct evaporation & expansion air conditioner, has no need on cooling water & chilled water system, dispenses with cooling tower/cooling water pump/chilled water pump, relative pipe work, electric control & terminal equipments, saves user investment.
3. It integrates evaporating part & condensing part into a whole unit which is installed outside to save indoor space, user will only need to install the duct, no need to connect refrigerant pipe work, it works under intellectual control without special care.
Application range:
It is mainly applied to factories, schools, auditoriums, warehouses, etc.
Feature
1. Cross flow plate heat exchanger adopt high quality seawater corrosion resistant hydrophilic aluminum foil as heat conductor, process by special technics, high heat transfer efficiency, easy to maintain, and long service life features, etc.
2. Module structure, different size of edges and superposed thickness to be choice.
3. No running components, and low maintenance cost.
4. Compact structure, small volume and suitable for various occasions.
Production technology:
1. The face of heat exchanger process with strengthened heat transfer stamping, increased the 10% heat transfer area.
2. Adopt stamping convex round as air passage support, guarantee the high strength and tightness of Channel, high fresh air and exhaust air bearing capability.
3. Cross channel between ourdoor air and exhaust air, separate by aluminium foil, entry edge and exit edge process with five layer crimping techniques, have higher edge intensity and more reliable seal.
4. All joints are airproofed by airproof glue, ensure that theheat exchanger has excellent air tightness.
| GT-WKR Series-Roof Top AH Specifiaction 2 |
| Model GT-WKR- | 40 | 50 | 60 | 70 | 90 | 110 | 120 |
|
| Specification | Cooling capacity 1* | kW | 42.0 | 52.8 | 61.2 | 70.2 | 87.5 | 105.1 | 122.5 |
| Heating capacity 2* | kW | 44.1 | 55.4 | 62.5 | 73.8 | 92.8 | 112.0 | 130.0 |
| Supply air 3* | m3/h | 7000 | 8600 | 10000 | 12000 | 14500 | 17000 | 20000 |
| Static pressure 3* | Pa | 300 | 300 | 300 | 350 | 350 | 400 | 400 |
| Noise 4* | dB(A) | 68 | 69 | 69 | 70 | 71 | 72 | 72 |
| Power | 3N-380V-50Hz |
| Total capacity | 17.24 | 20.72 | 23.0 | 29.76 | 39.1 | 44.66 | 51.58 |
| Color | White |
| ooling system | Compressor | Type | Efficient scroll closed |
| Quantity | 2 | 2 | 2 | 2 | 2 | 4 | 4 |
| Supply air fan | Type | Low noise centrifugal type |
| Capacity | kW | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | 7.5 |
| Evaporator | Type | Inner grooved copper tube and aluminum fin |
| Fin type 5* | Slotted fin hydrophilic aluminum fin |
| Condenser | Type | Inner grooved copper tube and aluminum fin |
| Fin type 5* | Rippled hydrophilic aluminum fin |
| Condenser fan | Type | Low noise axial type |
| Quantity | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Refrigerant | Refrigerant | R22/R407C |
| Refrigerant control | External balance type thermal expansion valve |
| Air filter | Initially effect plate filter |
| Dimensions | L | mm | 2200 | 2600 | 2600 | 3200 | 3200 | 6000 | 6000 |
| W | mm | 1800 | 2200 | 2200 | 2200 | 2200 | 2300 | 2300 |
| H | mm | 1520 | 1700 | 1700 | 1900 | 1900 | 2300 | 2300 |
| Weight | kg | 850 | 1100 | 1250 | 1400 | 1650 | 1850 | 2200 |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
