| Prod Model: |
PAP60H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-10 to +40 |
| Size(W*H*D): |
210mm X 93mm X 357mm |
| Color: |
Black |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Usage: |
Public |
| Sound Channel: |
Mono |
Product Description
Product description

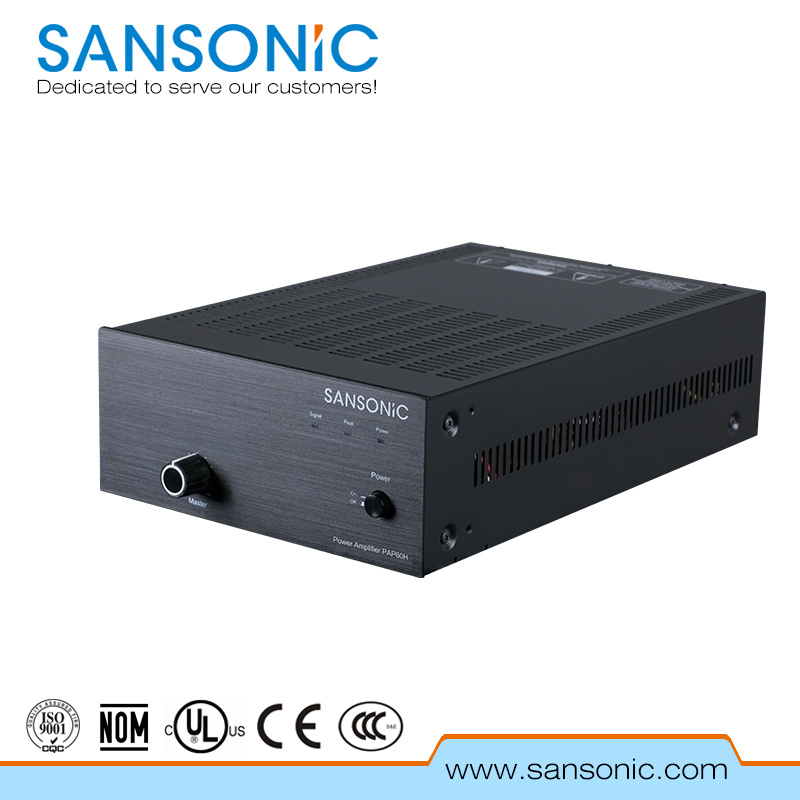

PAP 60H is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 60W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 70v and 40ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. Unbalanced 1 TRS type line input, unbalanced 1 line TRS output
3. Balanced 1 × LR type line input, balanced 1 × LR type line output
4. The panel has volume adjustment knob, the back board has switch, turn off the switch when many equipment are connected to eliminate the circuit noise of earth wire
5. Build-in short circuit, overload and overheat automatic protection
6. Two rated power output: Constant pressure output and Scheduled output resistance
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
| Specification |
| Modle | PAH60H |
| Power requirment | 110-125V AC or 220V-230V AC,50/60Hz |
| Rated power | 60W |
| Distortion | Less than 1% at 1 kHz |
| Frequency Response |
| 50~20,000Hz(±3dB) |
| Outputs | Liner output: | Unbalanced 600ohmRCA line |
| Direct output: | 60 watts RMS 4ohm direct coupled |
| 70.7V and 100V transformer coupled |
| Inputs: | Balanced Line Input | 500mV (–6dBV) 20kohm Balanced Line (Phoen)ix |
| Line In | 500mV (–6dBV) 20kohm Unbalanced (RCA) |
| Operating Temperature |
| -10 to +40 |
| Color | black |
| Dimensions(W*H*D): | 210mm x 94mm x 357mm |
| Weight | 6.58kg |
