| Prod Model: |
PAC60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size(W*H*D): |
420mm X 109mm X 357mm |
| Weight: |
9.4kg |
| Color: |
Black |
| Working Temperature: -: |
10to +4o |
| Type: |
Professional Amplifier |
| Function: |
Amplifier Combined |
| Voltage: |
AC 220V |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Usage: |
Commercial |
| Sound Channel: |
Mono |
Product Description
Product description

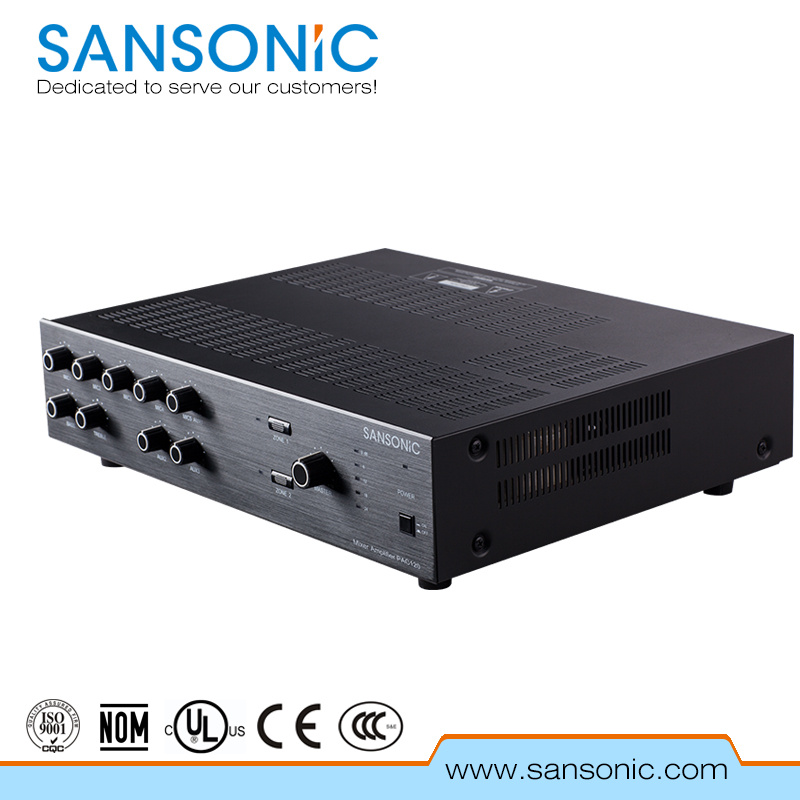

PAB60 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 60W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 4~16Ω And 100V are selectable for different speaker installation matching. Less than 1% at 1kHz, Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC 1~5 Canon port balanced input
3. AUX1 Canon port balanced input, AUSX2-3 line RCA liner input
4. The panel with volume adjustment knob
5.4~16Ω , 100V output terminal multi-impedance output
6. Pre RCA output
7. Line 1/2 liner and Zone 2 liner output
8. Signal lamp, peak lamp display
9. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
| Specification |
| Modle | PAC60 |
| Power requirment | 110-125V AC or 220V-230V AC,50/60Hz |
| Rated power | 60W |
| Distortion | Less than 1% at 1 kHz |
| Frequency Response | 50~20,000Hz(±3dB) |
| Output | Sound recording output | 0dB, 600ohm Unbalanced, RCA pin jack
|
| Liner output: 1,2 | 0dB, 600Ω Unbalanced, RCA pin jack
|
| Loudspeaker selection output: | Zone 2: 8Ω at 1.5 Watts & 600Ω line level at 1.5V
|
| Speaker output: | High Impedance:70V\25V screw terminal |
| Low Impedance: 8Ω screw terminal |
| Inputs | MIC 1-5: | -60dB, 600ohm electronically-balanced, combine type of XLR-3-31 equivalent and phone jack |
| AUX 1: | -20dB, 600Ω electronically-balanced, combine type of XLR-3-31 equivalent and phone jack |
| AUX 2-3 | -20dB, 10K ohm unbalanced RCA pin jack |
| Operating Temperature | -10 to +40 |
| Color | black |
| Dimensions(W*H*D): | Size(W*H*D) :420mm * 109mm * 13.5mm
|
| Weight | 9.4kg |
