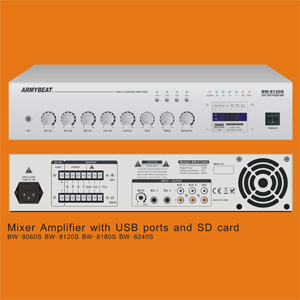

| Prod Model: |
BW-8060S BW-8120S BW-8180S BW-8240S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
AC 220V |
| Function: |
Amplifier Combined |
Product Description
FEATURE
. Three microphone inputs. Three auxiliary inputs, and one auxiliary output for link.
. Transformer isolated 100V, 70V and 4-16Ω Speaker ou-tputs.
. Muting function
. Individual volume control
. Low and high tone control
. A five-element LED level meter is provided for quick and easy visual monitoring of the sound level
. Short circuit & Overload protection & alarm
. Chime out prior to other inputs
. Individual distributor for 4 channel
. 24V DC Backup sources
. UBS ports, SD card slot
TECHNICAL SPECIFICATIONS
BW-8060S
Power source: 220V AC 50-60Hz/DC24V
Power consumption: 120W
Output: 60W
Frequency response: 100Hz-16000Hz± 3dB
DISTORTION(THD): <0.3% at 1kHz, 1/3 rated output power
Output: 4-16Ω , 70V, 100V
Aux Sensitivity: 250mV
Line Output: 700mV
Input: Mic 1, 2, 3: 600Ω , 6mV unbalanced Aux 1, 2, 3: 10kΩ , 250mV unbalanced
S/N ratio: Mic 1, 2, 3>66dB Aux 1, 2>70dB
Tone control: Bass: ± 10dB at 100Hz Treble: ± 10dB at 10kHz
Protection: AC Fuse, DC Voltage, Overload and short circuit
Muting function: 0-30dB
Dimensions(W*H*D): 430*88*360mm
AC Fuse: T1A
Net weight: 10.2kg
BW-8120S
Power source: 220V AC 50-60Hz/DC24V
Power consumption: 240W
Output: 120W
Frequency response: 100Hz-16000Hz± 3dB
DISTORTION(THD): <0.3% at 1kHz, 1/3 rated output power
Output: 4-16Ω , 70V, 100V
Aux Sensitivity: 250mV
Line Output: 700mV
Input: Mic 1, 2, 3: 600Ω , 6mV unbalanced Aux 1, 2, 3: 10kΩ , 250mV unbalanced
S/N ratio: Mic 1, 2, 3>66dB Aux 1, 2>70dB
Tone control: Bass: ± 10dB at 100Hz Treble: ± 10dB at 10kHz
Protection: AC Fuse, DC Voltage, Overload and short circuit
Muting function: 0-30dB
Dimensions(W*H*D): 430*88*360mm
AC Fuse: T3.15A
Net weight: 12.1kg
BW-8180S
Power source: 220V AC 50-60Hz/DC24V
Power consumption: 360W
Output: 180W
Frequency response: 100Hz-16000Hz± 3dB
DISTORTION(THD): <0.3% at 1kHz, 1/3 rated output power
Output: 4-16Ω , 70V, 100V
Aux Sensitivity: 250mV
Line Output: 700mV
Input: Mic 1, 2, 3: 600Ω , 6mV unbalanced Aux 1, 2, 3: 10kΩ , 250mV unbalanced
S/N ratio: Mic 1, 2, 3>66dB Aux 1, 2>70dB
Tone control: Bass: ± 10dB at 100Hz Treble: ± 10dB at 10kHz
Protection: AC Fuse, DC Voltage, Overload and short circuit
Muting function: 0-30dB
Dimensions(W*H*D): 430*88*360mm
AC Fuse: T3.15A
Net weight: 14.1kg
BW-8240S
Power source: 220V AC 50-60Hz/DC24V
Power consumption: 480W
Output: 2400W
Frequency response: 100Hz-16000Hz± 3dB
DISTORTION(THD): <0.3% at 1kHz, 1/3 rated output power
Output: 4-16Ω , 70V, 100V
Aux Sensitivity: 250mV
Line Output: 700mV
Input: Mic 1, 2, 3: 600Ω , 6mV unbalanced Aux 1, 2, 3: 10kΩ , 250mV unbalanced
S/N ratio: Mic 1, 2, 3>66dB Aux 1, 2>70dB
Tone control: Bass: ± 10dB at 100Hz Treble: ± 10dB at 10kHz
Protection: AC Fuse, DC Voltage, Overload and short circuit
Muting function: 0-30dB
Dimensions(W*H*D): 430*88*360mm
AC Fuse: T5A
Net weight: 16.2kg
