PA System High Power Amplifier Popular in Projects
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Material: |
Metal |
| Colour: |
Black |
| Frequency Response: |
60Hz~20kHz ± 1dB |
| Snr: |
>95dB |
| Type: |
Professional Amplifier |
| Usage: |
PA System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Output Number: |
1 |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
Product Description
PA System High Power Amplifier Popular In ProjectsThis power amplifier is specialized designed for the PA system, it`s a professional PA amplifier which could provide very good sound to user. Its excellent and stable performance make it popular into the projects.
Features:
1) 70V/100V constant voltage output; 4Ω~16Ω constant impedance output.
2) LED indicators for status display.
3) RCA socket and XLR jack for convenient link.
4) Complete protect function including DC protect, overheat protect and short circuit protect.Parameter| Model | CE-D360A | CE-D460A | CE-D660A | CE-D1000A | CE-D1500A | CE-D2000A |
| Rated Power | 360W | 460W | 660W | 1000W | 1500W | 2000W |
| Power Consumption | <0.53KW | <0.71KW | <1.0KW | <1.53KW | <2.3KW | <2.85KW |
| Net Weight | 14.5Kg | 17Kg | 19Kg | 36Kg | 41Kg | 47Kg |
| Gross Weight | 15.5Kg | 18Kg | 20Kg | 38Kg | 43Kg | 49Kg |
| Fuse | F5AI250V | F5AI250V | F6AI250V | F8AI250V | F10AI250V | F12AI250V |
| Dimension | 483*423*88mm (2U) | 483*500*132mm (3U) |
| Power Supply | AC200V ~ 240V/ 50Hz~60Hz |
| Sensitivity | 1000mV | 700mV |
| Line Output | 1.0V±10% |
| Frequency Response | 60Hz~20KHz ± 1dB | 60Hz~18KHz ± 1dB |
| THD | ≤1% (1/100 rated power output 60Hz~20KHz) | ≤1% (1/100 rated power output 60Hz~18KHz) |
| Output | 70V/100V constant voltage output; 4Ω~16Ω constant impedance output. |
| SNR | >95dB |
| Lowest EMF | ≤2% |
| Circuit | I | II |
| Protect | DC, Overheat, Short Circuit |
| Cooling Way | Speed Promise | Two grade speed adjustment |

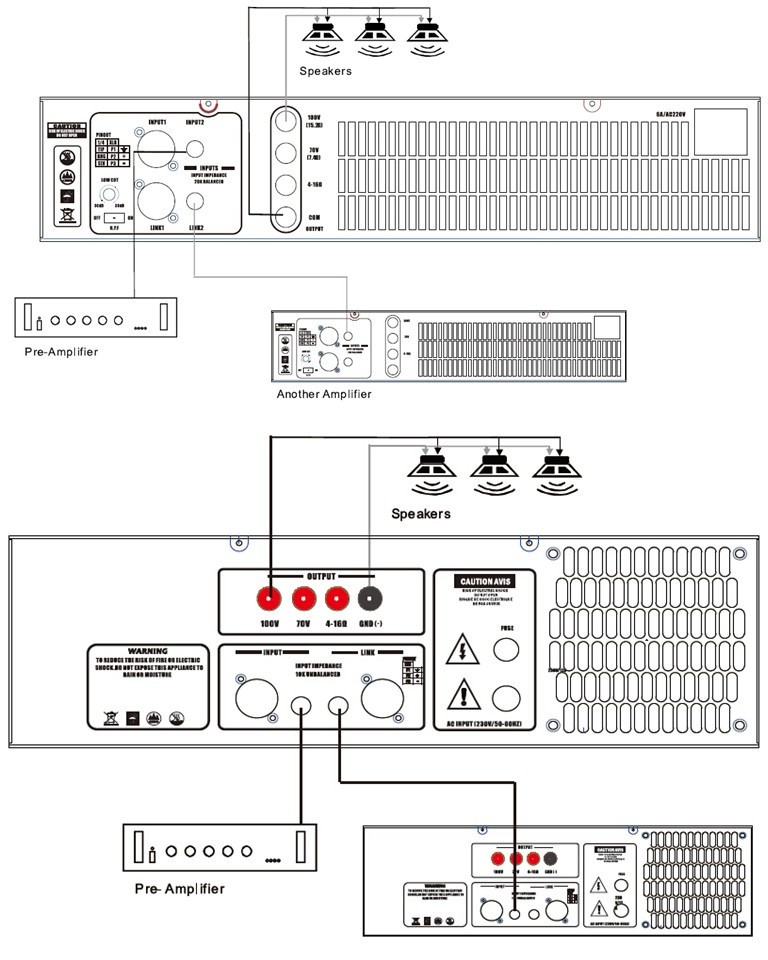

Connection Diagram
Advantages Of This DeviceWe use large current rectifier bridge to ensure the unobstructed supply current. Using independent shielding way in the high-voltage power part, able to reduce the interference to audio signal to the lowest level, and ensure the higher safety for electricity.
We use high performance TOSHIBA audion, make the system can bear larger current, with better dynamic and safety. Each audion has to be checked strictly, ensure the consistency of amplifier and minimum distortion.
We use the way of mainboard power-supply for the process the audio signal, able to make the voltage more stable, clear and thick, and sounds much better. Reasonable wiring can reduce the interference between channels and input-output. With superior signal transform feature, it has very low Total Harmonic Distortion (THD), Inter Modulation Distortion (IMD) and Transient Inter Modulation Distortion (TIMD).Why choose CEOPA?
1. OEM and ODM services available.
2. Excellent Quality, Best Price, Quick Response and Reliable Service, these are what we can provide you confidently.
3. All of our products are researched and designed by experienced engineers, advanced technology and exquisite workmanship, we have complete production lines for our products.
4. We focus on providing high-end products in mid-end prices, do our best to help you to win more market share.
5. Within the first 1 year warranty period, we'll be responsible for repair or replacement of any defected or damaged products free of charge. And for whole service lifetime, we'll be responsible for repair and only charge for the fee of components replacing. The damage by human action or force majeure shall not be contained in the warranty scope.
6. More advantages would be discovered as soon as you cooperate with us.
Informations
1. Trade Terms: EXW, FOB, CNF, CIF are available, Guangzhou Port.
2. MOQ: 1pc for CEOPA brand products, OEM & ODM products according to the actual conditions.
3. Delivery time: Within 3days for sample order and small quantity order, 30 to 45days for mass production.
4. Payment terms: 100% T/T before delivery (30% T/T deposit, balance 70% before shipment also available), Western Union, MoneyGram.
Shipment
FAQ
Q: Are you a factory or trading company?
A: We have our own 5000 sqm factory since 2004, with 3 advanced production lines and 2000 sqm warehouse. We have over 80 experienced workers, 10 experienced engineers and QC, complete warehouse management system and professional sales team.
Q: How is your warranty?
A: Within the first 1 year warranty period, we'll be responsible for repair or replacement for any defected or damaged products free of charge. And for whole service lifetime, we'll be responsible for repair and only charge for the fee of components replacing. The damage by human action or force majeure shall not be contained in the warranty scope.
Q: How could I receive the goods?
A: For sample order or small quantity of goods, we suggest to deliver through express such as DHL, FedEx, TNT. For urgent order but more goods, we suggest to deliver by air transportation. For large batch order, we suggest to deliver by ocean transportation. No matter which way you choose, our partner, one of the best forwarders in Guangzhou would provide you the best services with best price.
Q: Can I make the products with my own logo?
A: Yes, we could provide OEM services to you, make your logo on the products and cartons, we have rich experience in this. Moreover, the quality would be as well as our own CEOPA brand products.
Q: I have my own idea to the products, could you help and produce my own products?
A: Of course, ODM service is available to us. Just tell us your idea and demand, our experienced engineer would customize and develop the device for you. Without your authorization, we would not tell others we are your supplier, and we would not sell your products with our own brand.
Q: I want to work with you, but I`m not familiar with your products, how could I do?
A: We have professional engineers who could design a complete and perfect solution with clear connection diagram for you, with detail introduction to the products, you would find it easy working with us.For more information, please feel free to contact us: Guangzhou Panyu Ceopa Electronic Factory
