| Prod Model: |
H-15TA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
ABS,Ral7042 |
| Load Rating Power: |
15W |
| Transformer Tapping: |
15W,7.5W,3.75W,1.85W |
| Protection Level: |
IP56 |
| Special Feature: |
Wireless, Portable, Mini |
| Amplification Type: |
Passive |
| Speaker Material: |
Plastic |
| Usage: |
TV |
| Structure: |
Floorstanding Speaker |
| SNR: |
<70dB |
| Adjusting Method: |
Transforma |
| Sound Channel: |
1 |
| Function: |
100V |
Product Description

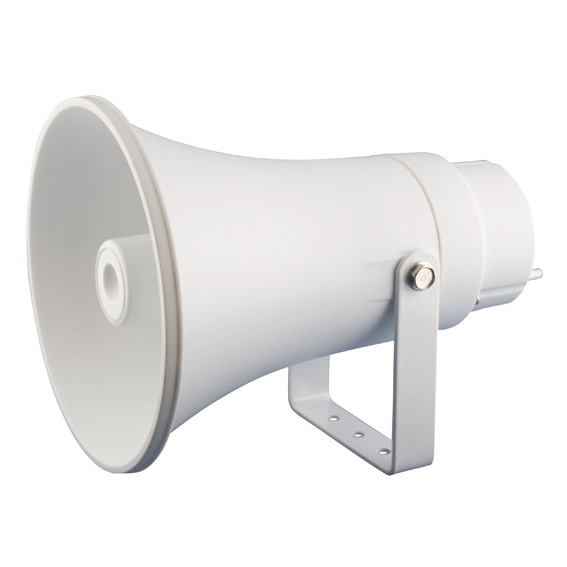

PA Horn Speaker CE Certified H-10TA H-15TA H-30TA IP56 protection PA horn speaker
Description
Very stable and attractive horn speaker with integrated 100V matching transformer. This series is of high-quality plastic and therefore shock- and scratch-resistant.
The horn speakers H-10TA,H-15TA and H-30TA in light grey. The high protectionstandard IP56 and the high sound pressurelevel of the horn speakers are ideal for industrialapplications.
Please consider the following features:
The complete construction of the horn speakers series has the ultimate protection grade, IP 56.
The 2-pole connection cable (flexible hose line) is led through a waterproof PG-screw joint .
The 6-step impedance is switchable with a screwdriver at the rear side of the unit.
The horn speaker system is constructed to give an outstanding high sound pressure and best sound quality reproduction.
The sound pressure is dependent on the different models and the particular impedance change-over.
| Specifications/Model Name | H-10TA | H-15TA | H-30TA |
| Load Rating Power(Watts) | 10 | 15 | 30 |
| Nominal impedance | 20 ohms |
| Frequency Respone(Hz) | 400-10K |
| SPL(dB@1W/M) | 105 | 106 | 108 |
| Input Method | 100V |
| Transformer Tapping(@100V) | 10W 5W 2.5W 1.25W | 15W 7.5W 3.75W 1.85W | 30W 15W 7.5W 3.75W |
| Horn Diameter(mm) | 143 | 208 | 240 |
| Total Length(mm) | 210 | 273 | 303 |
| Materials,Colour | ABS,RAL7042 |
| Protection Level | IP56
|
