| Prod Model: |

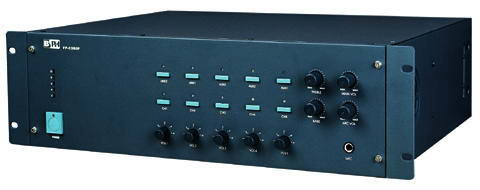

VP-C240P / VP-C350P / VP-C500P |
Product Description
BSPH Public address combined amplifiers with built-in 5 zone speaker selectors can provide a compact solution to a versatile PA system, With power ratings from 240W to 500W, these combined amplifiers feature three MIC inputs, three AUX level inputs, two line inputs to mix with MIC2 and MIC3, and two EMC audio signal (priority level) inputs. With the bult-in speaker selector, it's easy to configure different-scale systems to meet different demands.
Muting function is available for MIC1 input to override BGM in case of paging and emergency notification. Individual gain controls are provided for MIC and AUX inputs. Bass and treble controls are provided for overall tone control. 4-16 ohms, 70V, 100V speaker outputs are provided, extensive protention against short-circuit, clipping and over-temperature.
* Three MIC inputs
* Two AUX inputs
* Two EMC audio signal (priority) inputs
* MIC1 has the highest priority over all other inputs
* Individual gain controls for MIC and AUX
* Bass and treble controls
* 5-zone speaker selector
* 10V, 20V, 35V, 60V, 100V speaker outputs for choice
* Optional rack-mount kit
| Model NO. | VP-C240P | VP-C350P | VP -C500P |
| Rated power | 240W | 350W | 500W |
| Power consuption | 410W | 560W | 850W |
| Speaker Output | 10V,20V,35V,60V,100V speaker outputs for choice |
| Input | MIC1, 2, 3: 600 ohms 2.0mV; AUX1, 2, 3: 15Kohms 150mV unbalanced |
| THD | < 0.1% at 1KHZ, 1/3 rated power |
| S/N ratio | MIC1, 2, 3: 66db; AUX 1, 2: 70db |
| Controls | Individual gain controls, bass: +10db at 100HZ; Treble: +10db at 15KHZ |
| Protection | AC fuse, over-current, over-load, over-temperature |
| Muting function | MIC1 overrides other input signals with 0-30 db attenuation |
| Power requirements | AC 220V 10A, 10 channels Total power output: 4.5kW |
| Working condition | Temperature: -10—55ºCrelative humidity: < 95% |
| Frequency response | 100HZ-20KHZ |
| Dismension | 485.6x364.5x132mm |
| Finish | Panel: Steel plate, Black, frosted; Case: Steel plate, black. |
Foshan Langdu Intelligent Appliance Technology Co., Ltd. has been striving to be one of the leading international brand of Public Address Systems & Equipments since its establishment. Foshan Langdu Intelligent Appliance Technology Co., Ltd. has rich experience of 6 Years in the field of PA system. The aim of the company is to offer best designed, high-quality products at reasonable price. Advanced technology, careful selection of designs, component, and workmanship ensure reliable quality of BSPH products. Continuous research and innovative design push BSPH to continuous development.
In the last to summary up, BSPH is one of the leading Exporter & Manufacturer in China equipped with valued experience, expert in manufacturing goods as per international standard & demand, at most competitive rate/price.
BSPH products range cover almost all kinds of PA apparatus to meet all requirements for public address. OEM and ODM are welcome, the main BSPH products are listed below:
* SX-850 Large & Intelligent PA Management System
* SX-450 Typical & Intelligent PA Management System
* Intelligent PA system and Equipment
* Digital kindergarten PA Management System
* Digital School PA Management system
* Family Information PA Management System
* Shops and Office Management Central Centralized Control Platform
* School Management Central Centralized Control Platform
* Hotel Management Central Centralized Control Platform
* Urban Light Rail (Metro) PA Management System
