| Prod Model: |
ESD-iF8 SMD 3in1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ph: |
8mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP43 |
| Pixel Pitch: |
8mm |
| Display Function: |
Video, Image, Text, Flash, Pictures Display etc |
| System Operating Platform: |
Win98, Win2000, Win XP |
| Certification: |
CE, FCC, RoHS, ETL |
Product Description

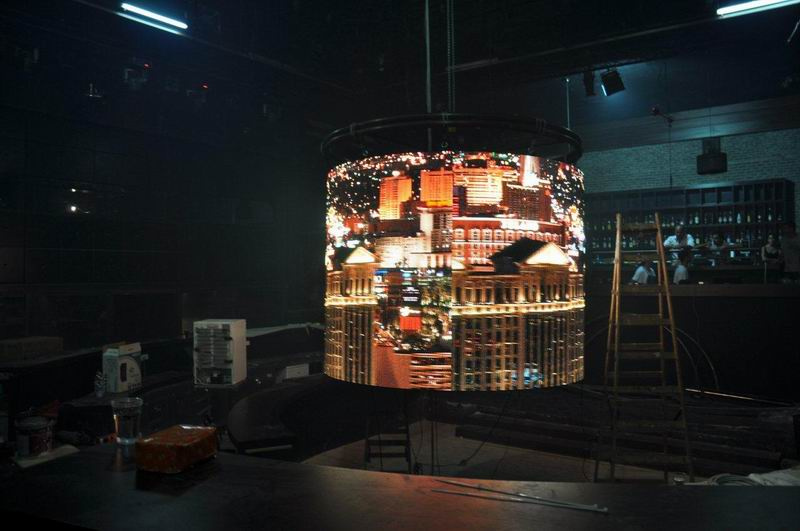

LED display
Indoor full color advertising LED display, with high definition and brightness, good for advertising media, popular for event and rental use and stage background.
pH8 indoor Full color LED Display Screen with 1.07billion colors. There are a few kinds of driving modes, such as 1/8 scanning, 1/4 scanning, and static constan. PLCC-4 SMD and chip 0603 are used. With SMD encapsulation, the brightness reaches 1, 200nits. The pixel pitch for pH8 is 6mm, with 15, 625dots per sqm. The rate of blind spot is less than 0.0001, and the gap among pixel is less than 0.2mm, among unit modules less than 0.4mm. Indoor LED Display Screen pH8mm is with good visual effect, easy to install and disassemble and could receive various video signals, so it's greatly fit for small concerts, parties, indoor live broadcast of Stadiums and indoor advertising, etc.
|
P8mm SMD 3in1 indoor full color LED display parameters |
|
(1) Construction Description |
Each pixel contain 1 red 1 pure green 1 pure blue, total 3 pcs LED
Pitch 8mm, resolution 15, 625 dots/sq. m |
|
(2) Screen Body Technical Parameter |
|
1 |
Screen body area |
Size can be customized |
|
2 |
Cabinet |
Pixel: 128dots× 96dots=12, 288dots |
|
Size: 1024mm× 768mm |
|
3 |
Display brightness |
1, 100 CD/sq. m |
|
4 |
Brightness adjustment |
256 grade automatic, 8 grade manual, |
|
5 |
Drive Mode |
1/8scan |
|
6 |
View Angle |
120 degrees(left and right view angle) |
|
7 |
Mix. View Distance |
8M |
|
8 |
Grey Scale |
256 grades, |
|
9 |
Display Colors |
≥ 16M |
|
10 |
Frame rate |
60Hz |
|
11 |
Refresh rate |
360HZ(Guarantee that the picture will not tingle when the pick up camera is kinescoping) |
|
12 |
Control Mode |
To be synchronized with computer monitor |
|
13 |
Data Transmission |
Parallel RS422 mode |
|
14 |
Screen Lifespan |
> 100, 000 hours |
|
15 |
Blind Spot Rate |
≤ 0.0002 |
|
16 |
Operating Voltage |
AC100V± 240V 50-60HZ |
|
17 |
Screen Body Power Consumption |
Max: 800w/sq. m, Average: 400w/sq. m |
|
18 |
Color Temperature |
6, 500K± 500 |
|
19 |
Screen body weight |
Less than 60KG/ sq. m(do not include outer frame) |
|
20 |
Screen body volume |
0.12CBM/cabinet |
|
21 |
Control Distance |
100 meters(without relay)(optical fiber transmission 500M-10, 000M) |
|
22 |
System Working Environment
Temperature |
-20 - +60degree |
|
23 |
System Working environment
humidity |
10%-95%RH |
|
24 |
Waterproof |
IP43 |
|
25 |
System Operating Platform |
WINDOWS(WIN98, WIN2000, WIN XP) friendly interface, Keep the interface for the secondary development |
