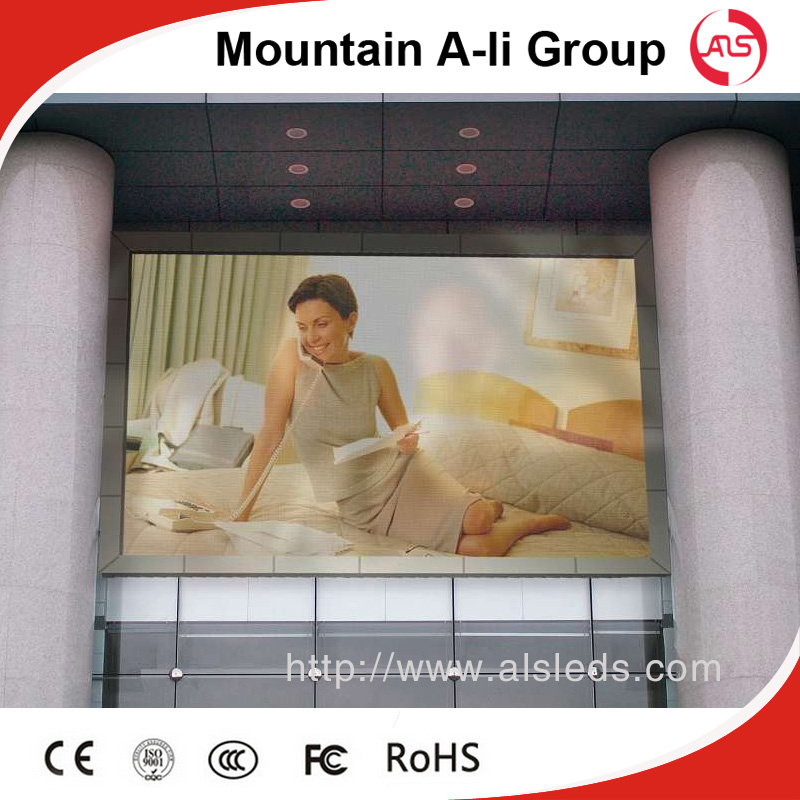

P8 Outdoor Surface Mounted LED Display

P8 Outdoor Surface Mounted LED Display
Price: US $ 650-750/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: P8 Outdoor Surface Mounted LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 320mm*160mm
Package Mode: SMD2121
Max Power Consumption: 25W
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Display Type: LED Video Display
Application: Advertising
Certification: CCC
Average Power Consumption: 400W/H
Pixel Density: 15625dots/M2
Scanning Mode: 1/5scan

Product Description

About us
We provide Indoor LED Screen, Outdoor LED Screen, and more.
Shenzhen Mountain ALi Group Electronic Technology Co., LTD was established in 2000s. Has developed to China's largest LED diode factory. With the registered capital of one hundred million RMB, Mountain ALi Group then was founded. A subsidiary, Shenzhen Sancai Photoelectric Co., Ltd was established in the same year, mainly developing and manufacturing LED Full Color Display. During 2012, it is developing rapidly, growing up fast. We have opened many suboffice in different provinces and cities, such as Zhengzhou, Shandong, Xi'an, Shenyang, Chengdu, Beijing, Jiangsu, Xinjiang etc. Shenzhen Mountain ALi Group focus on service series of specialized market advertising and brand, stadiums, events and entertainment, provide them with different patterns of led application product solutions. Now our products are widely used in dozens of countries worldwide, continue to emerge in the international renowned events and occasions, capture and focus the imagination of millions of viewers.

P8 screen advertising led display techincal parameters
Unit ModuleItem parameter
Model P8 surface mounted module
Module size 320mm*160mm  /  256mm*128mm
Pixel Pitch8mm
Pixel Density15625dots/m2
Pixel Configuration 1R1G1B 3 in 1
Package modeSMD2121
Module Resolution 40dots(W)*20dots(H) / 32dots(W)*16dots(H)
Max power consumption 25w
Module Thickness2.8cm
Module Weight 0.55kg
Driving MethodConstant Current Driving
Scan Method1/5scan  / 1/4scan
Interface WayHUB75B
Brightness≥6200cd/m2  /  ≥6500cd/m2
Unit ModuleCabinet size 640mmx 640mm
Quantity of Module8
Power supply Mode 5V/40A  /  5V/60A
cabinet resolution 80dots *80dots
Optimal Viewing Distance8M-50M
Optimal Viewing angle160°(W)120°(H)
Enviroment TemperatureStorage :-35ºC-+85ºC
work :-20ºC-+50ºC
PowerRelative Humidity10%-95%
Operating Voltage AC220V±10%
Average power 400W/H
Max power Consumption ≤800W/m2
Current ≤20mA (Single LED )
Control systemCPUPentium4 or above P4 or above
Operate systemWIN98/2000/NT/XP
Control ModeSynchronization with PC
Main technical parameter Driving DeviceIC Constant current driving
Refresh Rate≥600HZ
Gray/ColorRGB each 256 grade, can display 16.7M clolor
MTBF≥9000hours
Power SwitchAutomatic Switch
Display Mode 800*600/1024*768/1280*900

HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
