| Prod Model: |
LW-FO 8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Waterproof LED Panel: |
Permanent Installation |
| RGB: |
SMD3535 |
| Good Color: |
Save-Energy |
| Module Size(mm): |
256X128X17 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625 |
Product Description
Product Description
1,Standardized size and light&thin structure: adopts strenght metal material, with pretty rigidity, light weight and high accuracy.High picture quality, average uniformity 5%, max uniformity 1%; high refresh frequency and gray level. Short lead time.
2,High load-bearing capability, fast assembly, free shaping, no deformation under high temperature and low temperature working surrounding.
3,Low heat, low noise, low radiation: through the advanced structure in-conducting designing, keep very silent working status. EMC passed
4,Adopts strong electricity hot-plugs, no Spark discharge during hot-plug in and hot-plug out. Absolutely waterproof, tamper-proof and anti-corrosion
5,Module easy maitenance, no light reflection from mask, anti-UVR and ensure no fading for 5 years. Contrast ratio: 1000:1; Flatness of cabinets: <0.5mm. Power effective ratio more than 88%.
6,Double backup data can ensures that the screen can work in high efficiency, stability, security situation.
Thanks for your time, welcome to contact us for more details.
Item |

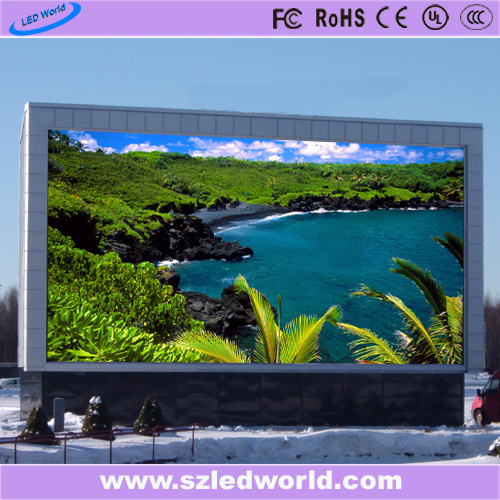

Outdoor SMD LED Display Series |
| Pixel Pitch(mm) | 8mm | 10mm |
| Pixel density(dot/m2) | 15625 | 10000 |
| LED Type | SMD3535 |
| Viewing angle: | H:120°,V:120° |
| Brightness(nits) | ≥5000 | ≥4000 |
| Drive Method | 14 | 14 |
| Color Depth(nits) | 16384 |
| Refresh Rate(Hz) | ≥1920 |
| Module Size(mm) | 256×128×17 | 160×160×17 |
| Cabinet Size(mm) | 1024×768×137 | 960×960×137 |
| Cabinet Material | Iron Sheet Metal |
| Cabinet weight(kg) | 43 | 50 |
| Voltage | 110/240V |
| Average.power(W / m2) | 300 | 250 |
| Max.power(W / m2) | 900 | 750 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |
