| Prod Model: |
p8 outdoor led display |
| Markets: |
Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320mm*160mm / 256mm*128mm |
| Cabinet Size: |
640mmx 640mm |
| Pixel Configuration: |
1r1g1b 3 in 1 |
| Package Mode: |
SMD2121 |
| Module Weight: |
0.55kg |
| Control Mode: |
Synchronization with PC |
| Certificates: |
CE/ RoHS /ISO / CCC / FC |
| Delivery Time: |
7-10working Days |
| Warranty: |
2 Years |
| Other: |
Low Energy Consumption ,Long Lifespan , Less Maint |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC,ISO9001,EMC,IP65 |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625dots/M2 |
Product Description
P8 screen adversting 2 years warranty ,low energy consumption ,long lifespan ,less maintenance performance .
| SMD P8 Outdoor LED Display for Advertising display techincal parameters |
| Unit Module | Item | parameter |
| Model | P8 surface mounted module |
| Module size | 320mm*160mm / 256mm*128mm |
| Pixel Pitch | 8mm |
| Pixel Density | 15625dots/m2 |
| Pixel Configuration | 1R1G1B 3 in 1 |
| Package mode | SMD2121 |
| Module Resolution | 40dots(W)*20dots(H) / 32dots(W)*16dots(H) |
| Max power consumption | 25w |
| Module Thickness | 2.8cm |
| Module Weight | 0.55kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/5scan / 1/4scan |
| Interface Way | HUB75B |
| Brightness | ≥6200cd/m2 / ≥6500cd/m2 |
| Unit Module | Cabinet size | 640mmx 640mm |
| Quantity of Module | 8 |
| Power supply Mode | 5V/40A / 5V/60A |
| cabinet resolution | 80dots *80dots |
| Optimal Viewing Distance | 8M-50M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% |
| Average power | 400W/H |
| Max power Consumption | ≤800W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |

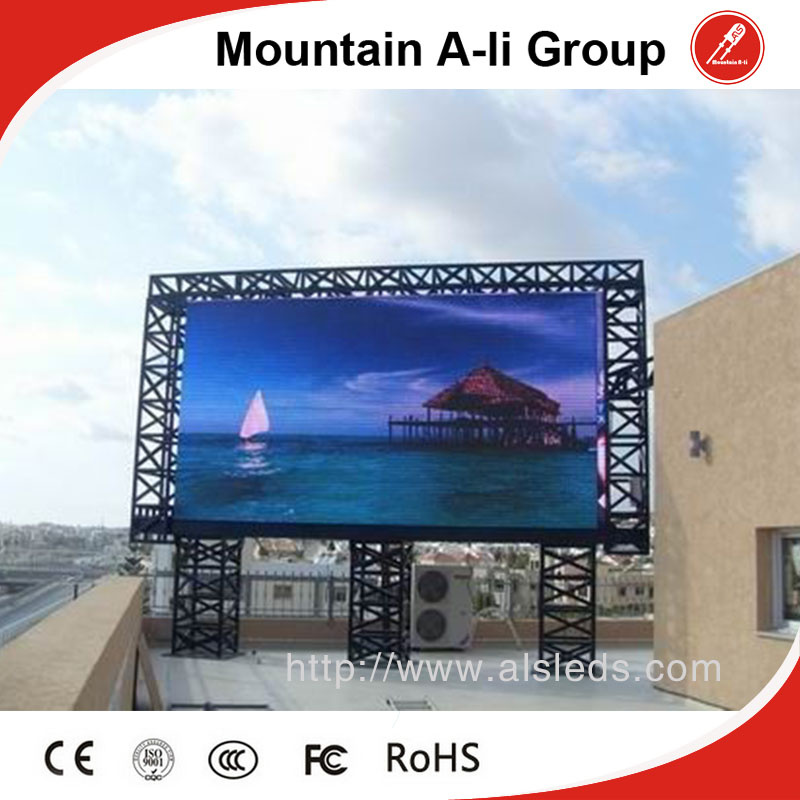

| SMD P8 Outdoor LED Display for Advertising display |

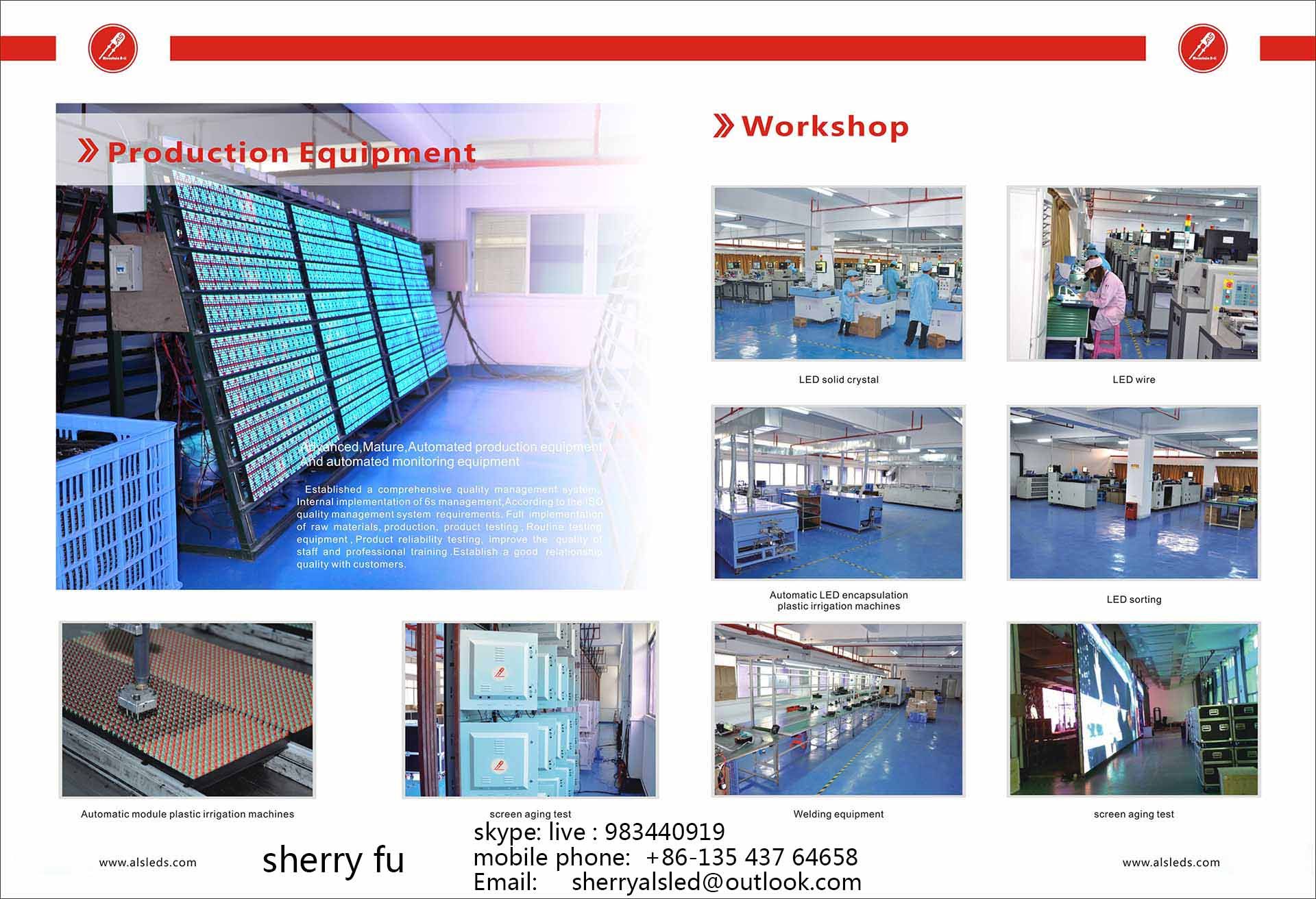

Workshop :
certificates :
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
