| Prod Model: |
LD-8.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
500mmx500mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Certification: |
UL |
| Pixel Pitch: |
8.928 |
| IP Rating: |
IP65 |
| Pixel Density: |
12544DOT/M2 |
| System Operating Platform: |
Windows All |
Product Description

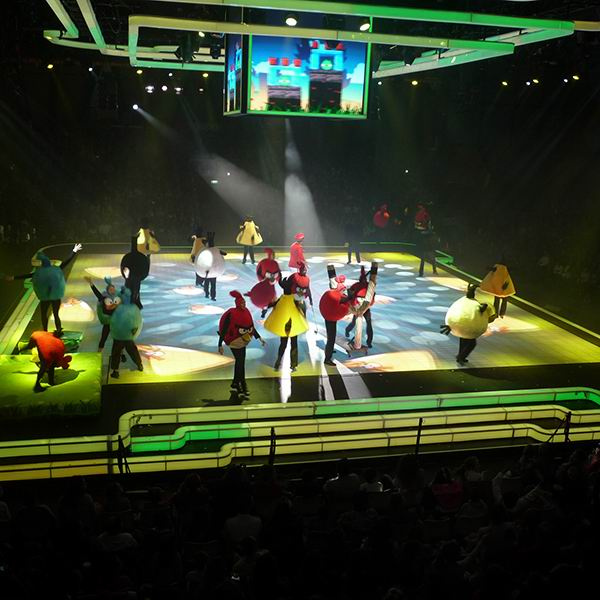

FLOOR DISPLAY
1. Floor full color LED display Could be used indoor and outdoor environment such as hall, exhibition room, stage, party and so on, the weight capacity is for 1.5 ton, equal to a car. The performance of water-proof is good, and with high image fidelity, good evenness, brightness and large view angle.
Features of the product:
1) Could be used indoor and outdoor, the weight capacity is for 1.5 tons, equal to a car.
2) High and adjustable brightness can meet the demands of the changing requirement of customer in different environments.
3) No mosaic due to excellent flatness and nice uniformity of light-emitting
4) Wide viewing angles and the horizontal angle can reach 120° The images effect will not change largely in the range.
5)The performance of water-proof is good, and with high image fidelity, good evenness, brightness and large view angle.
6) Single-lamp maintenance with low cost.
7) Environmental-friendly and energy-saving.
Parameter
P50 full color floor display
1. LED lamp
Encapsulation Form: R: DIP 565 G: DIP 565 B: DIP 565
Wave length: R: 625± 2.5nm G: 520± 2.5nm B: 470± 2.5nm
Brightness: R: 320mcd G: 750mcd B: 270mcd
2. LED module
Pixel pitch: 50mm
Pixel configuration: 2R2G2B
Resolution: 4dots(W)*4dots(H)
Size: 200mm(W)*200mm(H)
Weight: 1.11KG
3. LED display
Pixel density: 400dots/m2
Brightness: 700CD/m2
Driving mode: Constant current
Scanning mode: Static
Max power consumption: 120W
Average power consumption: 48W
Grey grade: 10bits
Colors: 1024 levels per color
Frame frequency: 60Hz
Refresh frequency: ≥ 400Hz
Brightness adjustment: 256 levels automatical
Color temperature: 6500K~9300K adjustable
Environmental temperature: Storing: -35deg~+85deg working: -20deg~+50deg
Input voltage: AC 110V/220V± 10%
Horizontal view angle: 120deg;
Vertical view angle: 120deg;
Ingress protection: Front: IP65 Rear: IP65
File format supported: TXT, JPEG, MPEG, BMP, SWF, GIF, DAT etc.
Best view distance: 50m~275m
Control distance: LAN wire: 100m muti-model fiber: ≤ 500m single-model fiber: ≤ 15km
MTBF: 10000 hours
Life span: 100000 hours
|
The parameters of LED mesh curtain for rental outdoor use |
|
Pixel Pitch |
P8.93 |
P10.42 |
P12.5 |
P15.625 |
P18.75 |
|
LED lamp type |
SMD3535 (1R1G1B) |
SMD3535 (1R1G1B) |
SMD3535 (1R1G1B) |
SMD3535 (1R1G1B) |
SMD3535 (1R1G1B) |
|
Pixel density |
12544 dots/m 2 |
9216 dots/m 2 |
6400 dots/m 2 |
4096 dots/m 2 |
2844 dots/m 2 |
|
Module size |
250*250mm |
250*250mm |
250*250mm |
250*250mm |
150*300mm |
|
Module pixels(W*H) |
28*28 dots |
24*24 dots |
20*20 dots |
16*16 dots |
8*16 dots |
|
Driving Method |
1/7 scan |
1/4 scan |
1/5 scan |
1/4 scan |
1/4 scan |
|
Refresh Rate |
≥2000Hz |
≥2500Hz |
≥3000Hz |
≥3000Hz |
≥3000Hz |
|
Brightness |
≥4000CD/m 2 |
≥4200CD/m 2 |
≥4100CD/m 2 |
≥4200CD/m 2 |
≥3000CD/m 2 |
|
Max.Power Consumption |
1000w/m 2 |
600w/m 2 |
940w/m 2 |
520w/m 2 |
850w/m 2 |
|
Average power consumption |
330w/m 2 |
200w/m 2 |
300w/m 2 |
175w/m 2 |
280w/m 2 |
|
Cabinet Size(mm) |
500*1000*55 |
500*1000*55 |
500*1000*55 |
500*1000*55 |
300*900*55 |
|
Cabinet Material |
Aluminum Profiles |
Aluminum Profiles |
Aluminum Profiles |
Aluminum Profiles |
Aluminum Profiles |
The weight of single cabinet
|
